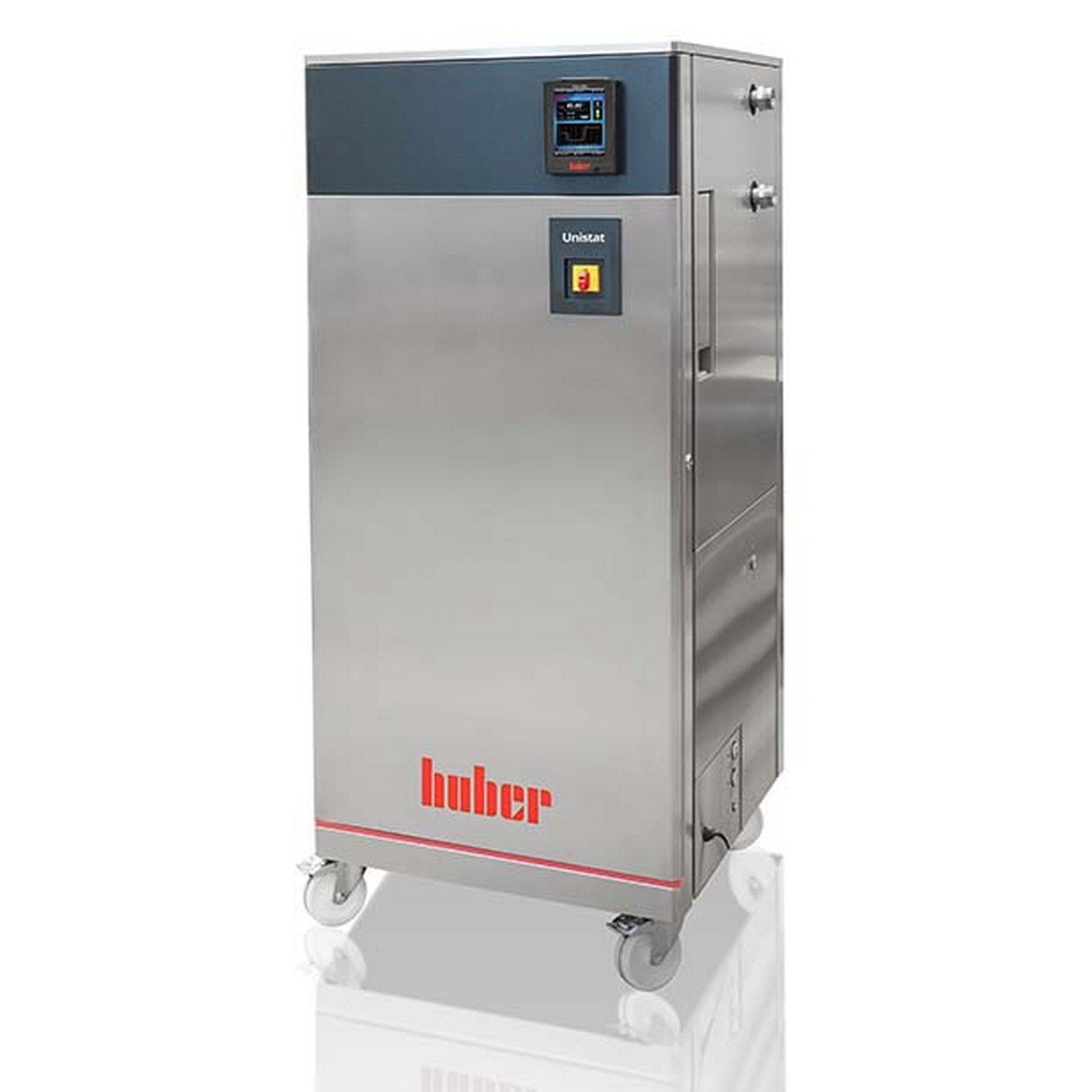

Huber - Unistat 530w

Brand: Huber

Unistat 530w

The Huber Unistat 530w is a dynamic temperature control system engineered for precise, reproducible thermoregulation across -55...250 C. It combines fast heating and cooling, tight temperature stability, and a closed, magnetically coupled circulation circuit that keeps your process on setpoint without fluid changes over the full range. Heating output reaches 12 kW. Operation is managed through the Pilot ONE touchscreen controller for adaptive, repeatable control.

Available Options

• 460V 3~ 60Hz (part 5002.0006.01)
• 460V 3~ 60Hz / NR (part 5002.0102.01)

Key Features

• Operating temperature range: -55...250 C
• Temperature stability at -10 C: 0.01 K
• Heating power: 12 kW
• Cooling power with: Thermooil
• max. delivery: 196 l/min
• Overall dimensions WxDxH **: 730x804x1738 mm
• Net weight: 456 kg
• Power supply requirement: 460V 3~ 60Hz

Ideal Applications

• Reactor and pilot-plant temperature control
• Exothermic reaction control and scale-up
• Materials, battery, and process testing
