Ace Roto-Mold - 350 Gallon Cone Bottom Tank - 45 Degree

Brand: Ace Roto-Mold

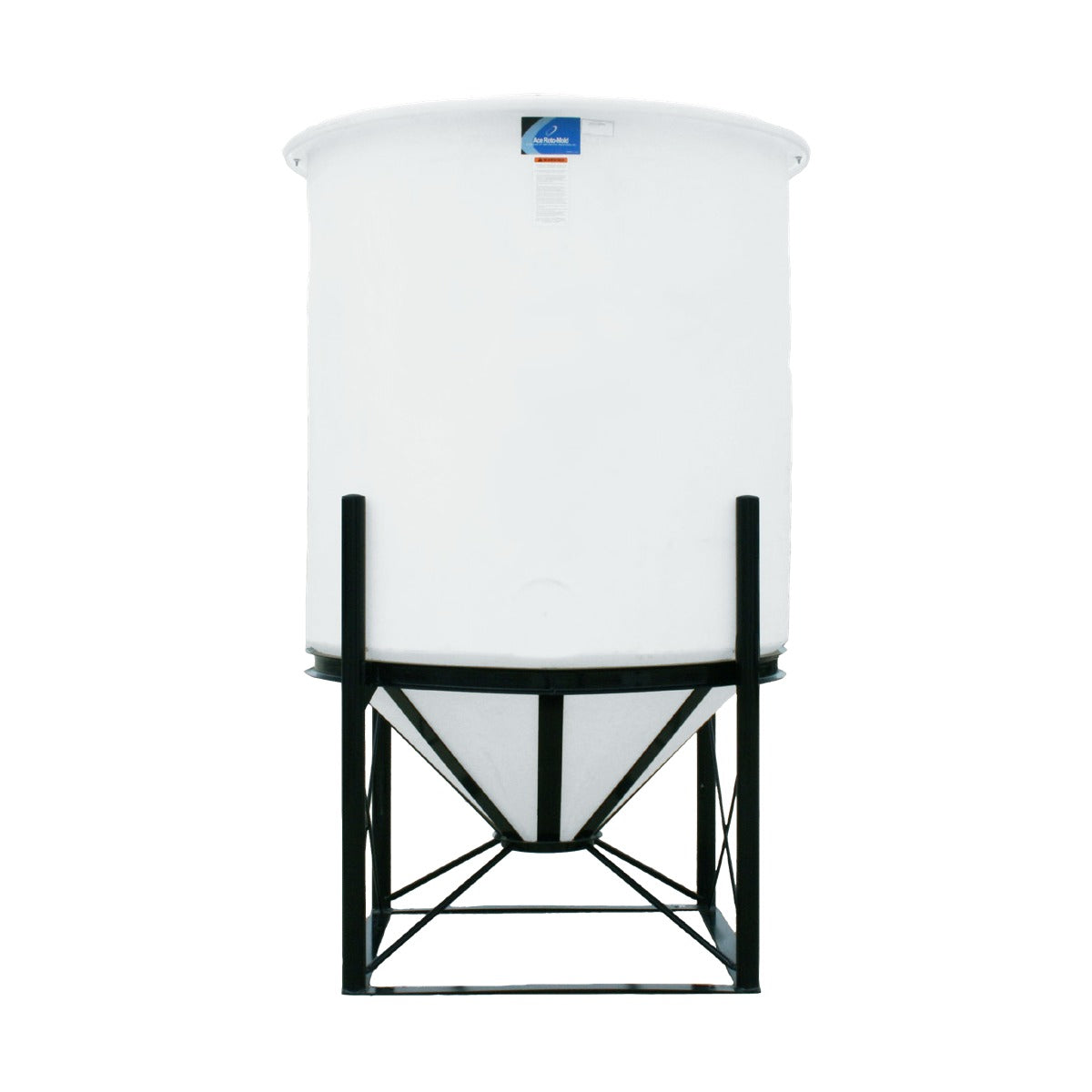

Ace Roto-Mold 350 Gallon Cone Bottom Tank - 45 Degree

The Ace Roto-Mold 350 Gallon Cone Bottom Tank is a rotationally molded polyethylene vessel with a 45 degree conical floor that drains completely to the outlet. The steep cone angle keeps solids and slurries moving toward the discharge instead of settling out, which makes the tank a strong fit for mixing, batching, and any liquid that needs to be emptied clean between uses.

The tank body measures 42 inches in diameter and 81 inches tall, reaching roughly 93 inches overall once mounted on its matching 45 degree stand (sold separately). A 12 inch threaded lid provides top access for filling and cleaning, and a 2 inch bottom fitting handles gravity discharge or pump draw. Rated to 2.0 specific gravity, it handles heavier chemistry than standard water-only tanks.

Available Options

• 350 gallon capacity - 45 degree cone - 42 in diameter x 81 in height

Key Features

• 45 degree cone bottom for complete gravity drainage with no dead volume
• One-piece rotationally molded polyethylene construction
• 2.0 specific gravity rating for heavier liquids and concentrates
• 12 in threaded lid for filling, inspection, and cleanout
• 2 in bottom outlet fitting for discharge or pump connection
• Translucent natural white walls for visual level checks
• 120 lb empty weight for straightforward placement and relocation
• Requires a 45 degree cone bottom stand for support (sold separately)

Ideal Applications

• Nutrient and liquid fertilizer mixing and batching
• Slurry and suspension holding where settling is a problem
• Chemical blending stations needing full drain-down
• Agricultural spray mix preparation and transfer
• Process water and wash-down systems requiring clean emptying
• Pilot and small-batch production tanks
