Protec Arisawa - Permeate Port, 1 in FNPT, Noryl GFN2, 300/450/600 PSI

Brand: Protec Arisawa

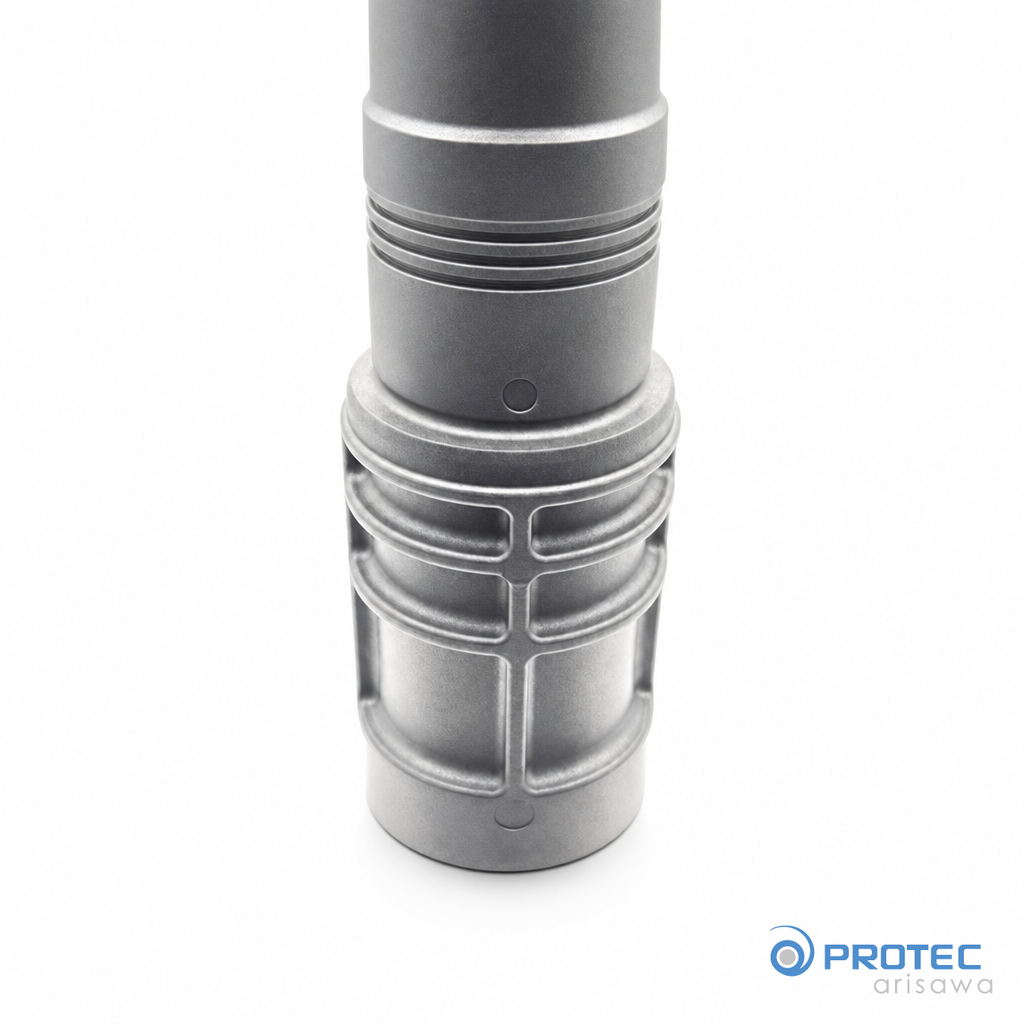

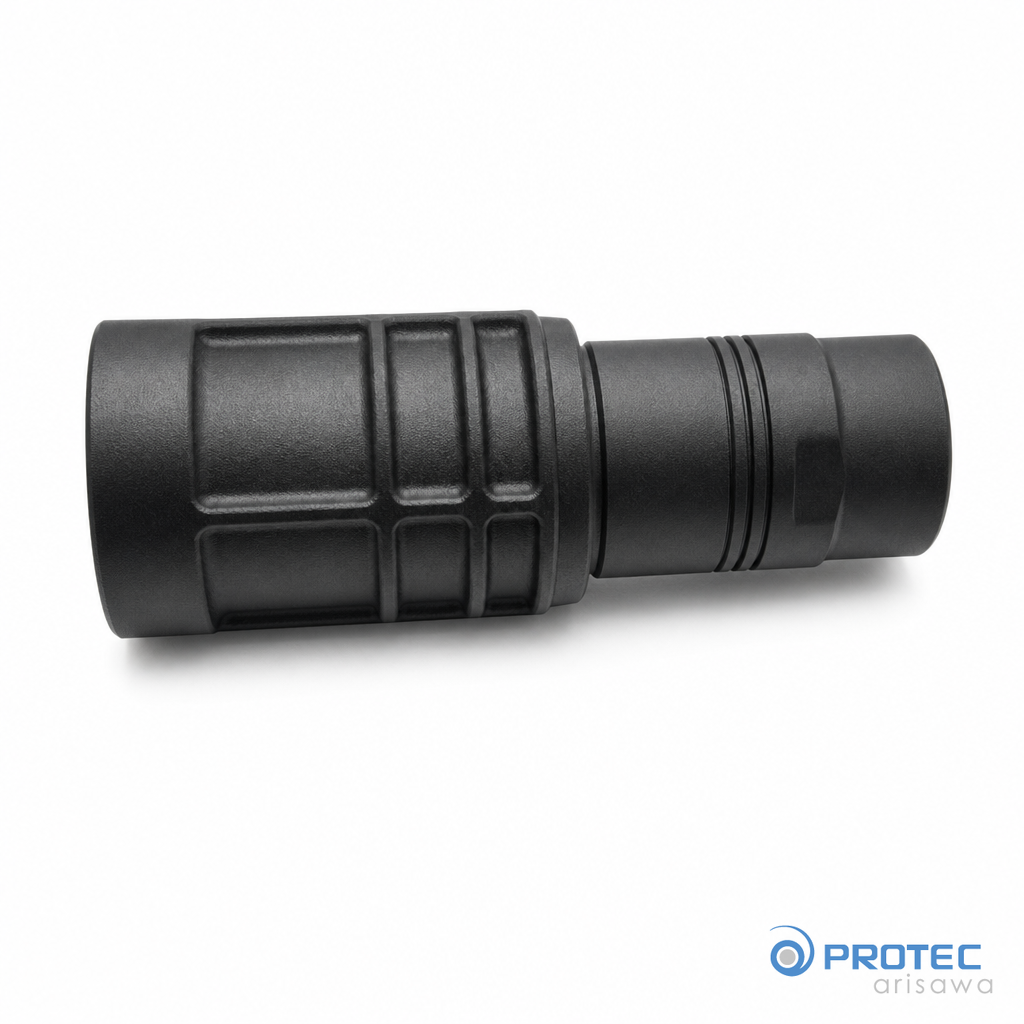

Protec Arisawa Permeate Port, 1 in FNPT, Noryl GFN2, 300/450/600 PSI

This molded permeate port is the OEM replacement part for 8 in diameter Protec Arisawa PRO, SP and MSP series pressure vessels in brackish water service. It is made from glass-filled Noryl GFN2, provides a 1 in female NPT permeate connection, and is rated for 300, 450 and 600 PSI vessels.

The port measures 6.7 in long with a 2.5 in body diameter and carries four O-ring grooves, sealing with Protec Arisawa O-ring 6180326-N. It is NSF-61 certified and is used when servicing or rebuilding membrane pressure vessels in reverse osmosis, nanofiltration and ultrafiltration systems.

Available Options

• Part number 4080289: 1 in FNPT, for 300, 450 and 600 PSI vessels

Key Features

• Molded glass-filled Noryl GFN2
• 1 in FNPT permeate connection
• Rated for 300, 450 and 600 PSI vessels
• Fits 8 in diameter vessels in brackish water service
• 6.7 in long, 2.5 in body diameter
• Four O-ring grooves, seals with O-ring 6180326-N
• NSF-61 certified
• OEM Protec Arisawa part

Ideal Applications

• Permeate port replacement on 8 in Protec Arisawa PRO, SP and MSP brackish water pressure vessels
• Service and rebuilds of reverse osmosis, nanofiltration and ultrafiltration systems
• Potable, municipal, commercial and industrial water treatment
