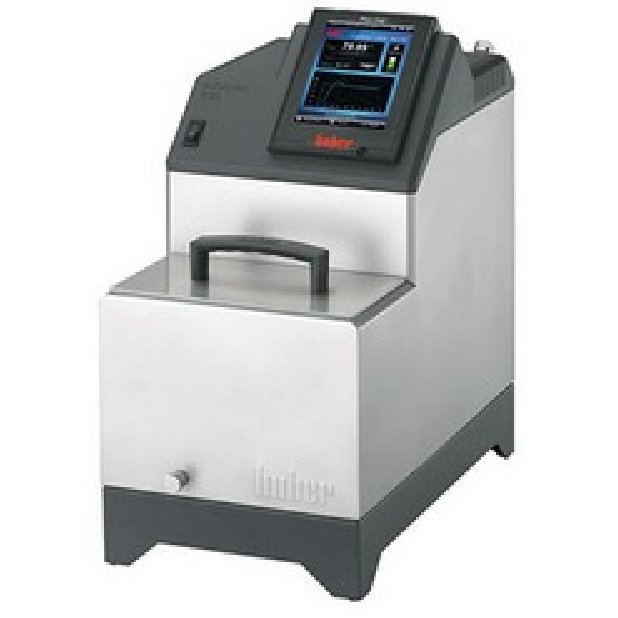

Huber - Ministat 230

Brand: Huber

Ministat 230

The Huber Ministat 230 is a bath circulator providing stable heating and cooling across -40...200 C for samples, calibration, and small reactor duty. Heating output reaches 2.1 kW. A stainless bath and responsive control deliver consistent results in demanding lab environments.

Available Options

• 208-240V 1~/2~ 50/60Hz (part 2015.0005.01)
• 110-120V 1~ 60Hz (part 2015.0012.01)

Key Features

• Operating temperature range: -40...200 C
• Temperature stability at -10 C: 0.02 K
• Heating power at 240V: 2.1 kW
• Cooling power: at 100 C
• Pressure pump: yes
• max. delivery: 22 l/min
• Bath volume: 3.5 l
• Overall dimensions WxDxH **: 255x450x476 mm

Ideal Applications

• Process and analytical instrument cooling
• Rotary evaporators and vacuum systems
• Recirculating cooling loops
