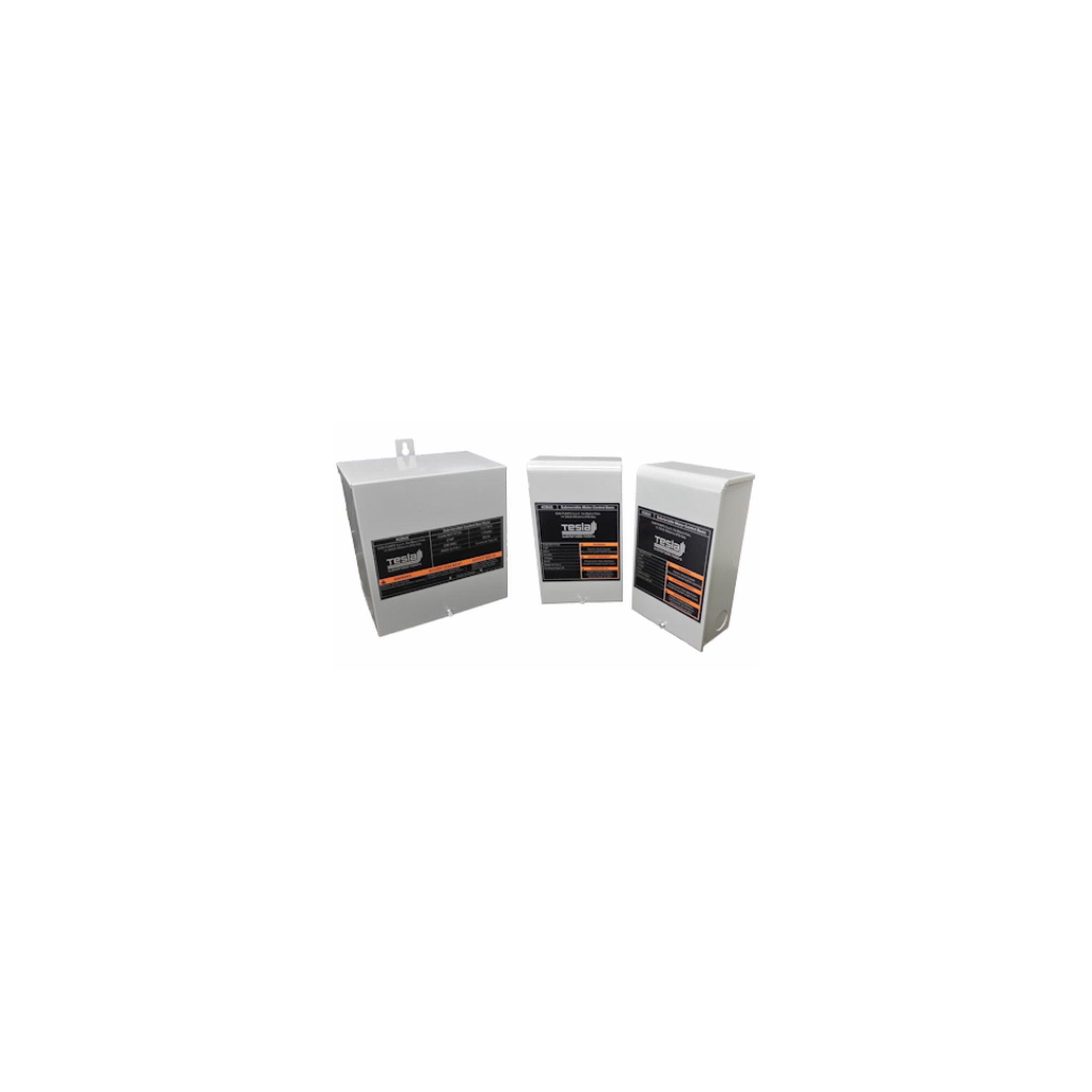

DAB TESLA Well Pump Control Box for 3-Wire Submersible Motors

The TESLA 4CBUS is the control box for DAB TESLA 4 in three wire single phase submersible motors, covering 0.5 HP through 5 HP. It houses the start capacitor, the run capacitor where fitted, the starting relay and the overload protector that a three wire motor needs in order to start and to be protected in service. The enclosure is metal with a protective painted coating and comes with three knockouts for conduit entry.

A 3-wire single phase submersible motor cannot run without a matching control box. Unlike a three phase motor, a single phase motor produces only a fraction of its rated torque at startup, so the starting components it needs are placed outside the motor in the control box. DAB states plainly in the TESLA installation manual: the pump will not operate without this control box, and operation without the control box will burn out the motor. The box must also match the motor horsepower and voltage, because the capacitors and overload inside it are sized to that motor.

Two construction types are offered. The Small Type covers 0.5 HP to 1 HP and is capacitor start (CSIR); it is built in the Basic configuration only. The Large Type covers 1.5 HP to 5 HP and is capacitor start capacitor run (CSCR); it is offered in both Basic and Plus. The Plus boxes contain magnetic line contactors carefully matched to the motor rating, eliminating the need for external line contactors. Capacitor values are identical between Basic and Plus at every horsepower, so the choice is purely whether the contactor is built in or wired externally. Boxes are NEMA 3R rated for indoor or outdoor mounting and must be mounted vertically with the top side up so the starting relay works correctly.

Available Models

• 0.5 HP - 115V - Basic: 0.5 HP, 115V, capacitor start (CSIR) Small Type. 12.6 A maximum, start capacitor 250 to 300 uF at 125V. Branch protection 15 A Class RK1, RK5 or J fuses.
• 0.5 HP - 230V - Basic: 0.5 HP, 230V, capacitor start (CSIR) Small Type. 6.8 A maximum, start capacitor 59 to 71 uF at 250V. Branch protection 10 A Class RK1, RK5 or J fuses.
• 0.75 HP - 230V - Basic: 0.75 HP, 230V, capacitor start (CSIR) Small Type. 8.5 A maximum, start capacitor 86 to 103 uF at 250V. Branch protection 10 A Class RK1, RK5 or J fuses.
• 1 HP - 230V - Basic: 1 HP, 230V, capacitor start (CSIR) Small Type. 9.8 A maximum, start capacitor 105 to 126 uF at 250V. Branch protection 15 A Class RK1, RK5 or J fuses.
• 1.5 HP - 230V - Basic: 1.5 HP, 230V, capacitor start capacitor run (CSCR) Large Type, Basic. 12 A maximum, start capacitor 105 to 126 uF at 250V, run capacitor 10 uF at 370V. Branch protection 15 A.
• 2 HP - 230V - Basic: 2 HP, 230V, capacitor start capacitor run (CSCR) Large Type, Basic. 12.3 A maximum, start capacitor 105 to 126 uF at 250V, run capacitor 20 uF at 370V. Branch protection 15 A.
• 3 HP - 230V - Basic: 3 HP, 230V, capacitor start capacitor run (CSCR) Large Type, Basic. 16.2 A maximum, start capacitor 208 to 250 uF at 250V, run capacitor 45 uF at 370V. Branch protection 20 A.
• 5 HP - 230V - Basic: 5 HP, 230V, capacitor start capacitor run (CSCR) Large Type, Basic. 25.5 A maximum, start capacitor 270 to 324 uF at 250V, run capacitors 2 x 40 uF at 370V. Branch protection 30 A.
• 1.5 HP - 230V - Plus: 1.5 HP, 230V, CSCR Large Type, Plus. Same capacitors and 12 A rating as the 1.5 HP Basic, with a factory matched magnetic line contactor added so no external contactor is needed.
• 2 HP - 230V - Plus: 2 HP, 230V, CSCR Large Type, Plus. Same capacitors and 12.3 A rating as the 2 HP Basic, with a factory matched magnetic line contactor added so no external contactor is needed.
• 3 HP - 230V - Plus: 3 HP, 230V, CSCR Large Type, Plus. Same capacitors and 16.2 A rating as the 3 HP Basic, with a factory matched magnetic line contactor added so no external contactor is needed.
• 5 HP - 230V - Plus: 5 HP, 230V, CSCR Large Type, Plus. Same capacitors and 25.5 A rating as the 5 HP Basic, with a factory matched magnetic line contactor added so no external contactor is needed.

Specifications

• Application: DAB TESLA 4 in three wire single phase submersible motors, 4GG and 4GX series
• Horsepower Range: 0.5 HP to 5 HP
• Voltage: 115V on the 0.5 HP 115V model, 230V on all other models
• Frequency: 60 Hz
• Phase: Single phase
• Small Type 0.5 HP to 1 HP: Capacitor start, CSIR, Basic configuration only
• Large Type 1.5 HP to 5 HP: Capacitor start capacitor run, CSCR, Basic or Plus
• Plus Configuration: Adds magnetic line contactors matched to the motor rating
• Enclosure: Metal casing with protective painted coating, NEMA 3R, indoor or outdoor
• Conduit Knockouts: Three knockouts. Small Type 1/2 in and 3/4 in conduit. Large Type 1/2 in and 1 in conduit
• Small Type Enclosure Dimensions: 4.9 in by 8.2 in by 2.9 in
• Large Type Enclosure Dimensions: 8.3 in by 9.8 in by 5.9 in
• Mounting: Vertical, top side up
• Field Wiring: 14-10 AWG, 75 C copper conductors only, terminal torque 20 lb in
• Short Circuit Rating: 5 kA when protected by the fuse class and size listed for the model
• Certification: CSA certified to Canadian and US standards, CSA certificate 70000094, project 70047806
• Standards: CSA C22.2 No. 14, CSA C22.2 No. 94.2, UL 508, UL 50E
• Siting Note: Shade the box from direct sunlight where ambient exceeds 95 F, as heat shortens capacitor life

Key Features

• Required starting and protection components for a 3-wire single phase submersible motor
• Matched by DAB to each motor horsepower and voltage
• Plus versions include a built-in magnetic line contactor, removing the external contactor
• Identical capacitor values between Basic and Plus at every horsepower
• NEMA 3R metal enclosure with protective coating for indoor or outdoor mounting
• Three knockouts for straightforward conduit entry
• Built-in overload protector that trips on a shorted capacitor, voltage fault or locked pump
• CSA certified to both US and Canadian standards
• Full 0.5 HP to 5 HP coverage from one product line

Ideal Applications

• Residential drilled well systems with 4 in three wire submersible pumps
• Agricultural and livestock water supply
• Irrigation wells
• Replacing a failed or undersized control box on an existing well
• New submersible pump installations with DAB TESLA 4GG or 4GX motors
• Well service contractor truck stock across the common horsepower range
