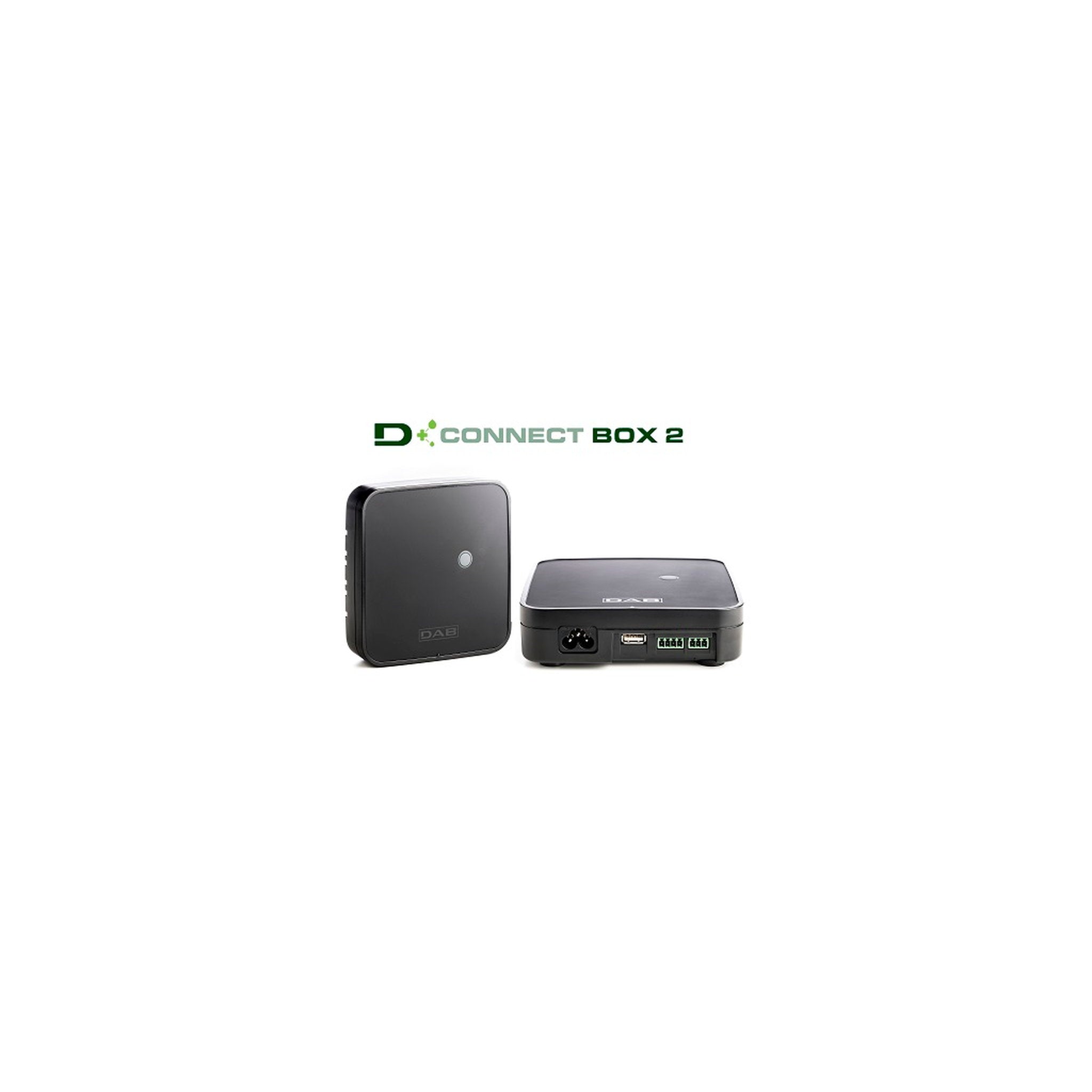

Dab Pumps - DConnect Box2 Wi-Fi Pump Monitoring Gateway

Brand: Dab Pumps

DAB DConnect Box2

DConnect Box2 is the compact gateway that puts a DAB pump installation on the DConnect cloud service. It joins the site Wi-Fi and then links to the pumps, using powerline communication over the existing power cable for submersible units so no extra signal wiring is pulled. From the DConnect app or the web dashboard you can set start and stop parameters, read alarm detail, follow operating charts and see system status from anywhere.

This version ships with the NEMA 6 plug for a 230 V NEMA 6/15P receptacle. It handles up to four DAB products at once and adds one voltage-controlled input, one relay output and a Modbus RS485 port, so it can also pass a signal in or out of the installation while it is reporting to the cloud.

Compatibility

• DAB EsyBox line products and DTron 3
• Supplied with the EsyBox Diver, so this item is the add-on or replacement unit for other installations
• Manages up to 4 DAB products at the same time, depending on pump type
• Requires a permanent 2.4 GHz Wi-Fi internet connection with active DHCP and no login portal

Specifications

• Item code: 60198037, NEMA 6 plug for 230 V NEMA 6/15P
• Power supply: 100-240 VAC, 50/60 Hz, integrated power supply unit
• Protection class: IP 20
• Internet connection: Wi-Fi 802.11 b/g/n, WPA-PSK and WPA2-PSK, 2.4 GHz
• Pump communication: DAB wireless and powerline communication
• Maximum devices: 4 pumps, depending on pump type
• External I/O: 1 non opto-coupled input with voltage control, 1 relay output rated 24 V 5 A resistive
• Ports: power plug, USB for EBOX and accessories, input and output port, Modbus RS485 port
• Assembly: wall mounted using the fixing holes
• Dimensions: 135 x 135 x 139.6 mm (5.3 x 5.3 x 5.5 in)
• Weight: 1.3 kg (2.9 lbs)
• Status LEDs: PLC, wireless, Wi-Fi, DAB DConnect cloud connection
• Pack contents: DConnect Box2, power cable, electrical connectors for Modbus and I/O, quick guide

Key Features

• Remote monitoring and control of a DAB installation from a phone, tablet or browser
• Powerline communication reaches submersible pumps over the power cable alone
• Push notification of faults before they become a service call
• Modbus RS485 port for integration with existing site equipment
• Wall mounted, integrated power supply, no external adapter to lose
