Thrive Agritech - LED Light Controller with Extension Cables, 0-10V Dimming, 100-240VAC

Brand: Thrive Agritech

Thrive Agritech LED Light Controller with Extension Cables, 0-10V Dimming, 100-240VAC

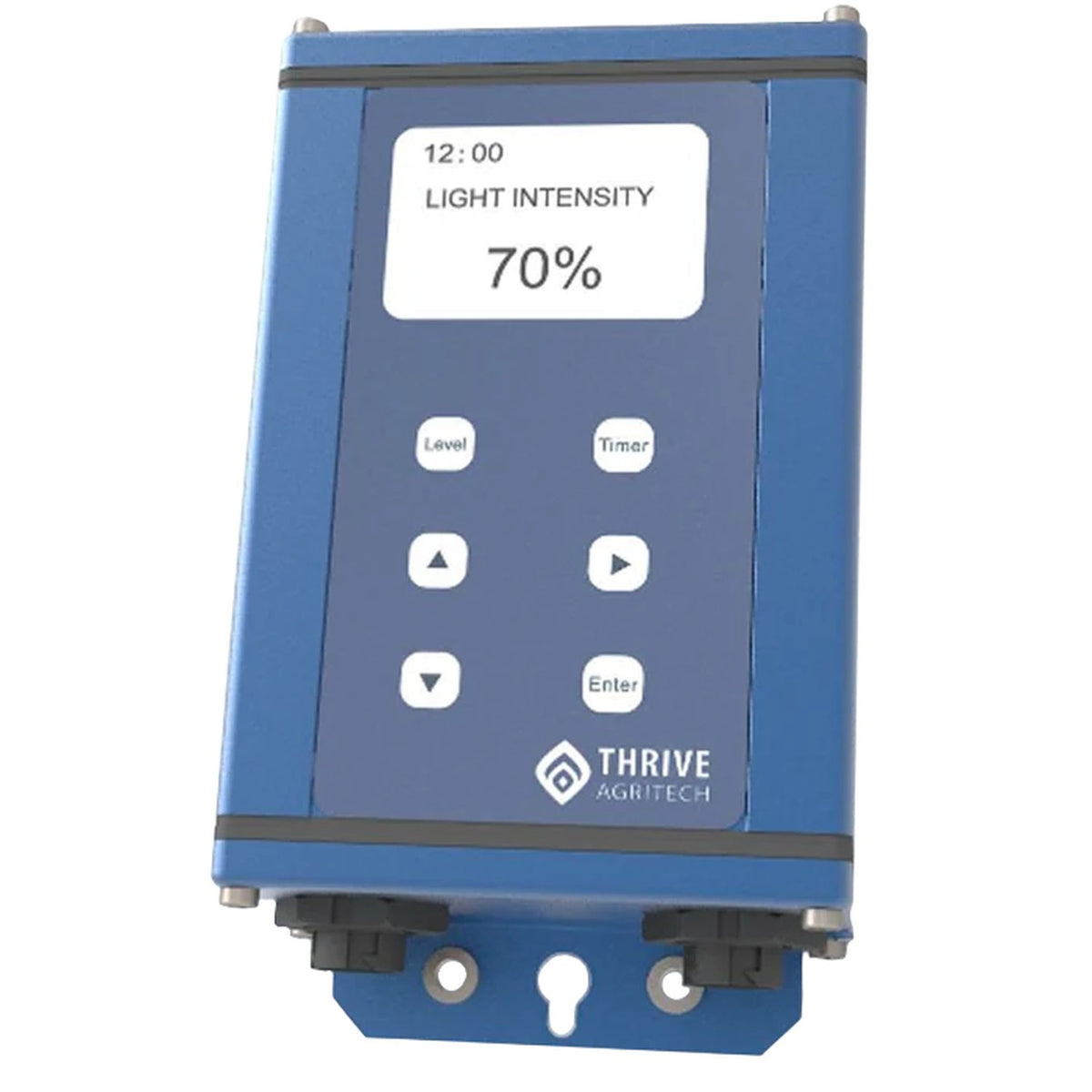

The Thrive Agritech Controller sets light intensity and daily on/off times for Thrive Agritech LED fixtures from one wall- or rack-mounted unit. This kit includes the controller box, an external power supply with a 1m cable, and extension power and dimming cables.

Mount the controller to a wall with screws or to a rack with zip ties, connect the dimming cable's purple (+) and gray (-) wires to the fixture dimming leads, then set intensity and the timer from the keypad. Intensity adjustment works when the current time is inside the start/end window or when the timer is switched off.

Available Options

• Input: 100-240VAC via included external power supply with 1m cable
• Includes controller box, power supply, and extension power and dimming cables
• Part number: CNTRL

Key Features

• 0-10V dimming, 0-100% range in 1% increments
• Controls up to 20 Thrive Agritech LED fixtures
• On/off timer scheduling with start and end times
• Keypad with display for time and light intensity
• Locking connectors on the 12V DC and 0-10V ports; twist counterclockwise to release
• Waterproof power port
• Dimensions 6.25 x 3.5 x 1.8 in, 5-year warranty

Ideal Applications

• Boost XE, Infinity XE, Strata and Pinnacle fixture rows
• Vertical farming and multi-tier racks
• Indoor cultivation and greenhouse facilities
