Dimlux - Xplore Series 3.0 LED Grow Light, 730W

Brand: Dimlux

Dimlux Xplore Series 3.0 LED Grow Light, 730W

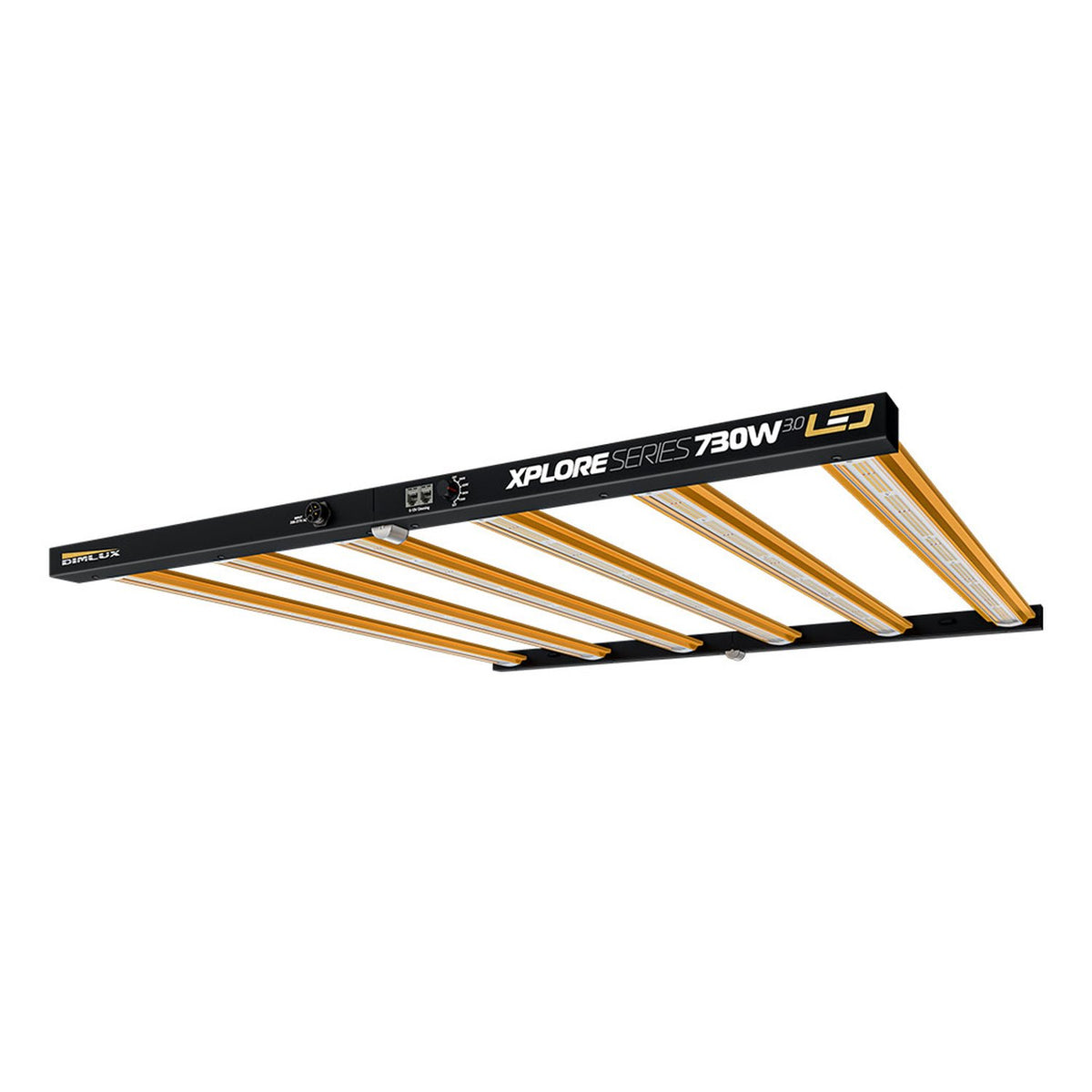

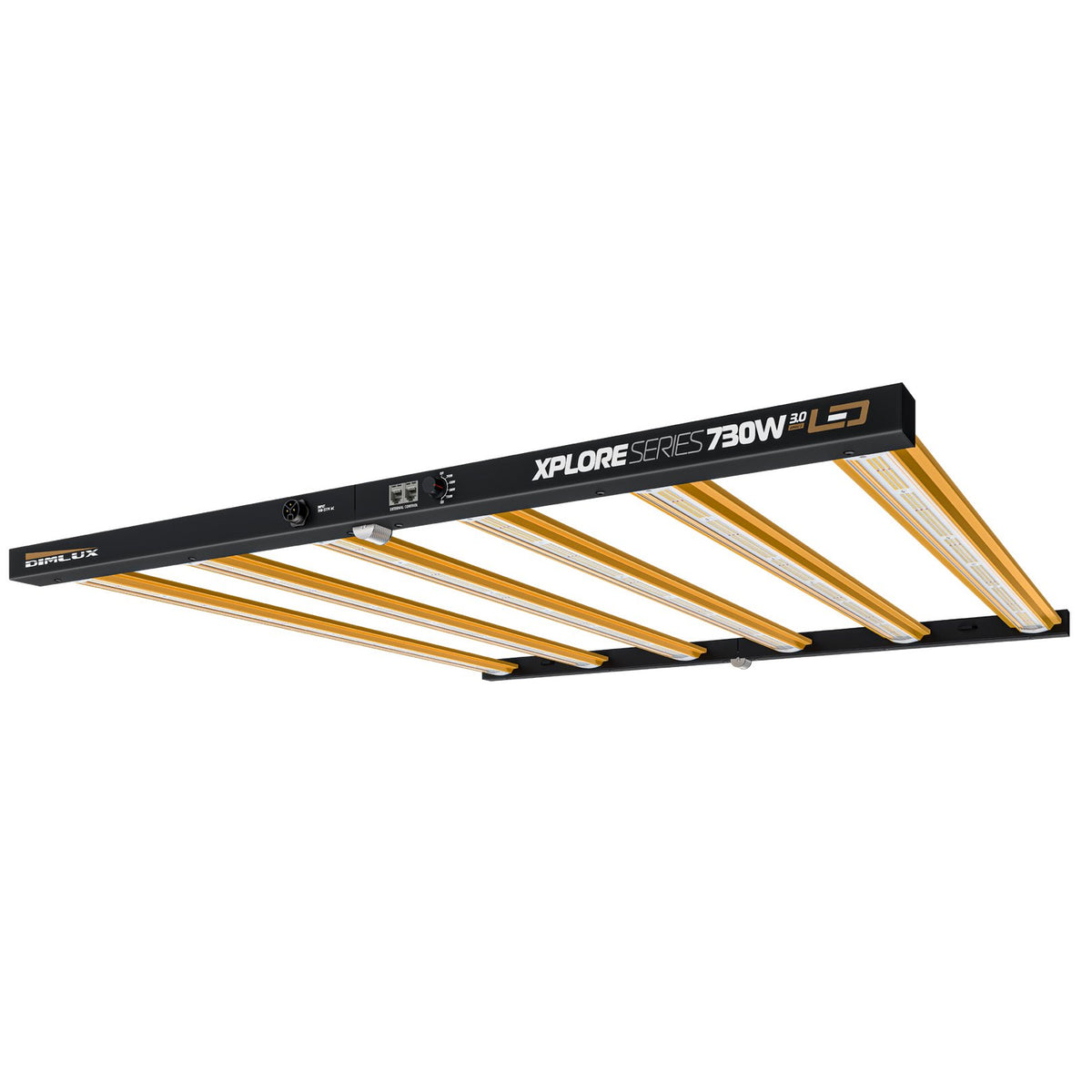

The Dimlux Xplore Series 3.0 is a 730W, six-bar full-spectrum LED fixture rated at 2160 umol/s and 3.0 umol/J. Its white plus red diode layout is placed asymmetrically to push more light to the edges of the canopy, and a protective lens replaces conformal coating on the diodes.

An integrated high-voltage driver runs on 200 to 277V input, with four onboard dim steps or external 0-10V control through RJ-12 ports, so the fixture drops into commercial rooms on a central lighting controller. Dimlux recommends a 5 x 5 ft minimum coverage area at 16 in above the canopy.

Available Options

• 240V cord
• 277V cord
• 240V Only model

Key Features

• 730W at 230 to 240V; PPF 2160 umol/s, total PPF (350-800 nm) 2197 umol/s
• 3.0 umol/J PAR efficacy
• Dimming: off, 290, 430, 580 and 730W, or EXT for 0-10V control via RJ-12
• Integrated driver, 200 to 277V AC, 50/60 Hz, THD under 10%
• L90 over 50,000 hours
• IP44 fixture with IP68 quick-lock power connector
• CE, DLC Listed and ETL
• 45.83 x 41.85 x 1.5 in, 16.3 lb
• 5-year warranty

Ideal Applications

• Commercial flowering rooms and vertical racks
• Greenhouse supplemental lighting
• Controlled-environment agriculture on 0-10V lighting controllers
