GrowoniX - CX12000 - 12000 GPD Commercial Grade High Flow Reverse Osmosis Filtration System

Brand: GrowoniX

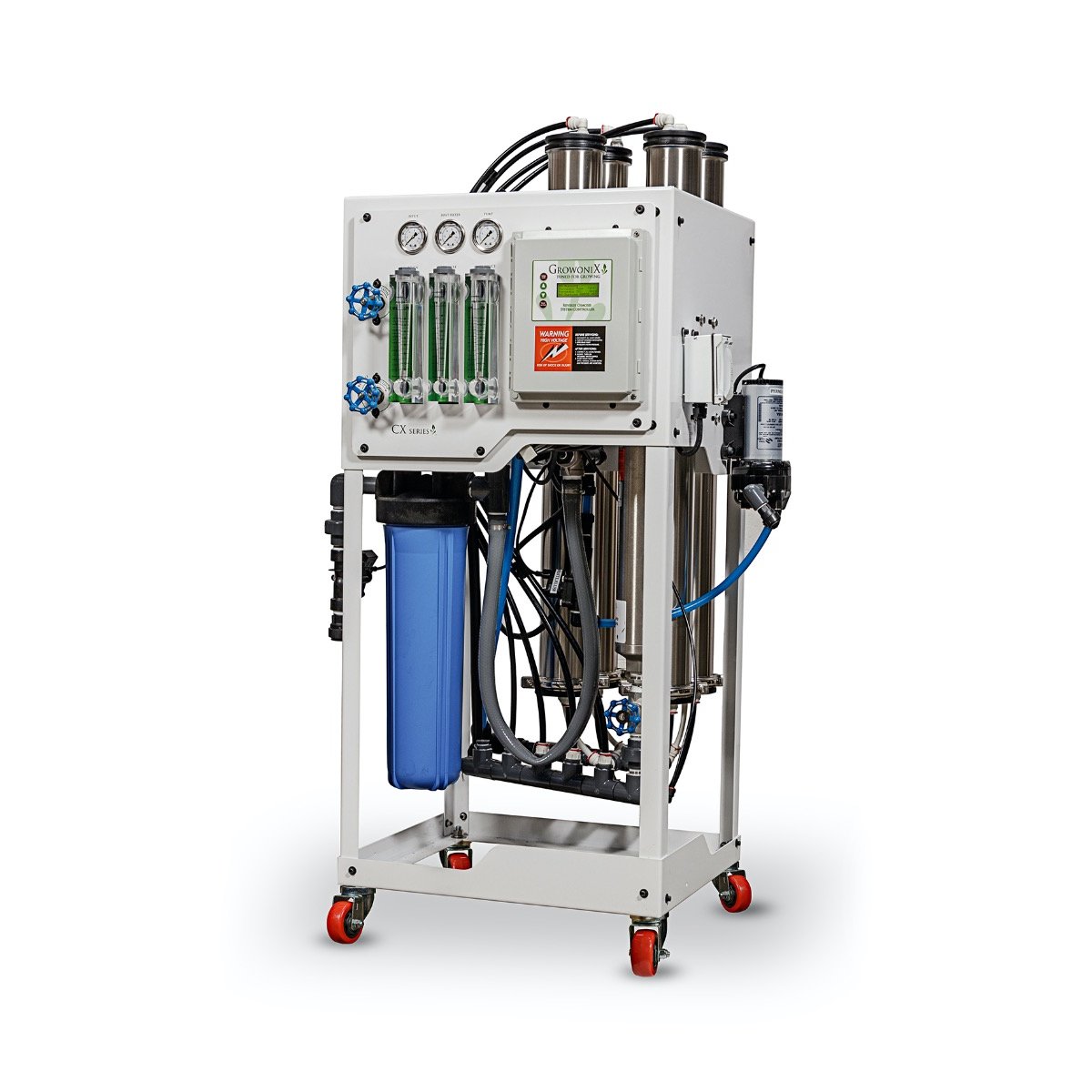

GrowoniX CX12000 - 12000 GPD Commercial Grade High Flow Reverse Osmosis Filtration System

The GrowoniX CX12000 is a chassis-mounted commercial reverse osmosis system rated for up to 12,000 gallons per day (500 GPH) of permeate. It runs four GXM-3000-HF high-flow polyamide membranes in stainless steel housings, driven by a stainless steel vertical multi-stage pump, with salt rejection up to 98.5%.

Built for facilities that need large daily volumes of purified water, the CX12000 uses a concentrate recycle network with a stainless needle valve and precision flow meter to run system ratios as efficient as 1:4. A digital ROC-5 RO controller with dual TDS and temperature probes, a tank float switch, automatic high-pressure flush and permeate flush keep the system running with minimal attention. It needs a minimum feed of 16.7 GPM at 40-80 psi and pre-treatment that holds chlorine below 0.1 ppm and hardness below 3 gpg.

Available Options

• CX12000-VMS-AF-3PH: three phase pump, 208-230V, 60 Hz

Key Features

• Permeate flow: 12,000 GPD (500 GPH)
• Four GXM-3000-HF high-flow polyamide membranes in stainless steel housings
• Salt rejection up to 98.5%
• Digital ROC-5 RO controller with dual TDS and temperature probes
• Concentrate recycle network for variable ratios down to 1:4
• Automatic high-pressure flush and permeate flush
• Tank float switch
• SF-4520-SP sediment prefilter
• Feed: 1 in FNPT / 1 in CTS; permeate and waste: 3/4 in CTS
• Liquid-filled 160 psi and 300 psi gauges
• Powder-coated steel frame on casters, 30 x 27 x 61 in (L x W x H)
• Feed water: 40-90 F, pH 6-10, SDI under 6, turbidity under 4 NTU

Ideal Applications

• Commercial greenhouses and indoor cultivation facilities
• Controlled-environment agriculture irrigation and fertigation water
• Large-volume nutrient mixing reservoirs
• Commercial and light industrial process water
