AXEON - R1-3140 Reverse Osmosis System, 5400 GPD, 220V 1PH

Brand: Axeon

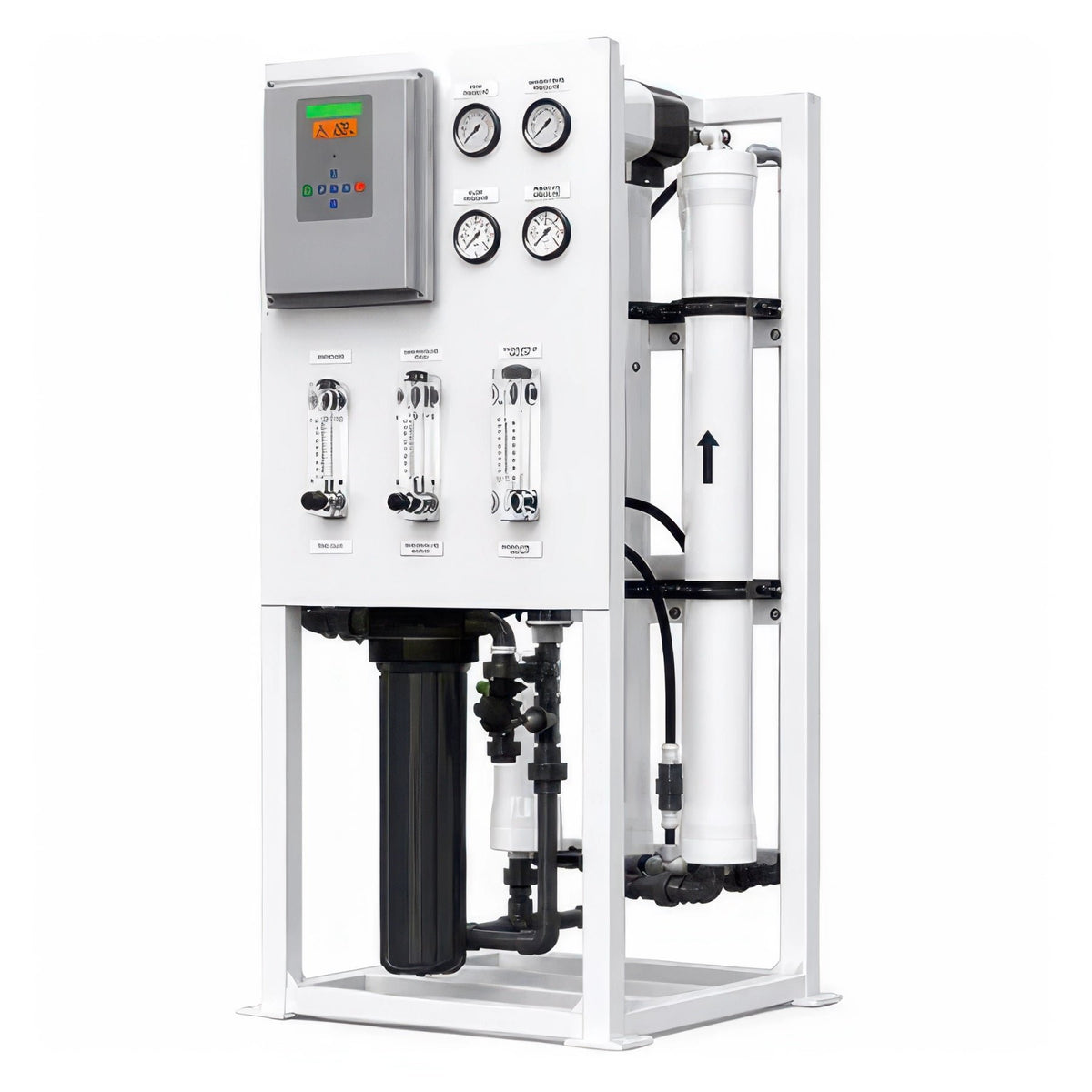

AXEON R1-3140 Reverse Osmosis System, 5,400 GPD, 220V 1PH

The AXEON R1-3140 is a single pass, tap water reverse osmosis system rated for 5,400 gallons per day (3.75 GPM) at a 56% standard recovery. It runs three AXEON HF5-Series ultra low energy 4040 membrane elements in a 1:1:1 array of FRP housings, fed by a Goulds multi-stage stainless steel booster pump, and ships skid mounted, pre-plumbed, wired, assembled, individually tested and preserved.

The R1-Series is built for operators who need steady commercial RO production with low energy use and simple servicing. AXEON rates the series at 20% less energy use than standard RO systems, and every component sits on an open white powder coated aluminum frame for easy access. Feed water must be filtered and dechlorinated municipal water under 2,000 ppm TDS; add nutrients after the RO system, never before it.

Available Options

• Model: R1-3140, AXEON part 205328
• Electrical: 220V, 50/60 Hz, single phase, 8.8 A
• Production: 5,400 GPD / 20,441 LPD (3.75 GPM)
• Factory options include permeate flush, permeate divert, blending valve, high pressure tank switch, pump pressure relief valve and S-150 dual TDS board

Key Features

• S-150 computer controller with LCD backlit display, pre-treatment lockout, tank level input, low pressure alarm, TDS monitoring, feed flush and hour meter
• Three AXEON HF5-Series ultra low energy 4040 membranes, 98.5% nominal TDS rejection
• AXEON FRP-Series membrane housings rated to 300 psi
• Goulds 1.5 HP multi-stage stainless steel booster pump, 3450 RPM at 60 Hz
• AXEON 5 micron sediment pre-filter in a 20 in Big Grey cartridge housing
• Permeate, concentrate and concentrate recycle flow meters
• Panel mounted glycerin filled gauges: 0-100 psi pre-filter, 0-300 psi pump discharge and concentrate
• ASCO composite feed solenoid valve, feed low pressure switch and dual chemical pump outlets
• 1-year limited warranty

Ideal Applications

• Irrigation and fertigation water for greenhouse and indoor cultivation facilities
• Controlled-environment agriculture and hydroponic nutrient mixing
• Commercial process and rinse water from municipal supply

Specifications

• Configuration: single pass, 1:1:1 array, 3 vessels, 3 x 4040 membranes
• Permeate flow: 5,400 GPD / 20,441 LPD, 3.75 GPM / 14.19 LPM
• Standard recovery: 56%
• Minimum concentrate flow: 3 GPM; concentrate recycle up to 5 GPM
• Connections: feed 1 in FNPT, permeate 3/4 in FNPT, concentrate 3/4 in FNPT
• Dimensions: 26 x 26 x 60 in (L x W x H), not including service space
• Approximate weight: 330 lb
• Feed water limits: TDS 2,000 ppm max, 0 ppm free chlorine, 0 gpg hardness, SDI under 3, turbidity 1 NTU max, pH 2 to 11
• Feed pressure 45 to 85 psi; feed temperature 40 to 85 F; ambient 40 to 120 F
• Rated at 550 TDS filtered, dechlorinated municipal feed, 80 psi operating pressure, 77 F
