Liberty Pumps - 405HV 1/2 HP Commercial High Head Drain Pump - 230V, 2 in Discharge

Brand: Liberty Pumps

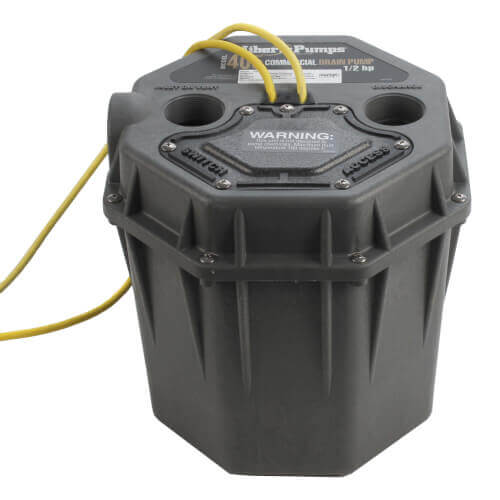

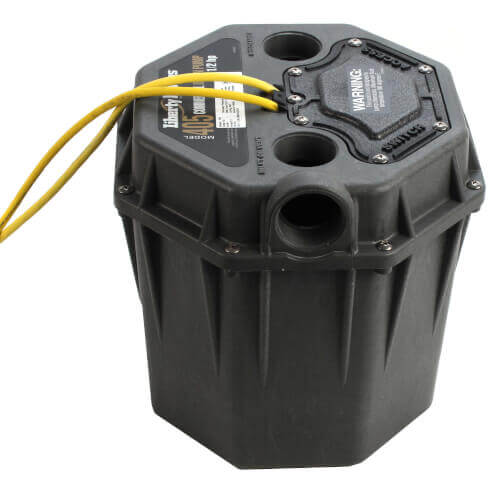

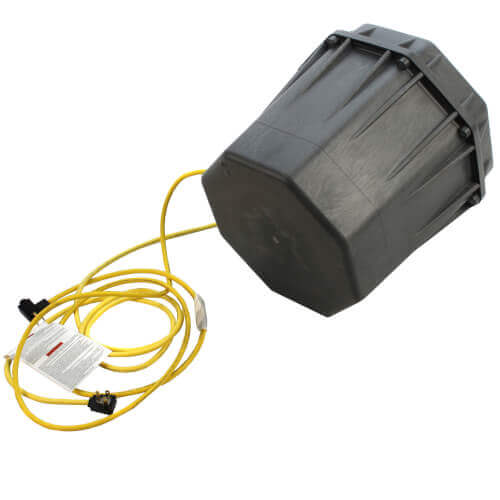

Liberty Pumps 405HV 1/2 HP Commercial High Head Drain Pump

The Liberty Pumps 405HV is a 1/2 HP commercial drain pump built for high-head transfer where discharge must be lifted well above the collection point. It pairs an oil-filled, hermetically sealed motor with a corrosion-resistant polyolefin basin, and runs on 208/230V for facilities already carrying higher-voltage service.

With 34 ft of maximum head and 48 GPM at 5 ft of lift, the 405HV moves drainage and condensate from below-grade or remote equipment back to a gravity main. The integrated float switch cycles the pump automatically, and the 2 in discharge connection with 3/8 in solids handling suits utility drainage, equipment condensate, and wash-down collection in commercial and controlled-environment facilities.

Specifications

• Model: 405HV
• Motor: 1/2 HP, oil-filled, hermetically sealed
• Voltage: 208/230V
• Discharge connection: 2 in
• Maximum head: 34 ft
• Flow: 48 GPM at 5 ft, 44 GPM at 10 ft, 39 GPM at 15 ft
• Solids handling: 3/8 in
• Basin: corrosion-resistant polyolefin
• Switch: automatic float switch
• Power cord: 10 ft
• Maximum liquid temperature: 180 F

Key Features

• High-head performance to 34 ft for long vertical lifts
• Oil-filled, hermetically sealed motor for continuous-duty cooling
• Corrosion-resistant polyolefin basin
• Automatic float switch requires no external controller
• 208/230V operation reduces amp draw versus 115V equivalents
• 2 in discharge with 3/8 in solids passage

Ideal Applications

• Commercial and controlled-environment facility drainage
• Below-grade equipment rooms discharging to a gravity main
• Equipment condensate and wash-down water collection
• Installations requiring lift beyond the range of standard drain pumps
