Dab Pumps - Selfpriming Shutter for EsyBox Max - SP00006708

Brand: Dab Pumps

Selfpriming Shutter - EsyBox Max - SP00006708

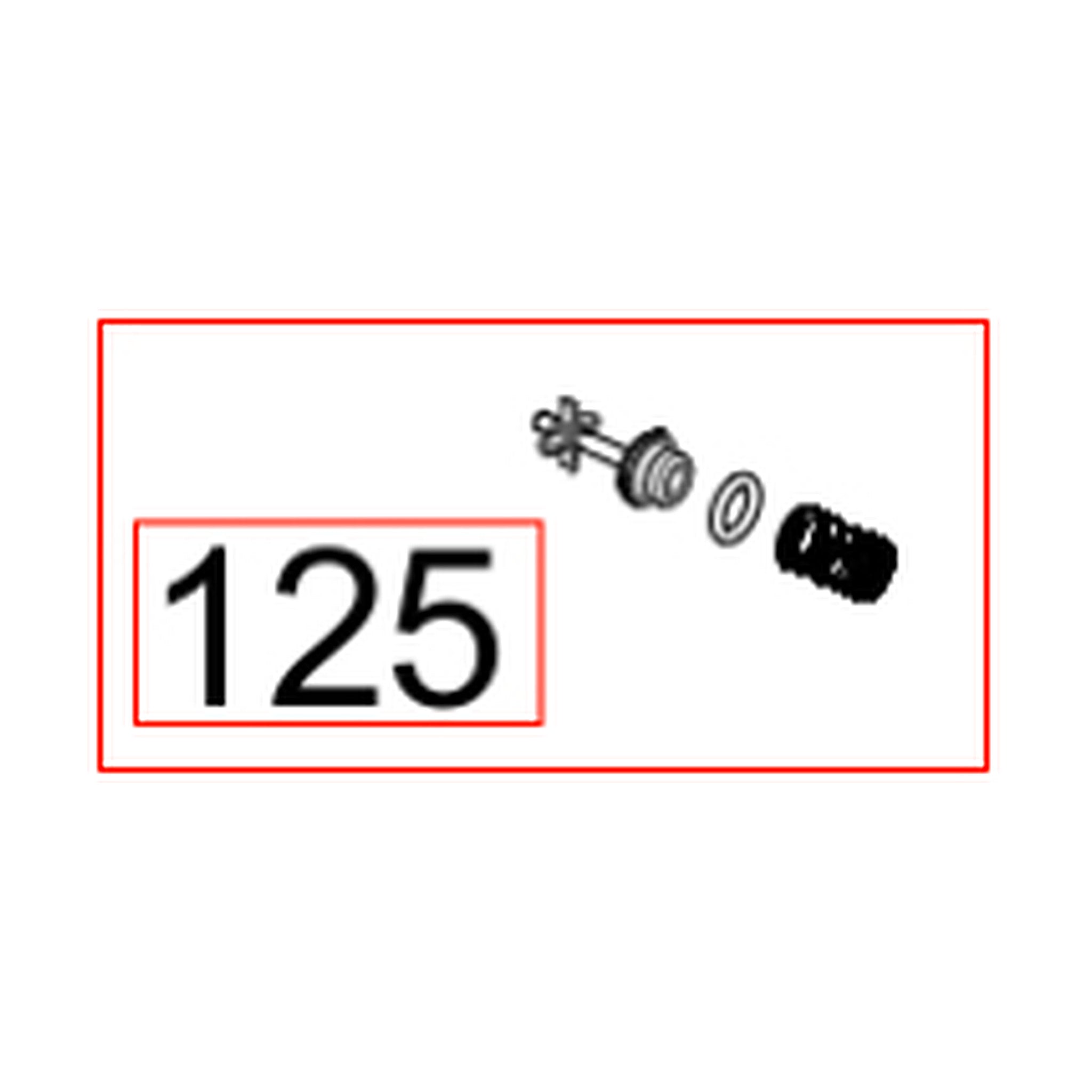

DAB lists this item on the EsyBox Max spare parts sheet as (SP) SELFPRIMING SHUTTER at position 125. It is a small multi-piece assembly that fits into a port on the pump body group (position 128), immediately next to the 3/4 in cap at position 126, with position 135 O-ring kit items called out at the same location.

DAB does not describe this component's operation anywhere in the EsyBox Max instruction manual, and the words shutter and self-priming shutter do not appear in it. What the manual does state, in the installation warnings, is that the pump is not self-priming, and that it is suitable for suction from tanks or connected to the mains in booster mode where local regulations permit. Nothing further about this part's function is published by DAB, so nothing further is claimed here.

Fits

• DAB EsyBox Max. DAB's spare parts sheet ESYBOX MAX 45/120 M208-240 PUMP/AUS2, revision N.1, document code 60217359 lists this item at position 125 as (SP) SELFPRIMING SHUTTER, item no. SP00006708.
• The DAB EsyBox Max instruction manual for North America covers the EsyBox Max 60/120 M, 60/120 T and 85/120 T (manual section 1.5). That manual does not list the 45/120 M208-240 at all, and the spare parts sheet cited here is for the 45/120 M208-240. The two documents cover different model sets.
• DAB's drawing places this item on the pump body group at position 128, which is a shared position across the sheet rather than a variant-specific one. The sheet itself is the 45/120 M208-240 build.

Before You Order

• Attention: check the correspondence with the revision of your product. That caution is printed across the header of DAB's spare parts sheet. Check the position number and item number against the sheet issued for your own unit and its revision before you order.
• The only EsyBox Max spare parts list available for this listing is the AU build sheet, ESYBOX MAX 45/120 M208-240 PUMP/AUS2, revision N.1, document code 60217359. DAB has not published a parts sheet in the documents used here for the 60/120 T or 85/120 T, so the item number for three-phase machines is not confirmed by these sources.
• Do not order this part expecting to add self-priming capability. DAB's EsyBox Max manual states plainly that the pump is not self-priming, regardless of what the part name on the spare parts sheet suggests.
• DAB publishes no failure symptom, diagnostic code or troubleshooting entry tied to this component, and no removal procedure for it in the manual's maintenance chapter. Identify it against the spare parts drawing for your own unit before ordering.

Often Replaced With

• O-Ring Kit, SP00006718, position 135. DAB's drawing calls out position 135 items at this location on the pump body.
• 3/4 in Cap, SP00006709, position 126, which DAB's drawing shows in the same port group.
