Thrive Agritech - LED Light Controller, 0-10V Dimming, 100-240VAC

Brand: Thrive Agritech

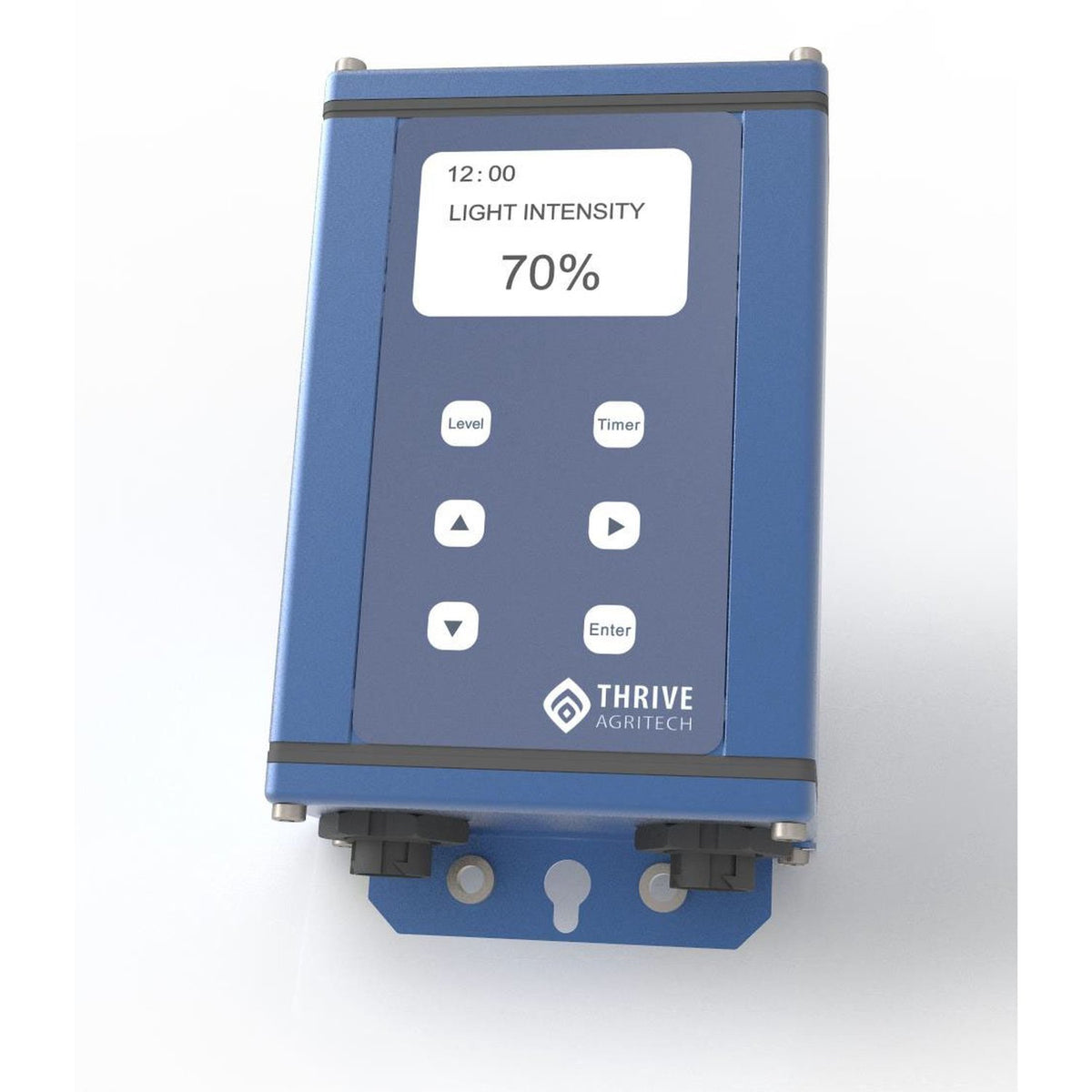

Thrive Agritech LED Light Controller, 0-10V Dimming

The Thrive Agritech Controller sets light intensity and daily on/off times for Thrive Agritech LED fixtures from one wall- or rack-mounted unit. It runs on 100-240VAC through the included external power supply with a 1m cable and controls up to 40 lights over a 0-10V dimming signal.

Thrive Agritech specifies this controller (p/n CNTRL-V2) for 0-10V dimming of its Infinity XE light bars, and the Boost XE uses the same Thrive Agritech Controller for dimming. Mount the unit to a wall with screws or to a rack with zip ties, connect the dimming cable to the fixture dimming leads, then set the intensity and timer from the keypad.

Available Options

• Model: CNTRL-V2
• Input: 100-240VAC via included external power supply with 1m cable

Key Features

• 0-10V dimming control
• Controls up to 40 lights
• Includes controller box and external power supply with 1m cable
• Built-in timer with start and end times; switch the timer off for intensity-only control
• Keypad with display for time and light intensity
• Locking connectors on the power and 0-10V ports; twist counterclockwise to release
• Mounts to a wall with screws or to a rack with zip ties

Ideal Applications

• Infinity XE light bars in vertical farming and multi-tier racks
• Boost XE light bars for under-canopy and top lighting
• Indoor cultivation and controlled-environment agriculture facilities
