HEPA-CARE - Germicidal UV Module

Brand: HEPA-CARE

HEPA-CARE germicidal UV modules from Abatement Technologies add ultra-high-output UVGI disinfection to healthcare and controlled-environment spaces, pairing UV-C inactivation with HEPA-grade air handling in patient isolation rooms, ER triage areas, and clean rooms.

Key Features

• Four T6-type 39W UV425 UVGI lamps (156W total) producing more than 17,000 µw/cm² at 3"
• Internal air baffles slow airflow to maximize UV dosage and microorganism dwell time
• 9,000-hour rated lamps with room-side access (no ceiling entry required to replace)
• Fully shielded lamp compartment with a safety interlock and automatic restart after power loss
• Powder-coated aluminum cabinet; fits a standard 2 ft x 2 ft drop-ceiling grid
• 115VAC / 60Hz / 2.5A, hard-wired; 5A breaker; NRTL / UL / CSA certified

Choose Your Model

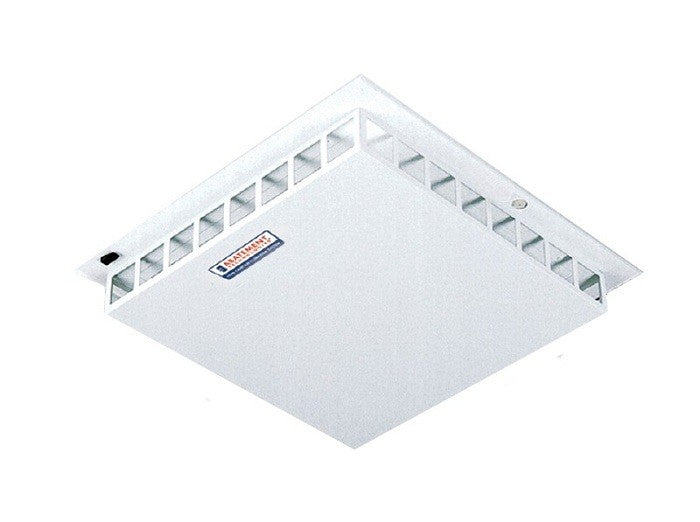

• UV400C — standalone ceiling module that draws in and recirculates room air independently; 23.07 x 15.68 x 22.88", 25 lb net.

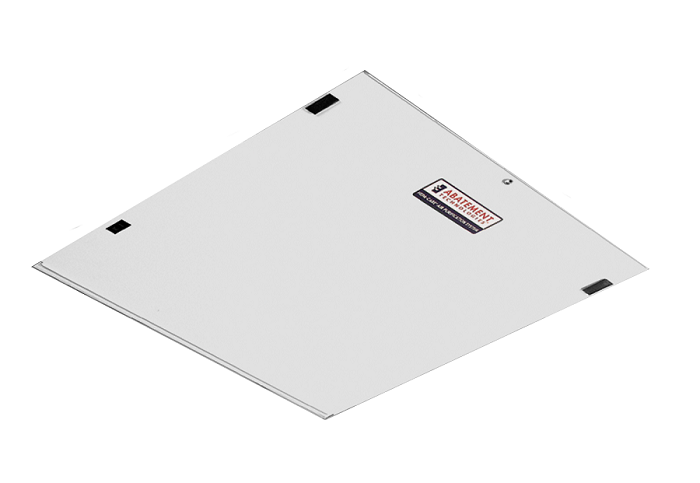

• UV400C-PT — pass-through module that pairs with the HC500CD ceiling air purifier (required, sold separately); HEPA-filtered air is irradiated before exhaust; includes a solid exhaust cover plate.

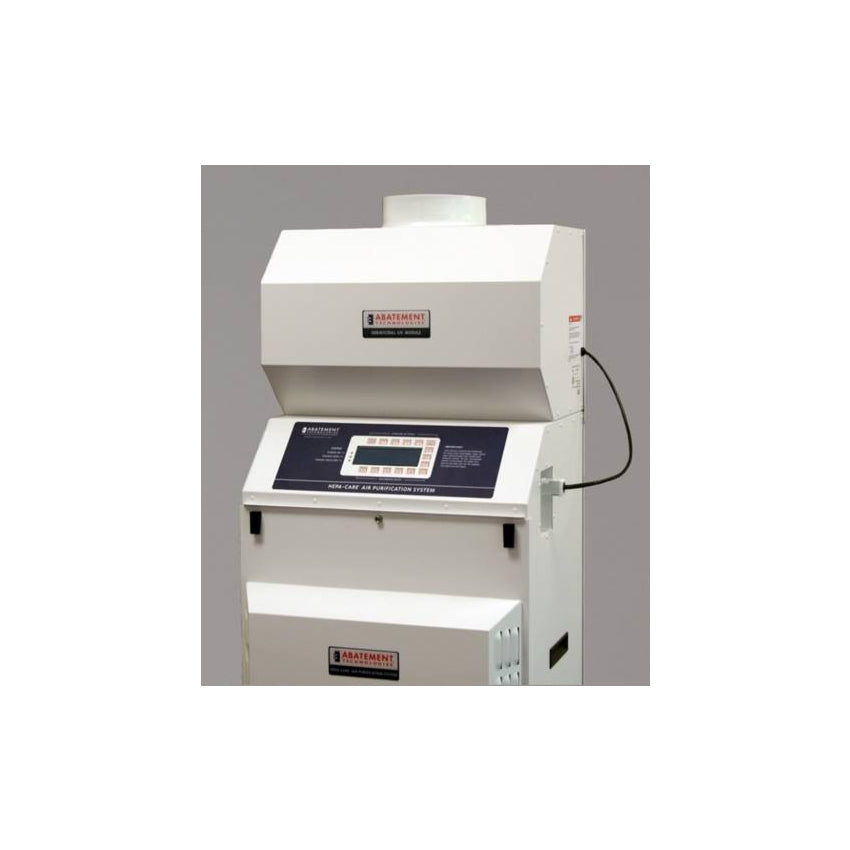

• UV800F — mounts to the HC800F portable system's top exhaust outlet (four UV425 lamps); for use with the HC800F only.

Use only Abatement Technologies OEM replacement lamps and parts; substitutes void the warranty and affect performance.

Why Choose Abatement Technologies

Abatement Technologies builds professional air-quality and containment equipment trusted across remediation, healthcare, and controlled-environment facilities, delivering reliable HEPA performance and rugged, job-site-ready construction.
