Dramm - Aeration/Agitation Bucket

Brand: Dramm

Aeration/Agitation Bucket

The Aeration/Agitation Bucket is a 5 gallon recirculating stock solution bucket with an enclosed pump, sized for the small batch a hand injector actually draws down. It circulates at 0.7 gpm through an eductor, which multiplies the moved volume and keeps water soluble fertilizers, fungicides, insecticides and growth regulators from settling out while you inject. Flip the aeration switch and air is drawn into the passing stream, holding dissolved oxygen at saturation with no demand present - that is the setting for beneficial nematodes and other aerobic organisms. The pump itself runs on 12 V DC in every version; what changes between the options on this page is how that 12 V is delivered.

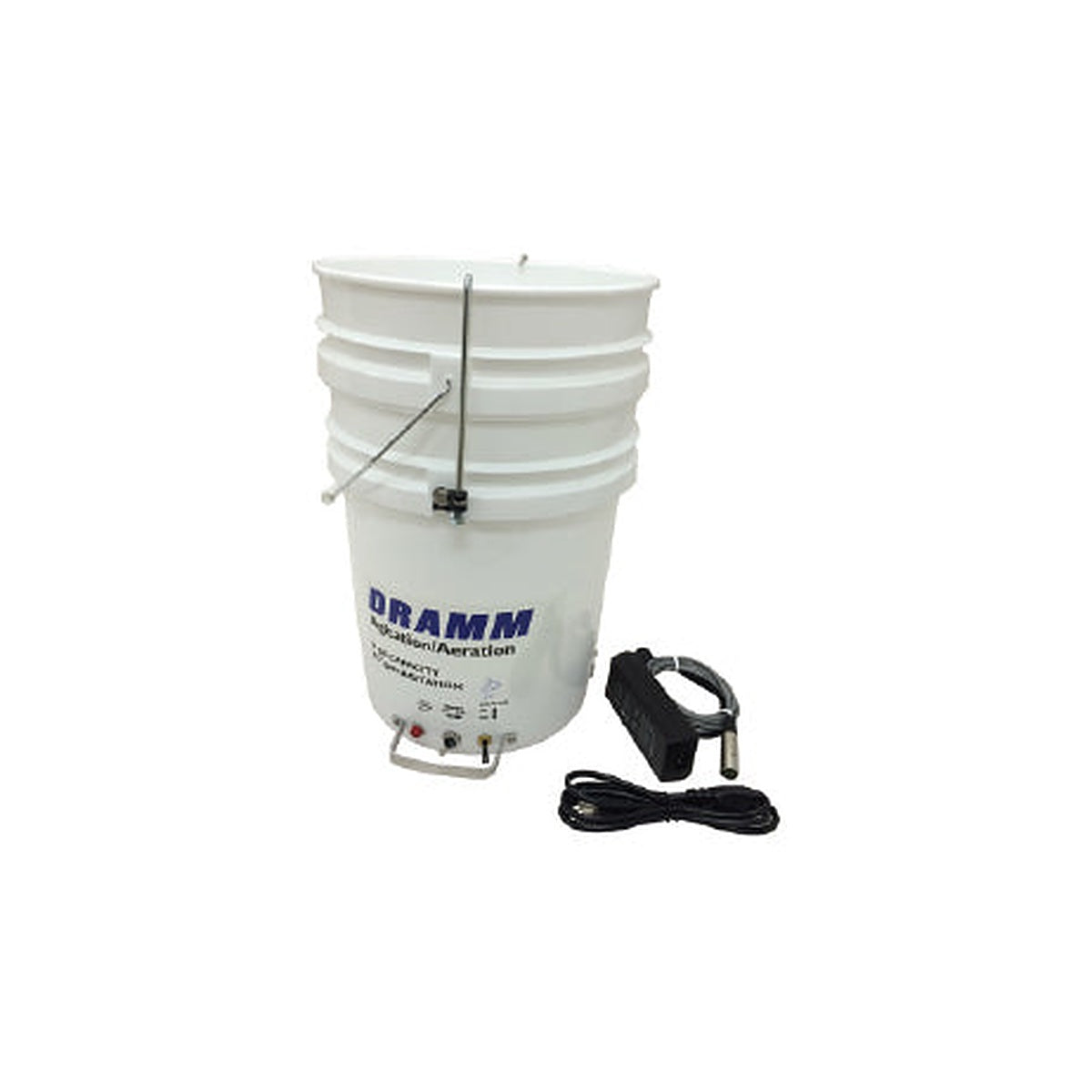

The complete unit is the bucket, the pump, the aeration switch and the power set. 120V and 240V are the two mains versions - the same bucket with a power pack that steps the local supply down to 12 V DC for safety, so pick the one that matches your receptacle and always run it on a GFCI outlet. The Power cord only options are the power sets on their own, for replacement or to change how an existing bucket is fed. Under 120V, Power cord only is the replacement 120 V transformer and cord for a 120 V bucket. Under 12V DC, Power cord only is the AAB12VCORD battery cordset: a 5 ft lead with an inline fuse and alligator clips that replaces the mains transformer entirely and runs the bucket straight off a customer supplied 12 V DC battery of any size. That cordset is how you take the bucket away from an outlet - out to a field block or onto a cart - and it is the current answer to battery operation, because Dramm no longer builds a bucket with an internal 12 V battery. The battery itself is not included with the cordset.

Specifications

Configurations

Key Features

• Keeps a 5 gallon stock batch in suspension while an injector draws it down
• One switch changes recirculation into aeration, so the same bucket serves chemistry and biologicals
• Aeration holds dissolved oxygen at saturation, which is what keeps nematodes viable in the pail
• Eductor multiplies the moved volume well beyond the 0.7 gpm the pump itself puts out
• Enclosed pump keeps the unit light enough to carry by hand between houses
• Battery cordset clips to any 12 V DC battery, so the bucket runs with no outlet nearby
• Power sets are sold separately, so a damaged cord does not mean a new bucket
• Runs on 120 V or 240 V mains, with the power pack dropping the bucket itself to a safe 12 V DC

Ideal Applications

• Feeding a hand injector with a small batch of water soluble fertilizer
• Applying beneficial nematodes and other aerobic biologicals that need oxygenated stock
• Fungicide, insecticide and growth regulator drenches mixed one pail at a time
• Field and hoop house work off a 12 V battery with no mains outlet
• Replacing a damaged power cord or transformer on a bucket already in service
• Trial and research plots where batch sizes are small and recipes change often

For larger batches the FertiCart Portable Injector Cart carries the same agitation and aeration idea at 20 or 50 gallons, and the FertiCart SprayTrax carts take it outdoors at 50 and 100 gallons.
