TrolMaster - 240V Humidity Device Station (DSH-2)

Brand: TrolMaster

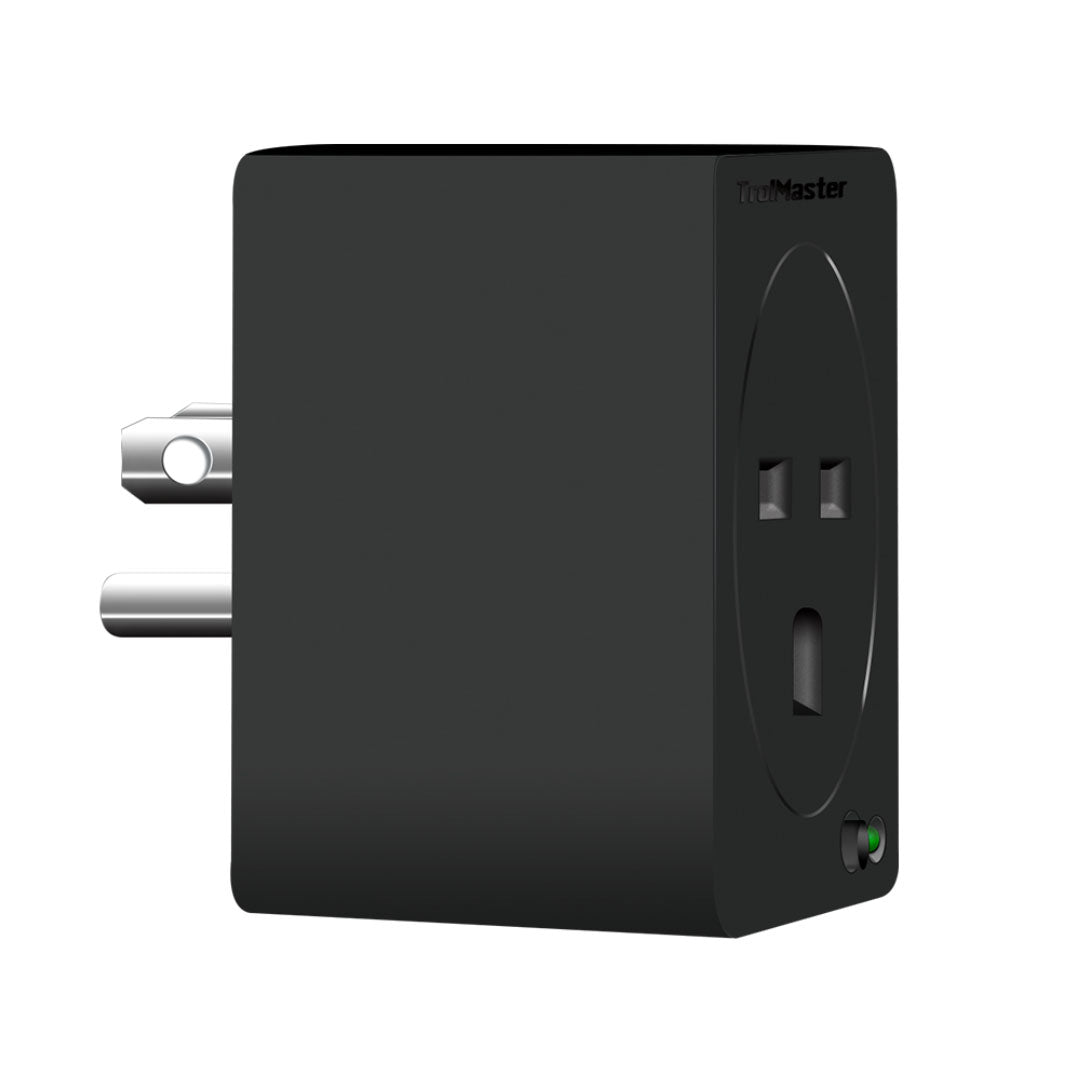

TrolMaster 240V Humidity Device Station (DSH-2)

The TrolMaster DSH-2 is a 240V humidity device station for connecting and controlling standard humidifiers or dehumidifiers with a TrolMaster controller. It is rated at 10 amps. Use it with dehumidifiers that draw less than 7 amps to avoid current overload.

An LED indicator shows addressing, connection, on/off and overload status, and the module button is used to address it on first installation. Pressing and holding the button provides manual on/off override. The DSH-2 includes an RJ12 cable set for plug-and-play connection.

Available Options

• Model: DSH-2 (240V)
• Includes: device station, 16ft RJ12 cable, 4ft RJ12 cable, RJ12 T-splitter

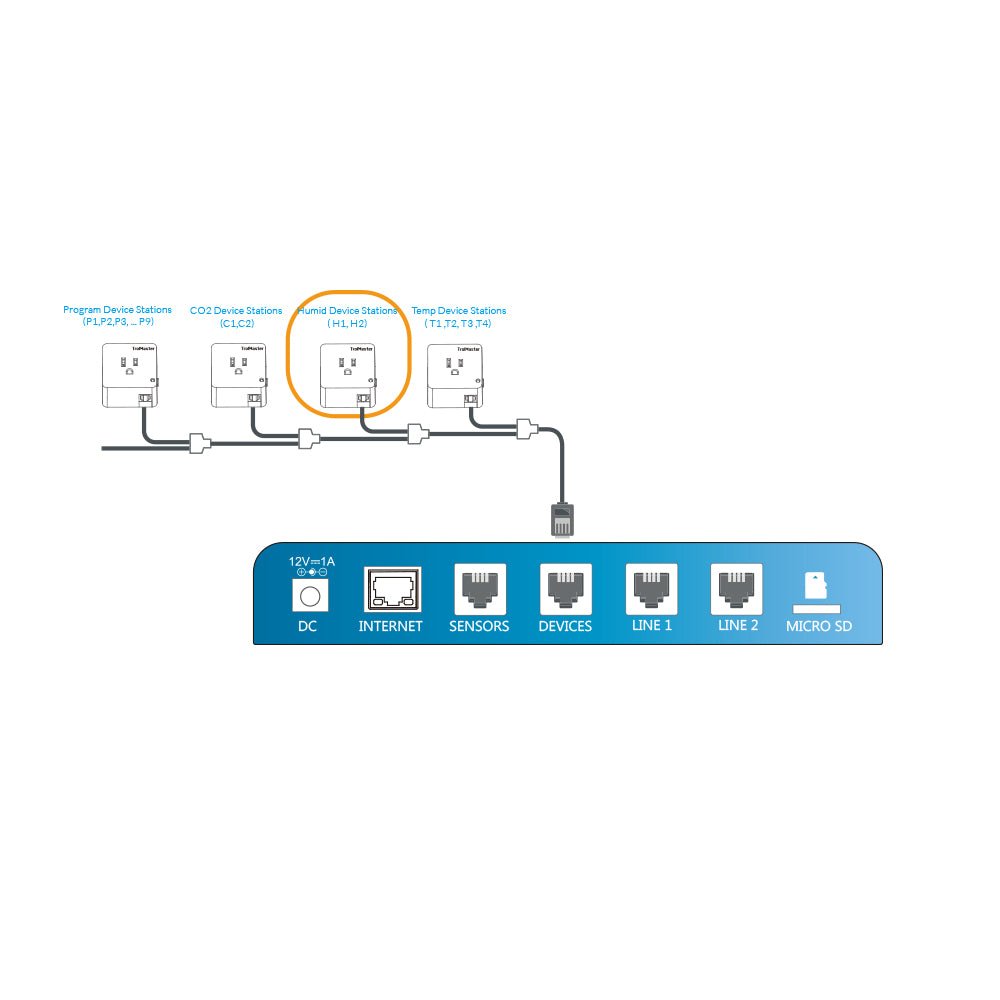

• Compatible controllers: Hydro-X (HCS-1), Hydro-X Pro (HCS-2), Hydro-X Plus (HCS-3), Tent-X (TCS-1)

Key Features

• Controls 240V humidifiers or dehumidifiers
• Input/output voltage: 240VAC, 50/60Hz; output current 10A
• Use with dehumidifiers under 7A
• LED status indicator with overload warning
• Addressing button with manual override
• Working temperature: 32 to 122 deg F; working humidity under 90%

Ideal Applications

• 240V dehumidifiers in commercial grow rooms
• Humidity staging with Hydro-X or Tent-X controllers
• Indoor cultivation climate control
