TrolMaster - Thermostat Station (TS-1)

Brand: TrolMaster

TrolMaster Thermostat Station (TS-1)

The TrolMaster TS-1 Thermostat Station is designed to replace the thermostat on a conventional cool-only HVAC unit. It wires to the HVAC system with the same low-voltage thermostat cable and uses standard color-coded wiring found on most thermostats.

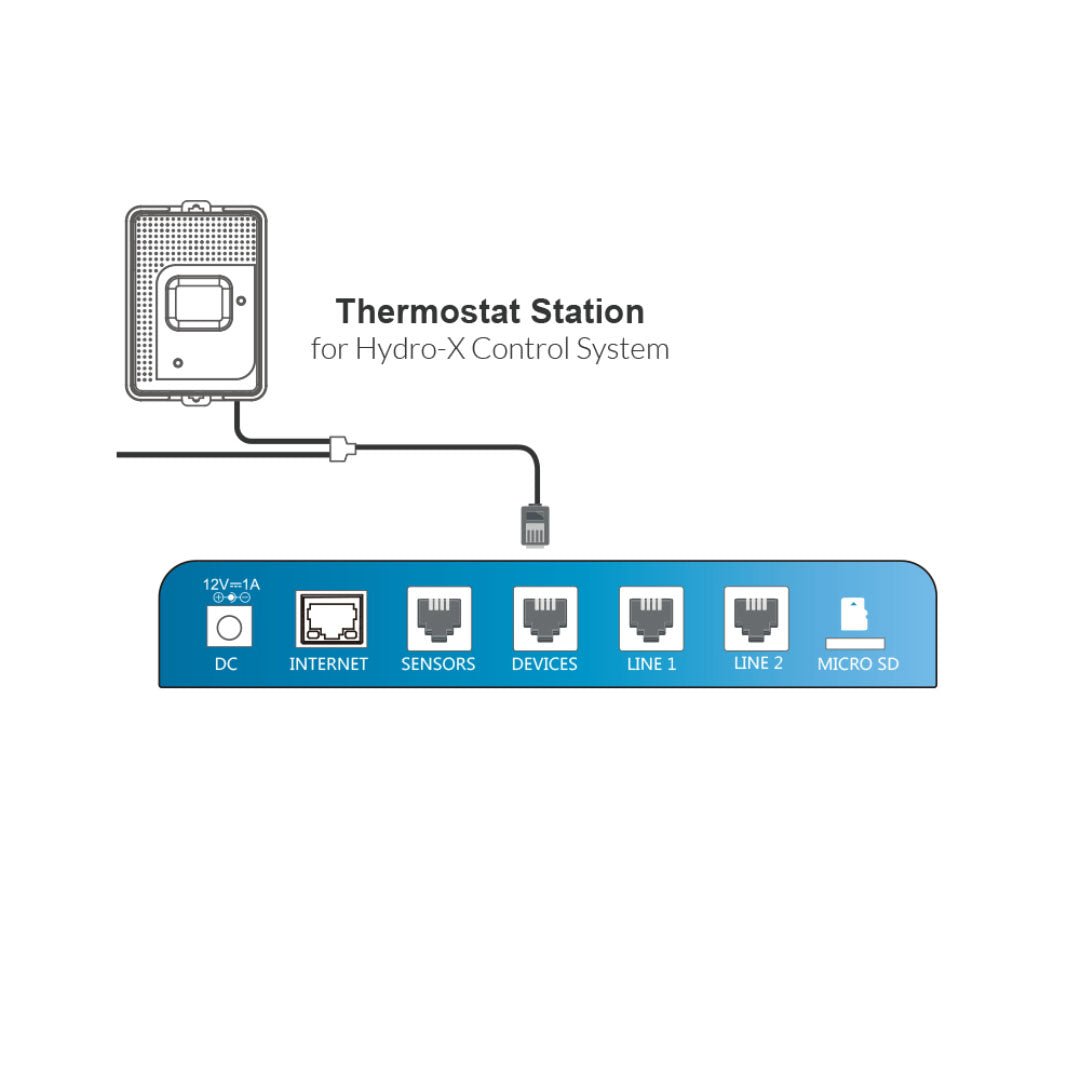

The Hydro-X allows separate day and night settings for each of up to 4 TS modules, so multiple HVAC systems can be controlled from one Hydro-X system. The TS-1 is specifically intended for cool-only commercial AC units.

Available Options

• Model: TS-1

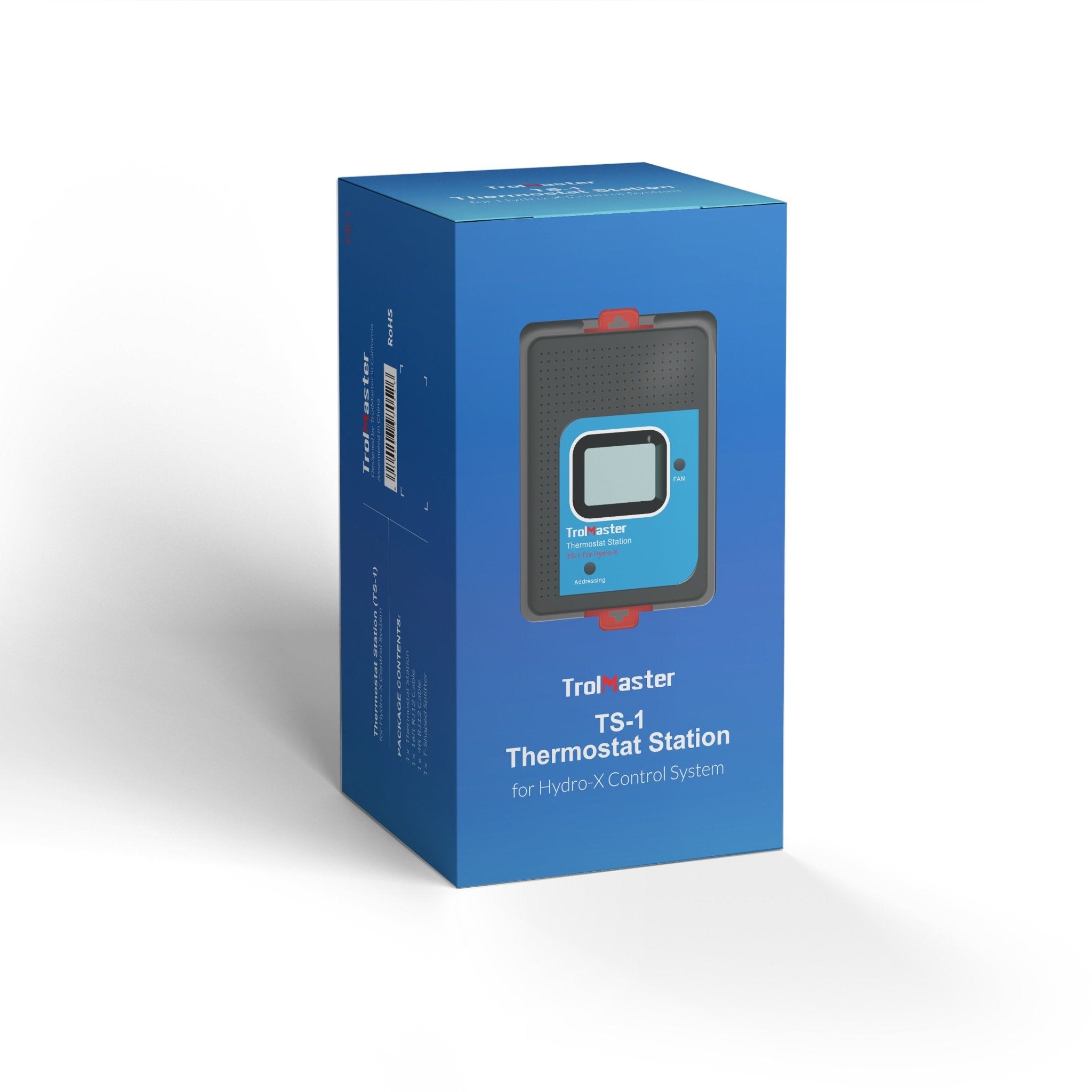

• Includes: thermostat station, 16 ft RJ12 cable, 4 ft RJ12 cable and T-shaped splitter
• Compatible controllers: HCS-1, HCS-2, HCS-3

Key Features

• Replaces a conventional thermostat on cool-only HVAC
• Standard color-coded low-voltage thermostat wiring
• Separate day/night settings for up to 4 TS modules per Hydro-X
• LCD display, address assignment and plug-and-play operation
• Micro-SD for firmware upgrade (32GB or less)
• Input voltage: 12 VAC; maximum current: 0.1A; working environment: 32 to 122 deg F, 90% humidity or less

Ideal Applications

• Integrating cool-only commercial AC units with Hydro-X climate control
• Facilities running multiple HVAC systems from a single controller
