TrolMaster - Thermostat Station 2 (TS-2)

Brand: TrolMaster

TrolMaster Thermostat Station 2 (TS-2)

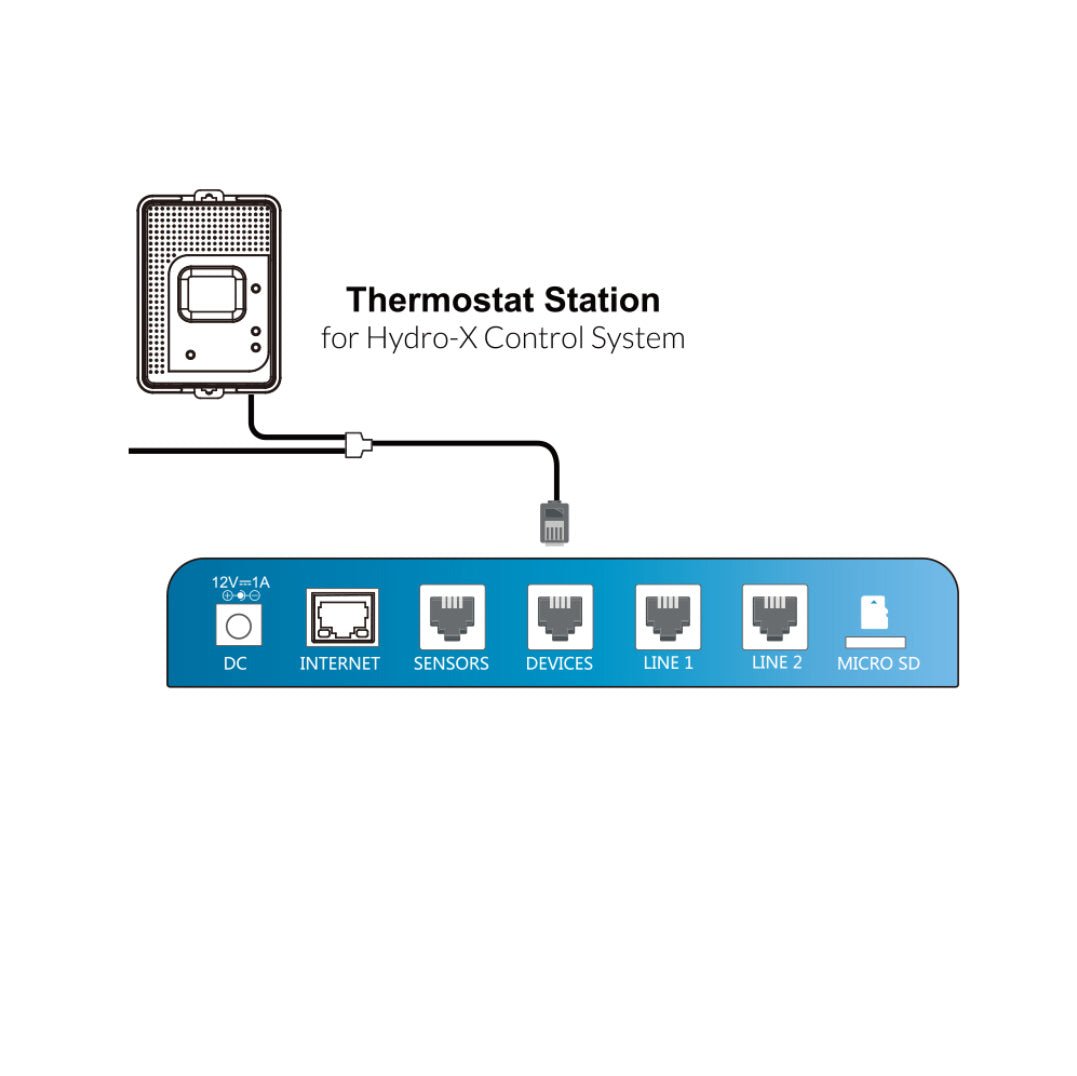

The TrolMaster TS-2 thermostat station replaces the thermostat on a standard HVAC unit so the system can be run by a TrolMaster controller. It controls most HVAC systems, including heat pump and multi-stage systems. The TS-2 wires in with the same low-voltage thermostat cable and standard color-coded wiring as most thermostats.

The Hydro-X allows separate day and night settings for each of up to four TS modules, so multiple HVAC systems can be run from one controller. An adjustable delay for each HVAC system minimizes high start-up inrush current and allows up to 4 HVAC systems to be safely controlled. Firmware updates require a Micro SD card of 32GB or less.

Available Options

• Model: TS-2
• Includes: thermostat station, 16ft RJ12 cable, 4ft RJ12 cable, T-shaped splitter
• Compatible controllers: Hydro-X (HCS-1), Hydro-X Pro (HCS-2), Hydro-X Plus (HCS-3), Tent-X (TCS-1)

Key Features

• Works with heat pump and conventional multi-stage HVAC
• Standard color-coded low-voltage thermostat wiring
• Separate day and night settings
• Adjustable start delay to reduce inrush current
• LCD display, address assignment, plug and play
• Micro SD slot for firmware upgrades
• Output voltage: 24V; maximum current 1A
• Working temperature: 32 to 122 deg F; working humidity up to 90%

Ideal Applications

• HVAC control in indoor cultivation rooms
• Facilities with up to four HVAC units on one controller
• Hydro-X and Tent-X climate systems
