TrolMaster - Humidistat Station (HS-1)

Brand: TrolMaster

TrolMaster Humidistat Station (HS-1)

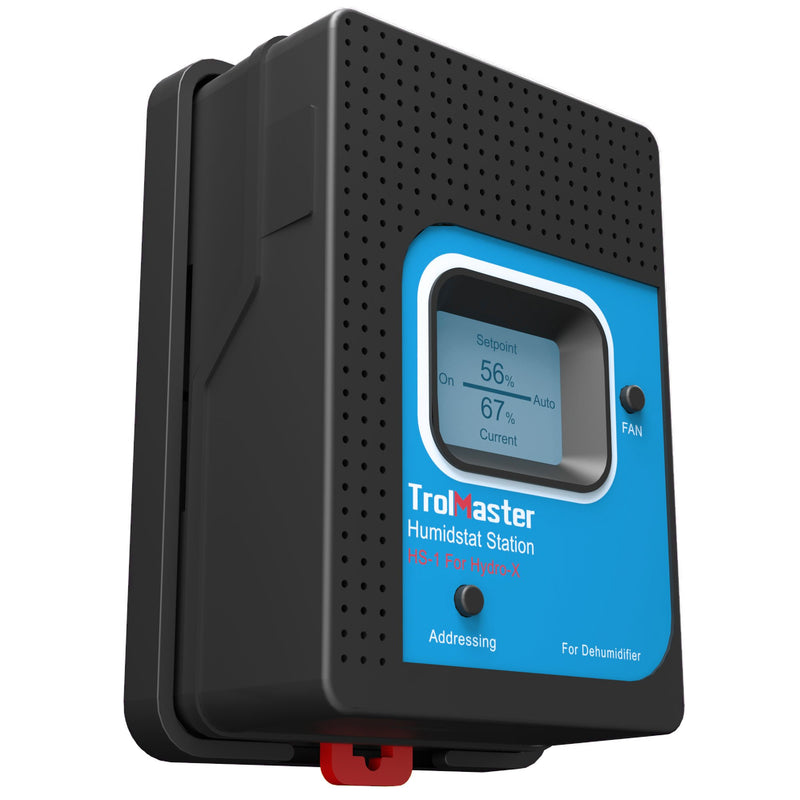

The TrolMaster HS-1 Humidistat Station controls commercial dehumidifiers through their low-volt (24V terminal) control option. It works and is wired exactly like an external humidistat.

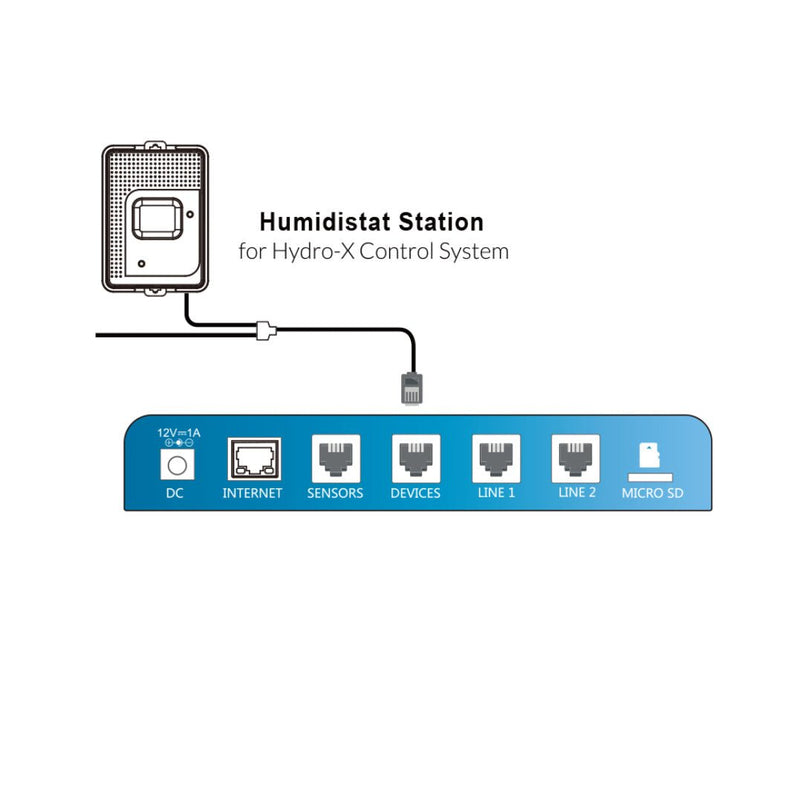

By using the dehumidifier's low-volt control, the HS-1 eliminates the need to switch the high-amperage inrush current associated with dehumidifiers. It connects to the Hydro-X with RJ12 cables and is plug and play.

Available Options

• Model: HS-1
• Includes: Humidistat Station, 16 ft RJ12 cable, 4 ft RJ12 cable, T-shaped splitter
• Compatible controllers: HCS-1, HCS-2, HCS-3

Key Features

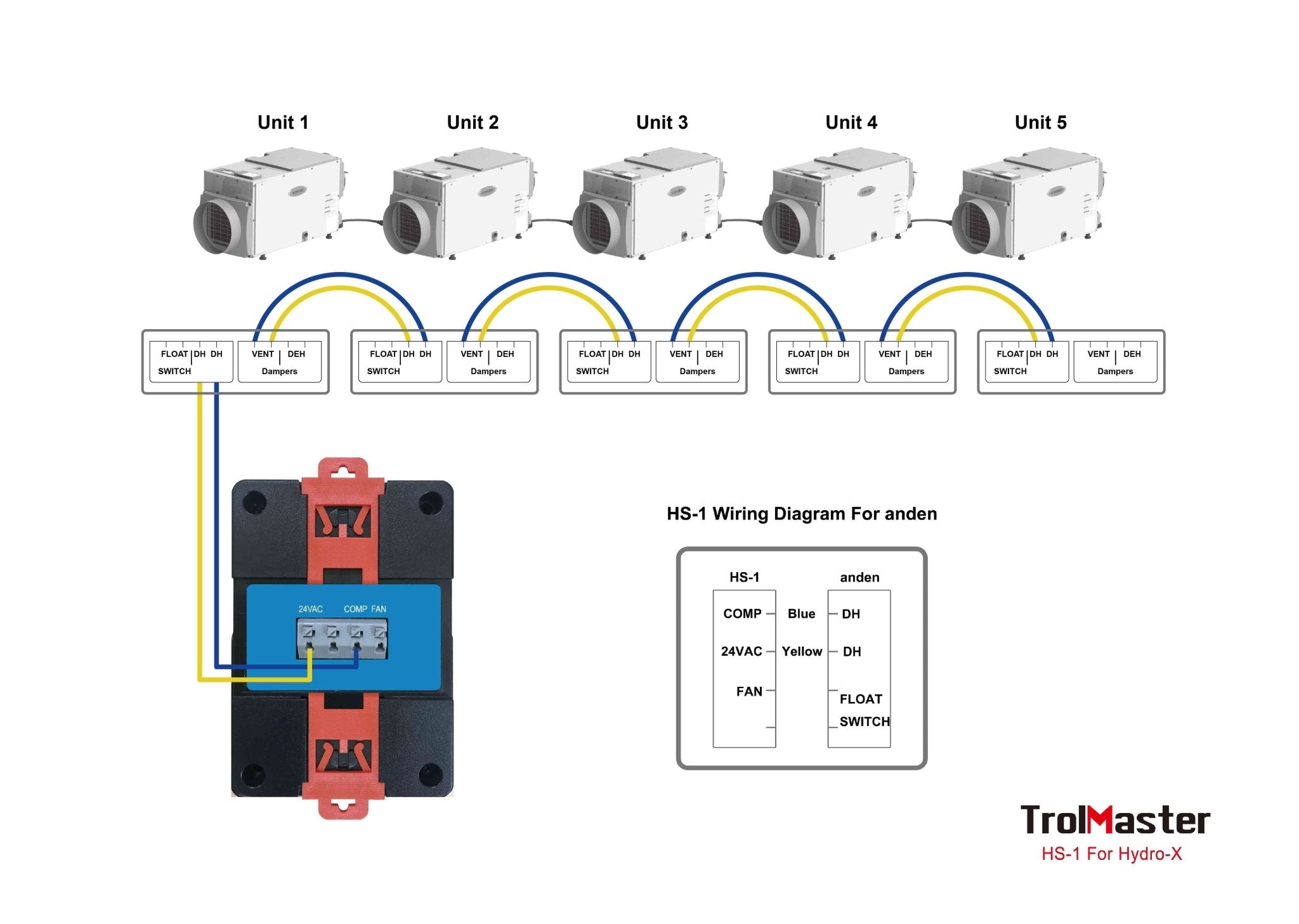

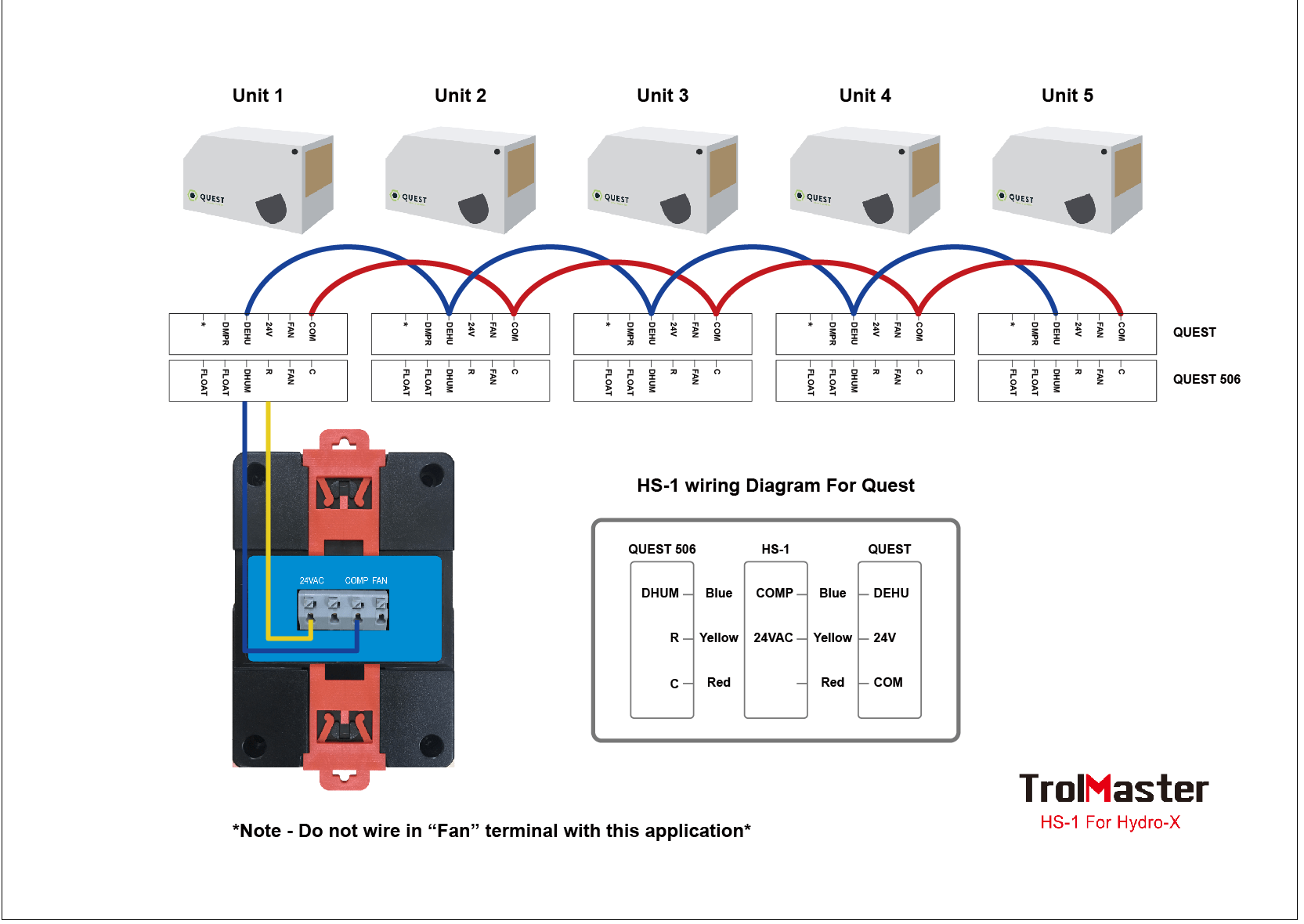

• Wired like an external humidistat for dehumidifiers with a 24V terminal
• Avoids switching high-amperage inrush current
• LCD display and easy operation
• Seamless connection with Hydro-X; plug and play
• Address assignment and micro-SD firmware upgrades
• Input voltage: 12 VAC; maximum current 0.1A
• Working environment: 32 to 122 deg F, 90% humidity or less

Ideal Applications

• Controlling commercial dehumidifiers in indoor cultivation rooms
• Humidity management with TrolMaster Hydro-X systems
