TrolMaster - AC Remote Station (ARS-1)

Brand: TrolMaster

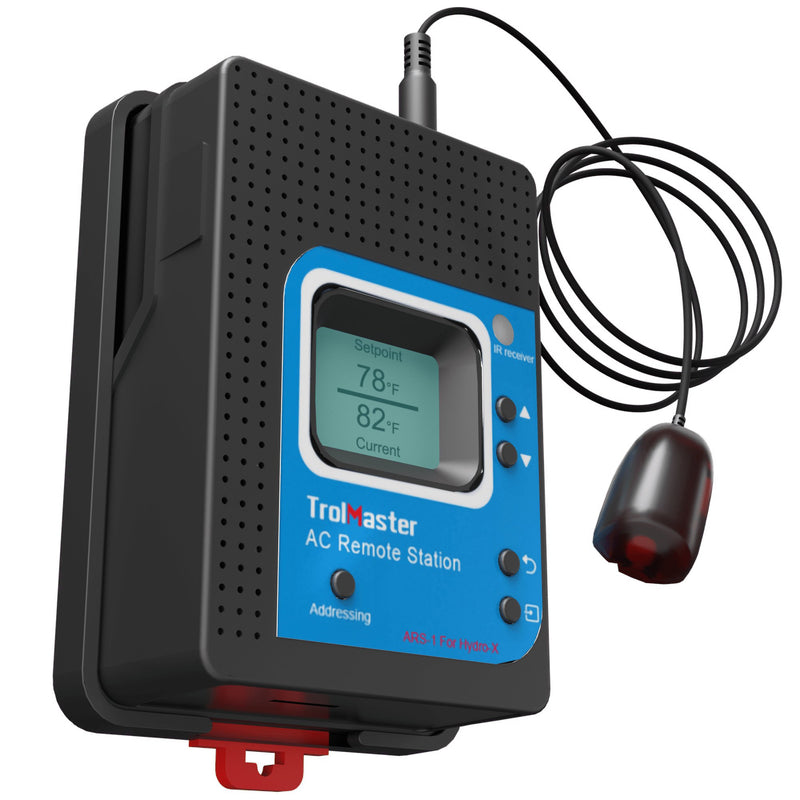

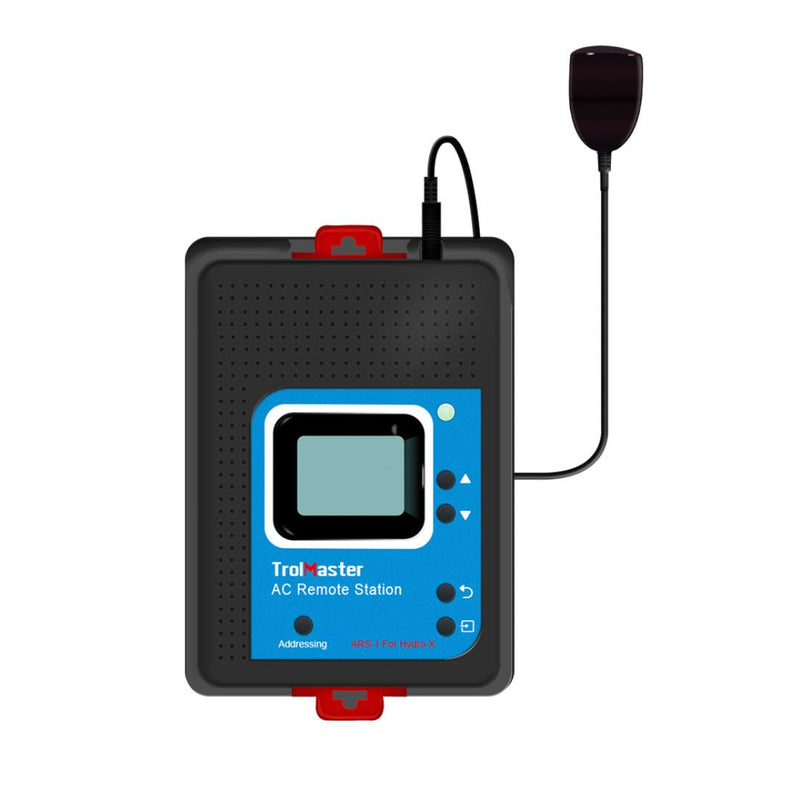

TrolMaster AC Remote Station (ARS-1)

The TrolMaster ARS-1 AC Remote Station solves the problem of separate day and night temperature settings on mini-split air conditioners. It is a universal controller that works with most mini-split units, and some window-type units, as long as the unit came with an IR (infrared) remote.

The original remote is used to teach its IR signals to the ARS-1. Once learned, the ARS-1 sends those signals to the indoor head unit and changes the setpoint to the desired day or night temperature automatically based on the photocell sensor status.

Available Options

• Model: ARS-1
• Includes: AC Remote Station, 16 ft RJ12 cable, 4 ft RJ12 cable, T-shaped splitter
• Compatible controllers: HCS-1, HCS-2, HCS-3, TCS-1

Key Features

• Learns IR codes from the original AC remote
• Automatic day/night setpoint switching
• LCD display and easy operation

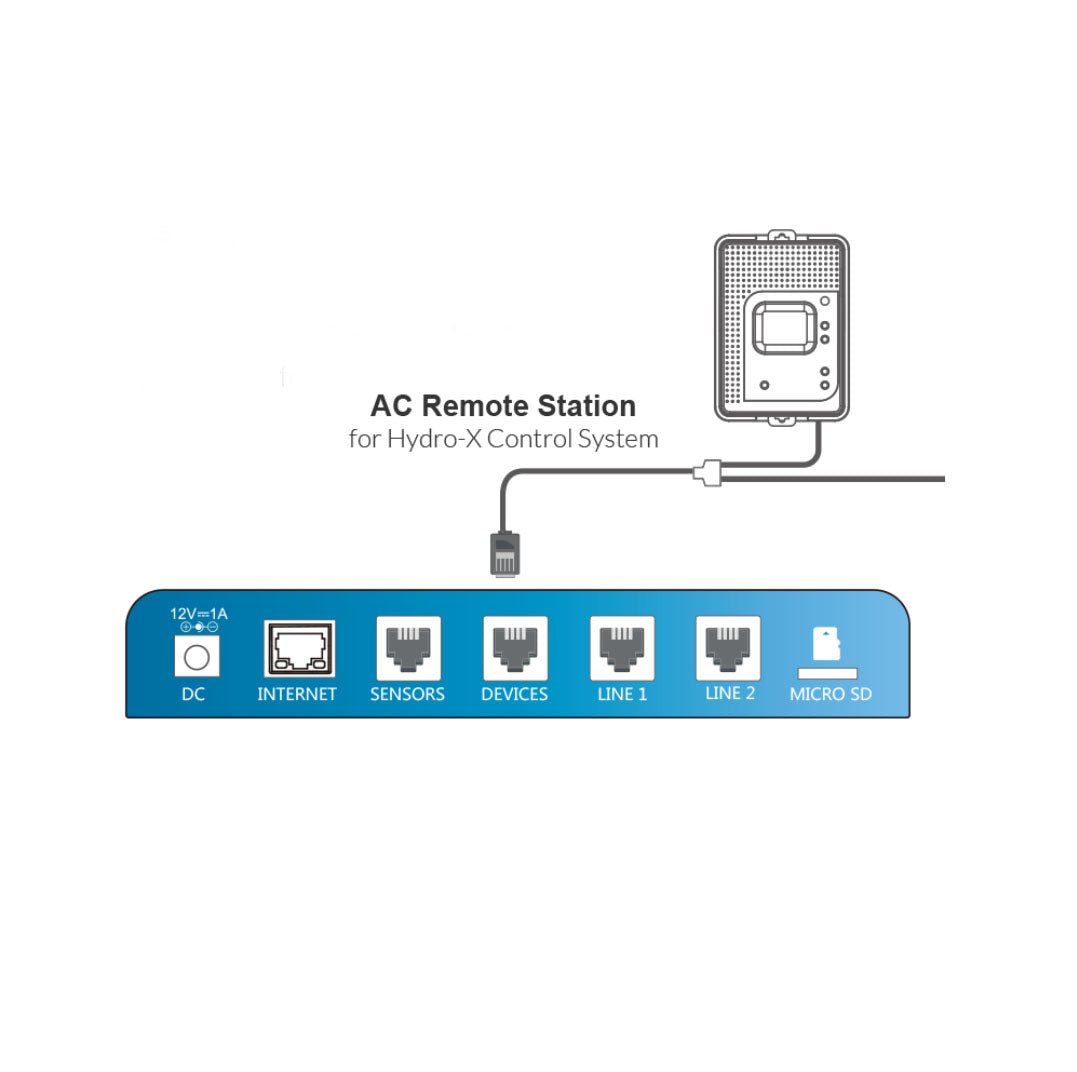

• Seamless connection with Hydro-X; plug and play
• Address assignment and micro-SD firmware upgrades
• Input voltage: 12 VAC; maximum current 0.1A
• Working environment: 32 to 122 deg F, 90% humidity or less

Ideal Applications

• Day/night temperature control of mini-split air conditioners in grow rooms
• Integrating IR-remote AC units into a TrolMaster control system
