TrolMaster - CO2 Emergency Stop Station (DSE-1)

Brand: TrolMaster

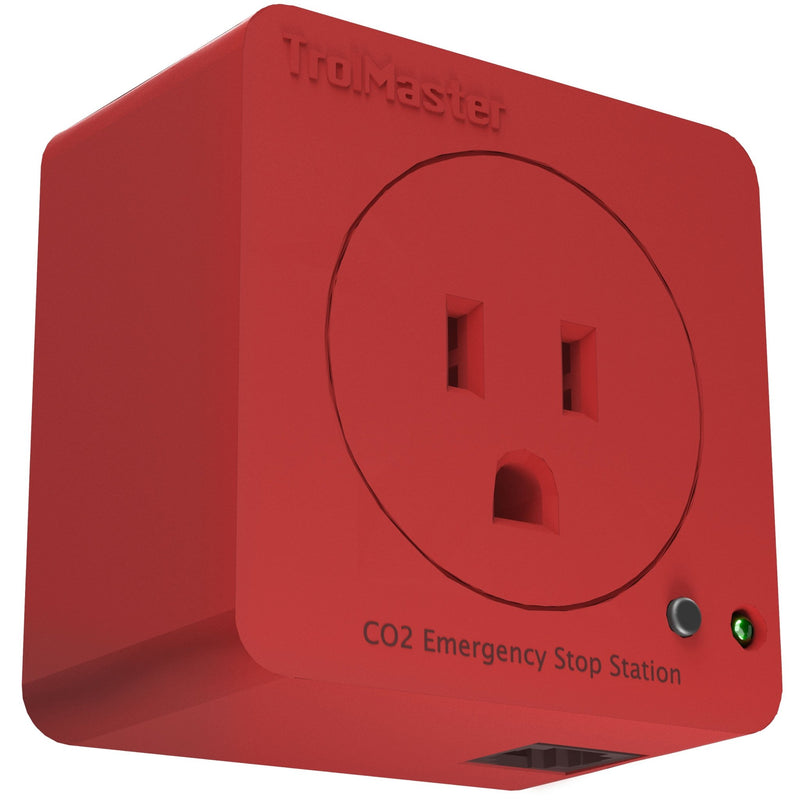

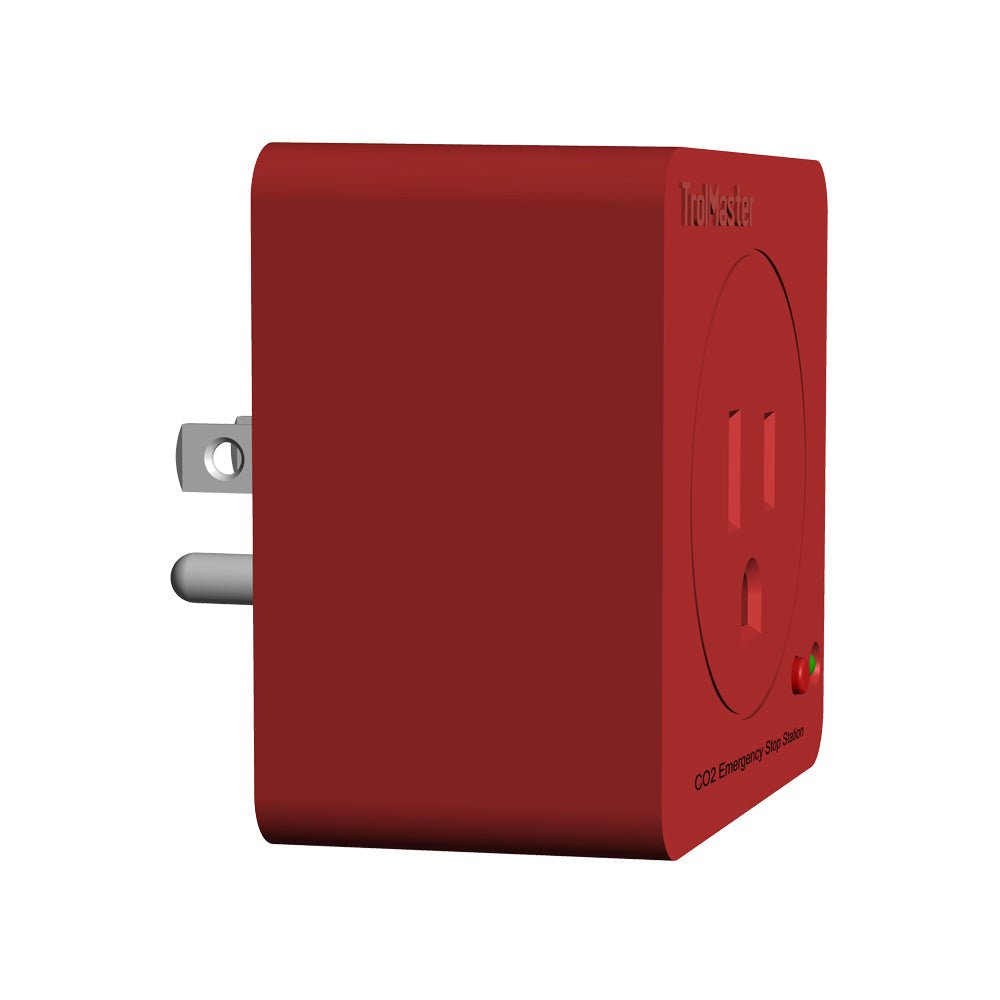

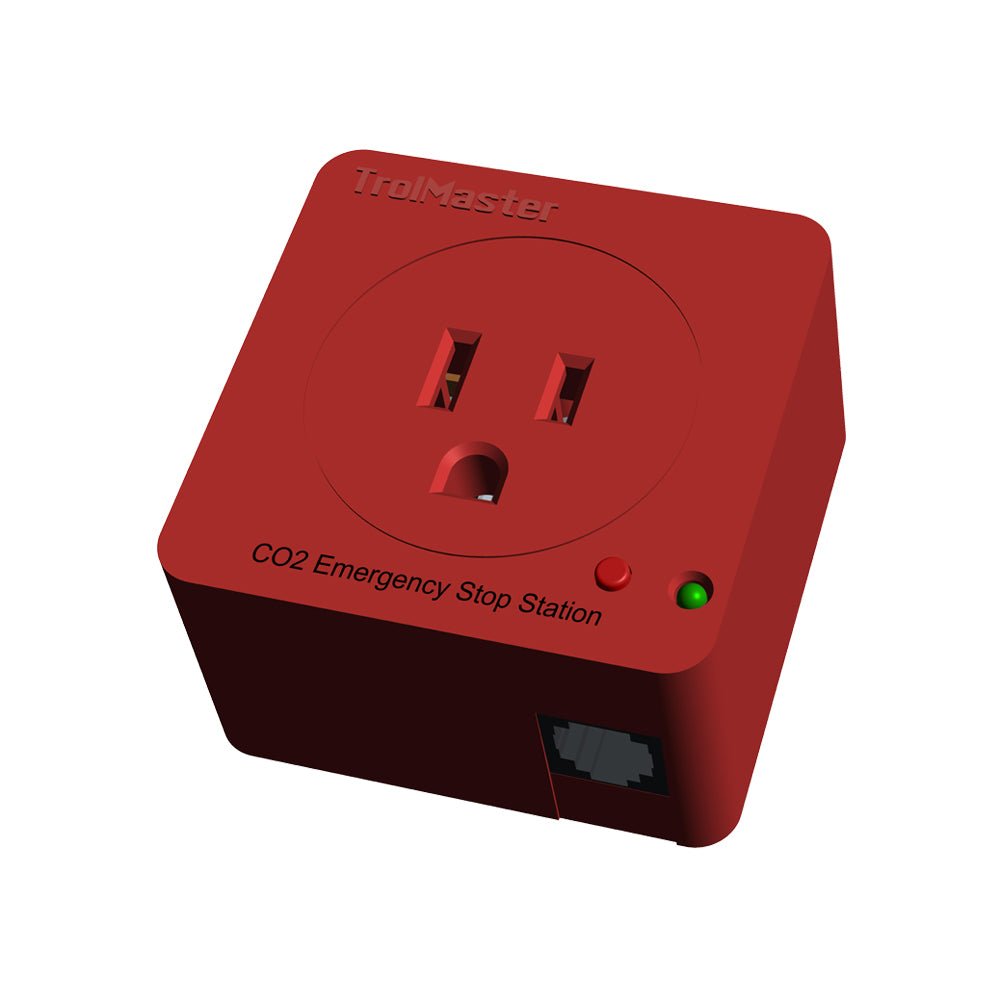

TrolMaster CO2 Emergency Stop Station (DSE-1)

The TrolMaster DSE-1 CO2 Emergency Stop Station provides a simple way to shut off the CO2 supply when a fault or high CO2 level is detected. It is a 120V controlled outlet that powers CO2 solenoid valves during normal operation.

The Carbon-X automatically cuts power to the DSE-1 if a fault or high CO2 level is detected by any installed CO2 sensor, and power is also disabled if the DSE-1 loses communication with the controller. A status LED shows addressing, on/off and overload conditions.

Available Options

• Model: DSE-1
• Includes: emergency stop device station, 16 ft RJ12 cable, 4 ft RJ12 cable and RJ12 T-splitter
• Compatible controllers include: HCS-2, HCS-3, NFS-2, NFS-3

Key Features

• Automatic CO2 supply shutoff on fault or high CO2 level
• Fail-safe: power disabled if communication with the controller is lost
• Output current: 10A
• Input/output voltage: 100 to 240 VAC, 50/60Hz
• LED power indicator, RJ12 socket, addressing and plug-and-play setup
• Working environment: 32 to 122 deg F, 90% humidity or less

Ideal Applications

• CO2 safety systems with the TrolMaster Carbon-X
• Powering CO2 solenoid valves in CO2-enriched cultivation rooms
