TrolMaster - CO2 Alarm Station (AS-1)

Brand: TrolMaster

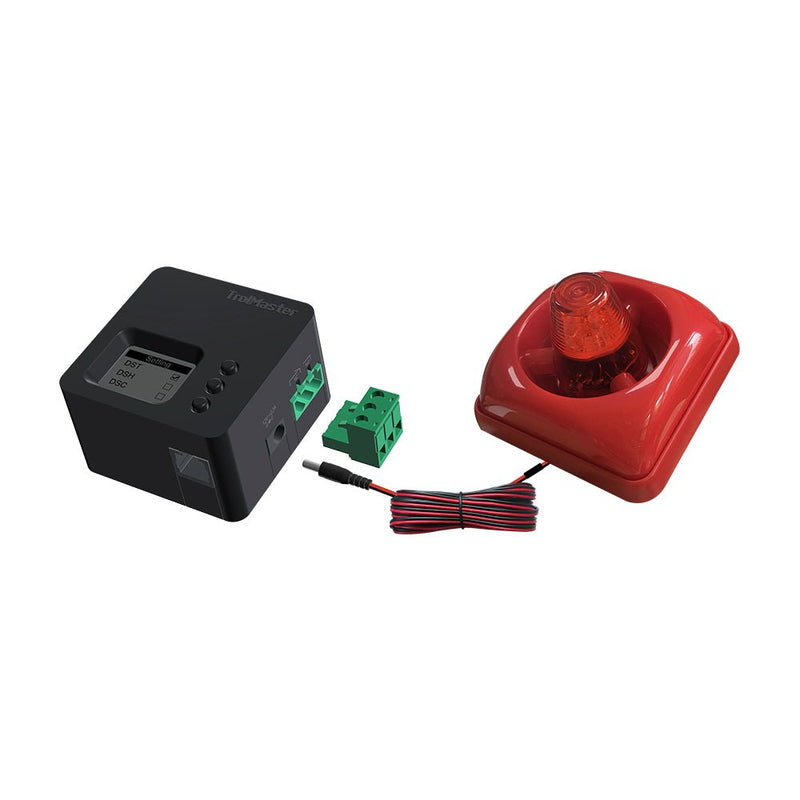

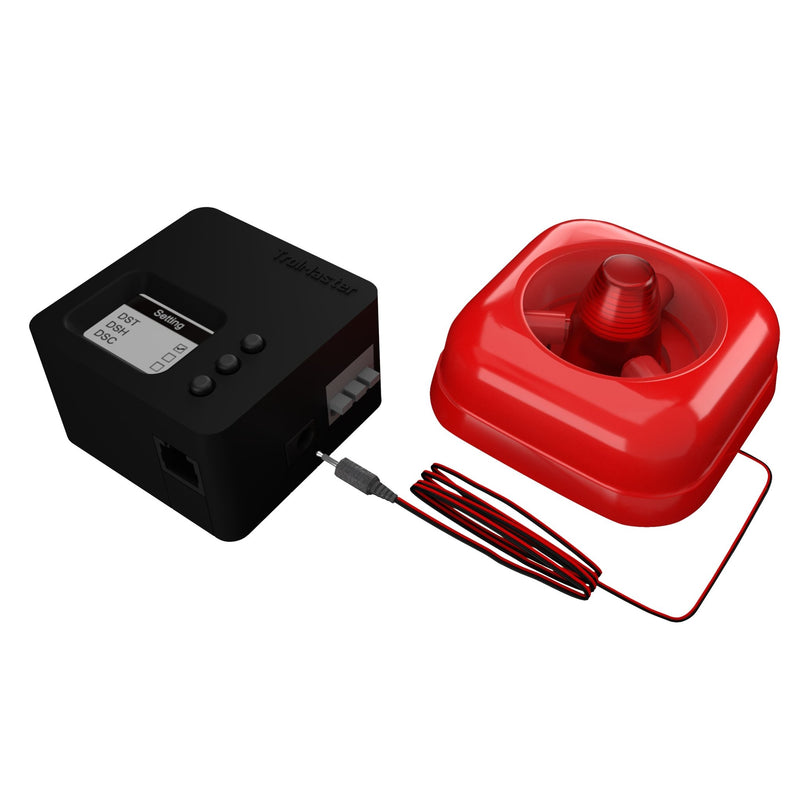

TrolMaster CO2 Alarm Station with Cable Set (AS-1)

The AS-1 CO2 Alarm Station set combines the DSD-1 dry contact station with the AS-5 audible-visual alarm. Mounted inside or outside the monitored room, it sounds both audible and visible alarms when CO2 levels rise above normal or safe levels.

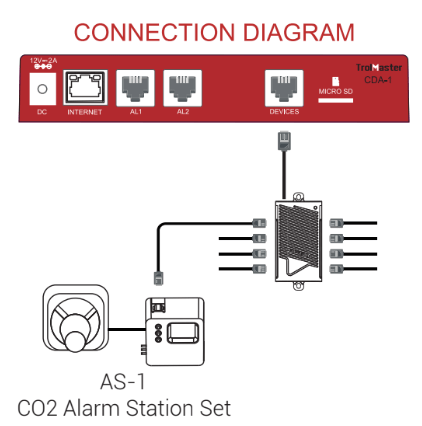

Connected to the Devices RJ12 port and paired with the CDA-1, the AS-1 can be linked to either the AL-1 or AL-2 CO2 sensor channel, or to both for complete redundancy. An extra dry contact output is included for additional alarm integration.

Available Options

• Model: AS-1
• Includes: DSD-1, AS-5 Alarm, 16ft RJ12 Cable, 4ft RJ12 Cable, RJ12 T-Splitter
• Compatible controller: CDA-1

Key Features

• 85dB siren and red strobe (120 FPM)
• Extra dry contact output: 30VDC / 250VAC, 6A
• Plug and play
• Input voltage: 100~240 VAC, 50/60Hz
• Output: 24V, 0.2A
• Working temperature: 32 to 122 deg F, humidity 90% or less

Ideal Applications

• Room-level CO2 alarms for Carbon-X (CDA-1) systems
• CO2 safety for personnel in facilities using supplemental CO2
