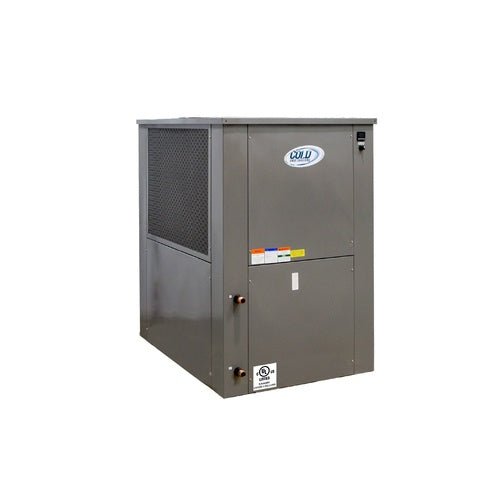

5 Ton Low Temp Glycol Chiler

SKU: CSAC-060-C_-LT-IND-2

$14,500.00
Electrical:
Quantity:

Discover the Cold Shot Chillers® advantage.  Crafted for reliability and user-friendly operation,  These portable air-cooled chillers are proudly manufactured in the USA, utilizing proven components and backed by round-the-clock support from a network of technicians in the US.

Engineered for a lifetime of service, these chillers ensure precise temperature control. Robust compressors paired with a generous reservoir deliver impressive cooling capacities, keeping your operations smooth even during the hottest months.

Choose Cold Shot Chillers® for a reliable, long-lasting cooling solution.

Key Features:

  1. Integrated Controls:

    • PLC controlled with self-diagnostics.
    • WIFI/LAN/LTE connectivity for predictive maintenance through Guardian™ app.
    • Email/text notifications for predictive maintenance milestones, technical alarms, fault codes, and alerts.
  2. Quality Construction:

    • Copeland Scroll technology for efficiency.
    • Stainless Steel/Copper Braze Plate for durability.
    • External Brass Service Valves for easy maintenance.
    • Large Copper Condensing Coil with Aluminum Fins or Micro Channel for effective cooling.
    • Powder-Coated, Heavy-Gauge Steel Cabinet for rugged protection.
  3. Additional Specifications:

    • Rugged Stainless Steel Centrifugal Pumps for high flow and dependability.
    • Oversized Magnetic Contactors for longevity.
    • Lifetime Warranty for peace of mind.

Benefits:

  • Long Life – Dependable – Economical to Operate.
  • Compact Efficiency for space-saving installations.
  • Easy Maintenance and Repair for user-friendly operation.
  • Rugged Protection while allowing for easy maintenance and wash down.
  • High Flow – Long Life – Dependable performance.
  • Rugged Dependability with a Lifetime Warranty.

    Specifications:

    • 5 tons (60,000 BTU/17.5KW)
    • 25 Gallon Stainless Steel Reservoir Tank with Lid
    • This Low Temp Model has a leaving fluid temperature range of 20F-70F/-6C-21C.
    • Rated to 0°F ambient temperature*
    • 1” MNPT Inlet and Outlet
    • Stainless Steel 1 HP Centrifugal Pump outputs 30 GPM at 30 PSI
    • Single Phase (230V/1P/60HZ/47.2A) and Three Phase (230V/3P/60HZ/35.1A) power available
    • Casters Included (two swivel locking and two fixed)
    • Large Reservoir easily filled from outside, and level indicated with sight gauge
    • 1-Year Parts Warranty
    • 5-Year Warranty on Compressor
    • Welded steel powder-coated frame and full metal cabinet with copper piping connections
    • Digital Temperature controller with Self-Diagnostic control system
    • Rugged Protection, while still easy to maintain and Wash Down
    • High Flow Pump, Long Life, Dependable units!
    • Stainless Steel Plate Evaporators Vacuum brazed with Copper
    • Dependable Copeland Welded hermetic Scroll Compressors
    • 50.5"x38.5"x57"
    • 500 lb
    • UL Certified

    Please Note:  This unit REQUIRES  a qualified electrician to wire the necessary plug to the cord.

    *Please Note: This unit is rated for indoor use only. If you require a chiller rated for outdoor use, please contact our customer service department to request a special order. Cold Shot Chillers are available suitable for outdoor use with ambient temperature ratings as low as -20F.
