TrolMaster - 240v Temp Device Station, Temp Control Relay Pack w/cable set (DST-2)

Brand: TrolMaster

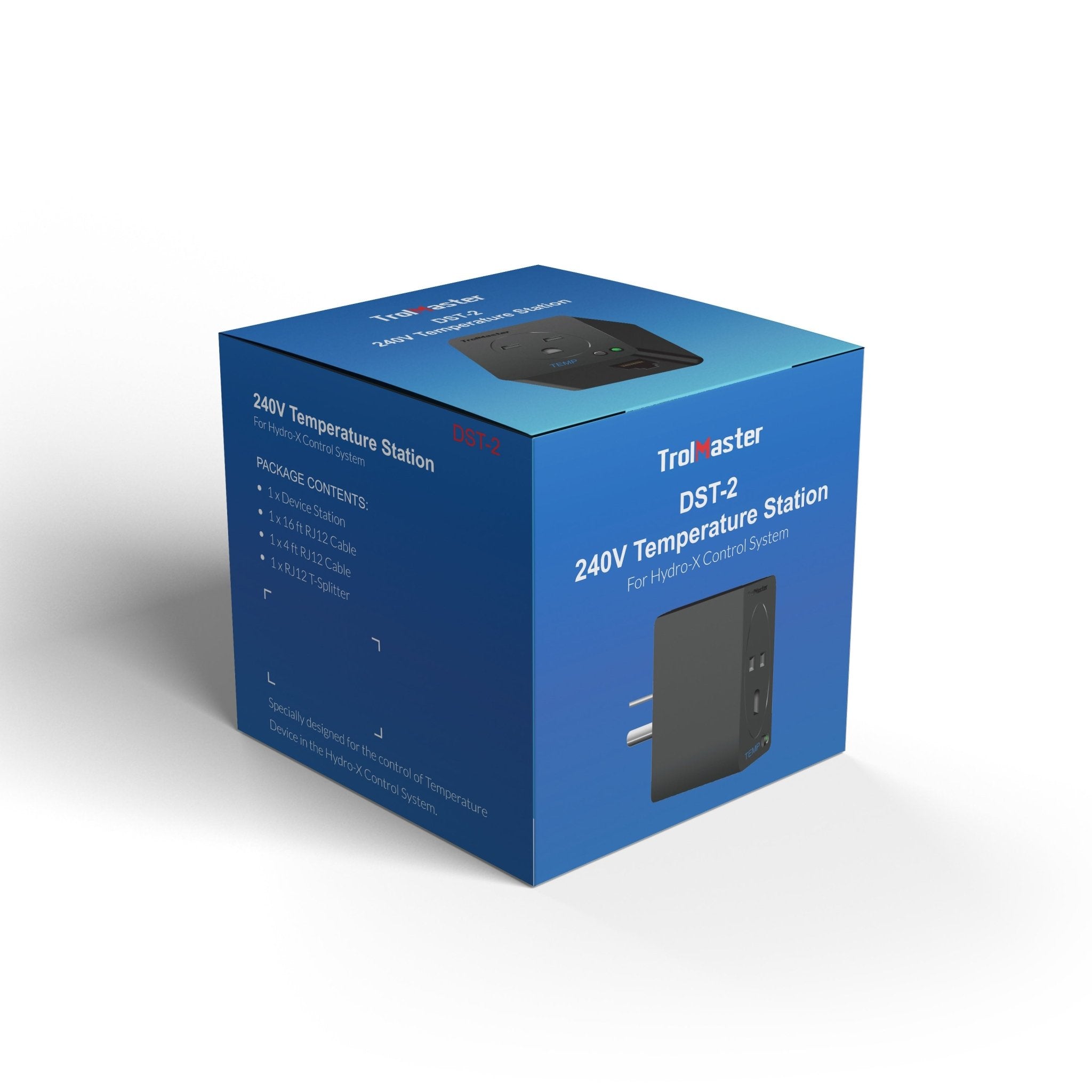

TrolMaster 240V Temperature Device Station (DST-2)

The DST-2 temperature control module lets operators easily connect and control standard heating or cooling devices from the Hydro-X. Any heating or cooling device rated 10 amps at 240 volts or less can be controlled by the DST-2.

The module connects to the controller with RJ12 cable and is addressed with a button on the unit. Status LEDs show whether the module is addressed, on, off or overloaded, and pressing and holding the button manually overrides the module on or off. US versions use 240V NEMA type plugs.

Available Options

• Model: DST-2
• Includes: Device Station, 16ft RJ12 Cable, 4ft RJ12 Cable, RJ12 T-Splitter
• Compatible controllers: HCS-1, HCS-2, HCS-3, TCS-1

Key Features

• Controls heating or cooling devices up to 10A at 240V
• LED status indicator
• RJ12 cable socket
• Addressing and plug and play setup
• Manual on / off override button
• Input / output voltage: 240 VAC, 50/60Hz
• Working temperature: 32 to 122 deg F, humidity under 90%

Ideal Applications

• 240V heaters, air conditioners and cooling equipment on TrolMaster systems
• Temperature automation in commercial indoor cultivation rooms
