Scilogex

SCILOGEX SCI550-Pro LCD Digital 7 x 7 Magnetic Hotplate Stirrer, ceramic-glass plate, 110V, 50/60Hz US Plug

SKU: 813223009999

$654.00

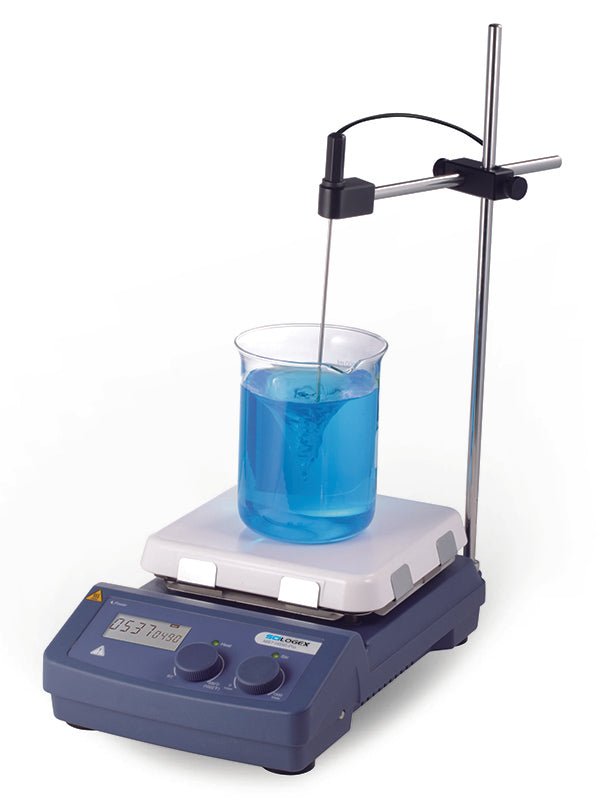

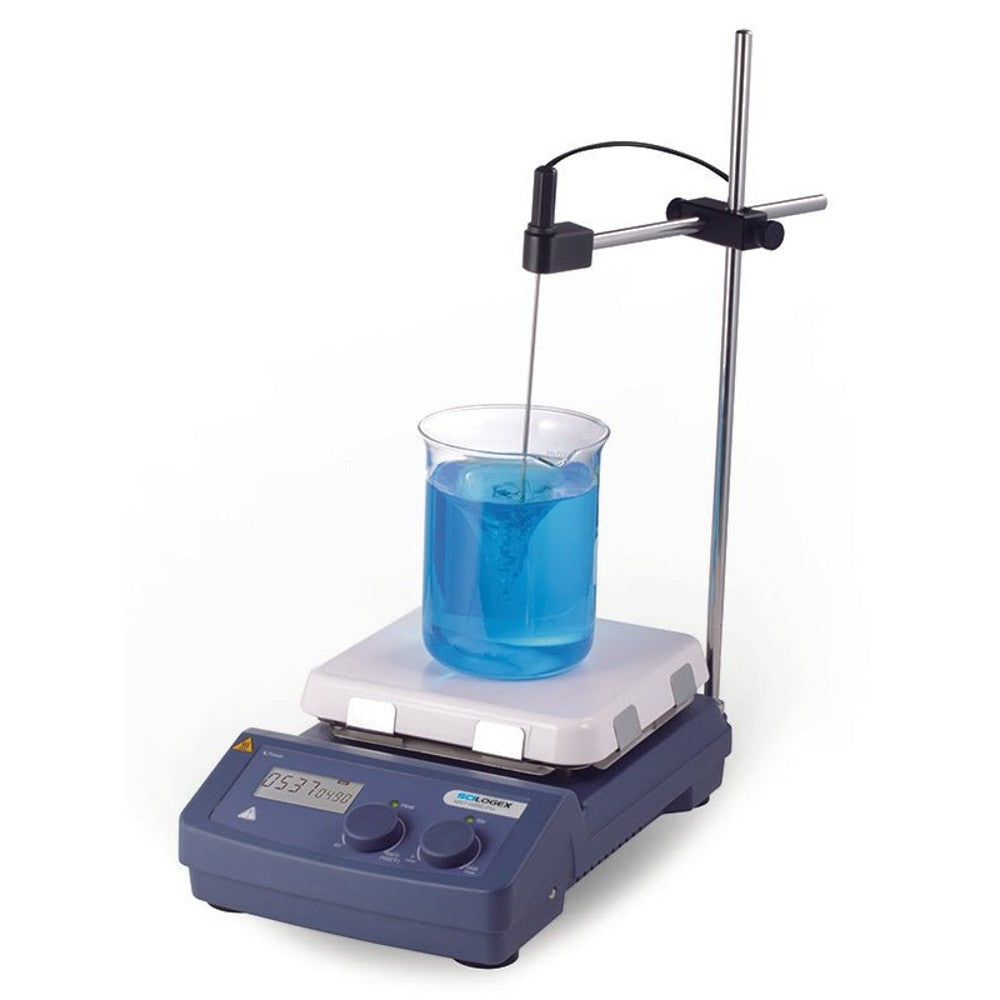

W/ Sensor and Sensor Stand:
Quantity:

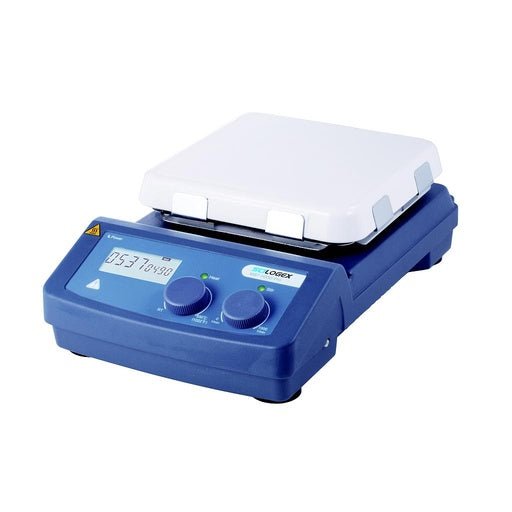

SCILOGEX SCI550-Pro 7x7 LCD Digital Hotplate Stirrer 550ºC/1500rpm Max

Product Description

The SCI550-Pro is one of the most technically advanced hotplate-stirrers in the marketplace. With independent back-lit LCD displays for both heat and stirring functions and PID technology. The SCI550-Pro controls temperature at +/- 1ºC. It also incorporates a DC brushless (spark free) motor for extremely long life and excellent performance. It is widely used in chemical synthesis, physical and chemical analysis, biopharmaceuticals etc. Combining with glass ceramic work plate, brushless DC motor and external temperature sensor, the work plate temperature is optimized up to 550°C.

Product Features

  • Easy-to-read independent back-lit LCD displays for heat and stirring.
  • Digital speed controlling, max. speed at 1500rpm
  • Built-in PID controller ensures safe heating of the medium with overheating protection.
  • Heat only, stir only or heat and stir together functions.
  • Max. heating plate temperature 550°C
  • Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer.
  • RS232 for remote control, providing PC control and data transmission.
  • Low temperature stability
  • External temperature control is possible by connecting the temperature sensor (PT1000) with an accuracy at ±0.2°C.
  • Accessory PT-1000 stand available (built in stand mount)
  • Electronic speed control for constant speed even during changes in load
  • Maintenance free DC brushless motor for long life and more stirring power
  • Two rotating knobs enable easy adjustment of speed and temperature.
  • High magnetic adhesion
  • “HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off.
  • cTUVus approved for UL and CSA
  • 2 YEAR WARRANTY



Work plate dimension[W x D] 184x184mm(7 inch)
Work plate material Glass ceramic
Motor type Brushless DC motor
Motor input power 18W
Motor output power 10W
Power 1050W
Heating output 1000W
Voltage 110V, 60Hz
Stirring positions 1
Max. stirring quantity[H2O] 20L
Max. magnetic bar[length] 80mm
Speed range 100-1500rpm, resolution ±1rpm
Speed display LCD
Temperature display LCD
Heating temperature range Room Temp.-550°C, increment 1°C
Temperature control accuracy ±1°C(<100°C) ±1%(>100°C)
Overheating protection 580°C
Overheating protection ±0.1°C
External temperature sensor PT1000 (accuracy ±0.2)
"Hot" warning 50°C
Data connector RS232
Protection class IP21
Dimension[WxDxH] 215x360x112mm
Weight 5.3kg
Permissible ambient temperature and humidity 5-40°C, 80%R
