Spears - True Union 2000 Standard Ball Valve, PVC, Socket/FIPT, EPDM

Brand: Spears
Sign in to see your pricing
Sale price$103.47
SKU: BL226463

Size:

Spears True Union 2000 Standard Ball Valve, PVC, Socket/FIPT, EPDM

The Spears True Union 2000 Standard ball valve is a full PVC quarter-turn shutoff with dual union ends supplied with both socket and female NPT end connectors. EPDM O-ring seals and PTFE seats provide positive shutoff, and a T-handle shows valve position at a glance.

True union construction lets the valve body be removed from the line for service without cutting pipe. Spears designs the True Union 2000 family with interchangeable valve cartridges, so a valve can be replaced in-line using the existing union nuts.

Available Options

  • 3/4 in - Spears 3629-007
  • 1 in - Spears 3629-010
  • 1-1/2 in - Spears 3629-015
  • 2 in - Spears 3629-020

Key Features

  • 235 psi pressure rating at 73 F, 140 F max temperature
  • PVC body, ball and stem with PTFE seats
  • EPDM O-ring seals
  • Socket and female NPT end connectors included
  • Interchangeable True Union 2000 cartridge design
  • NSF approved; ASTM D1784 and F1970, made in the USA

Ideal Applications

  • Zone isolation and equipment shutoff on fertigation manifolds
  • Irrigation mainlines and headers
  • Water treatment and tank plumbing
  • Commercial and controlled-environment agriculture facilities

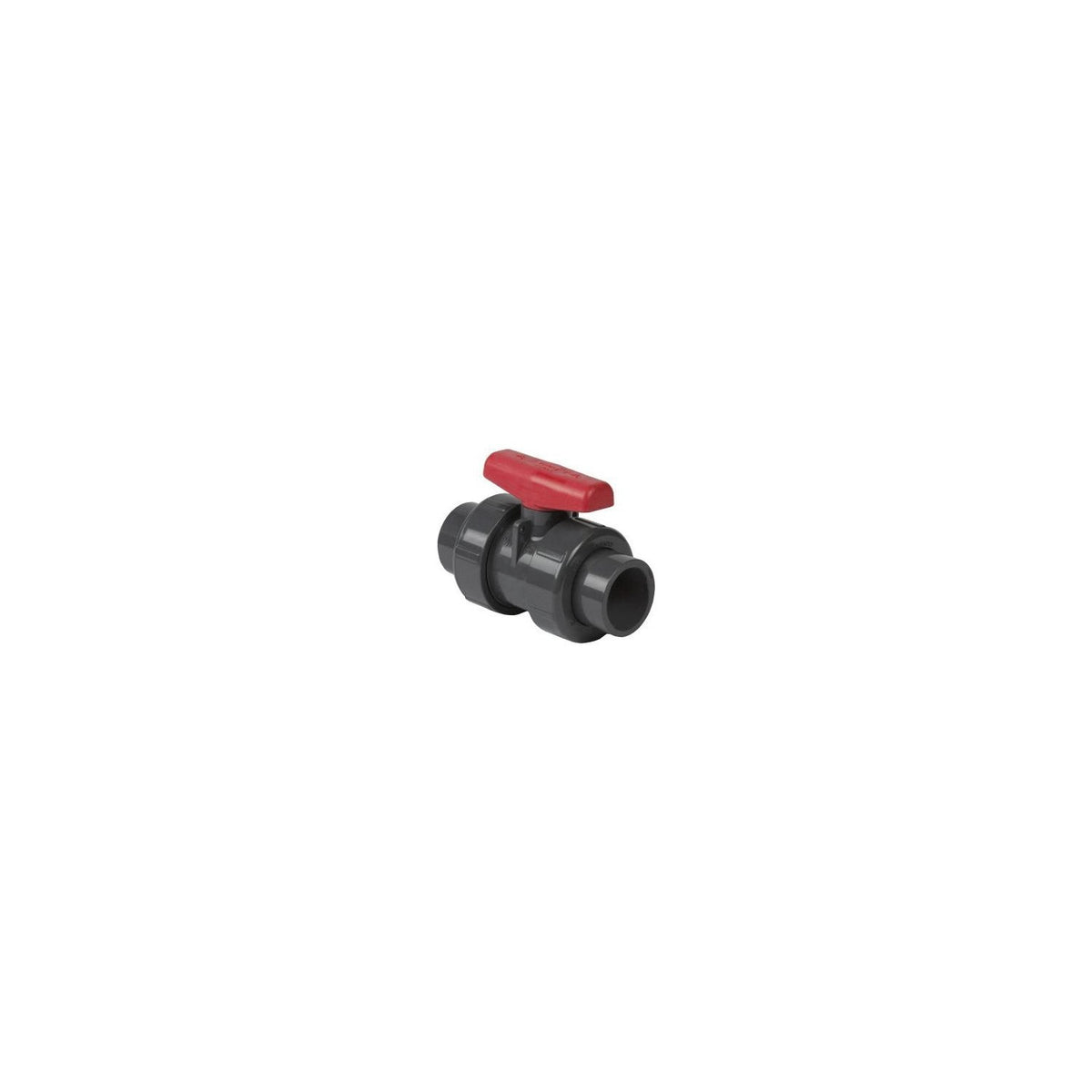

Spears True Union 2000 Standard Ball Valve, PVC, Socket/FIPT, EPDM - image 1
