Dramm - Hydra Sprayer Trigger Gun & Parts - For Dramm Sprayers

Brand: Dramm

Hydra Sprayer Trigger Gun & Parts - For Dramm Sprayers

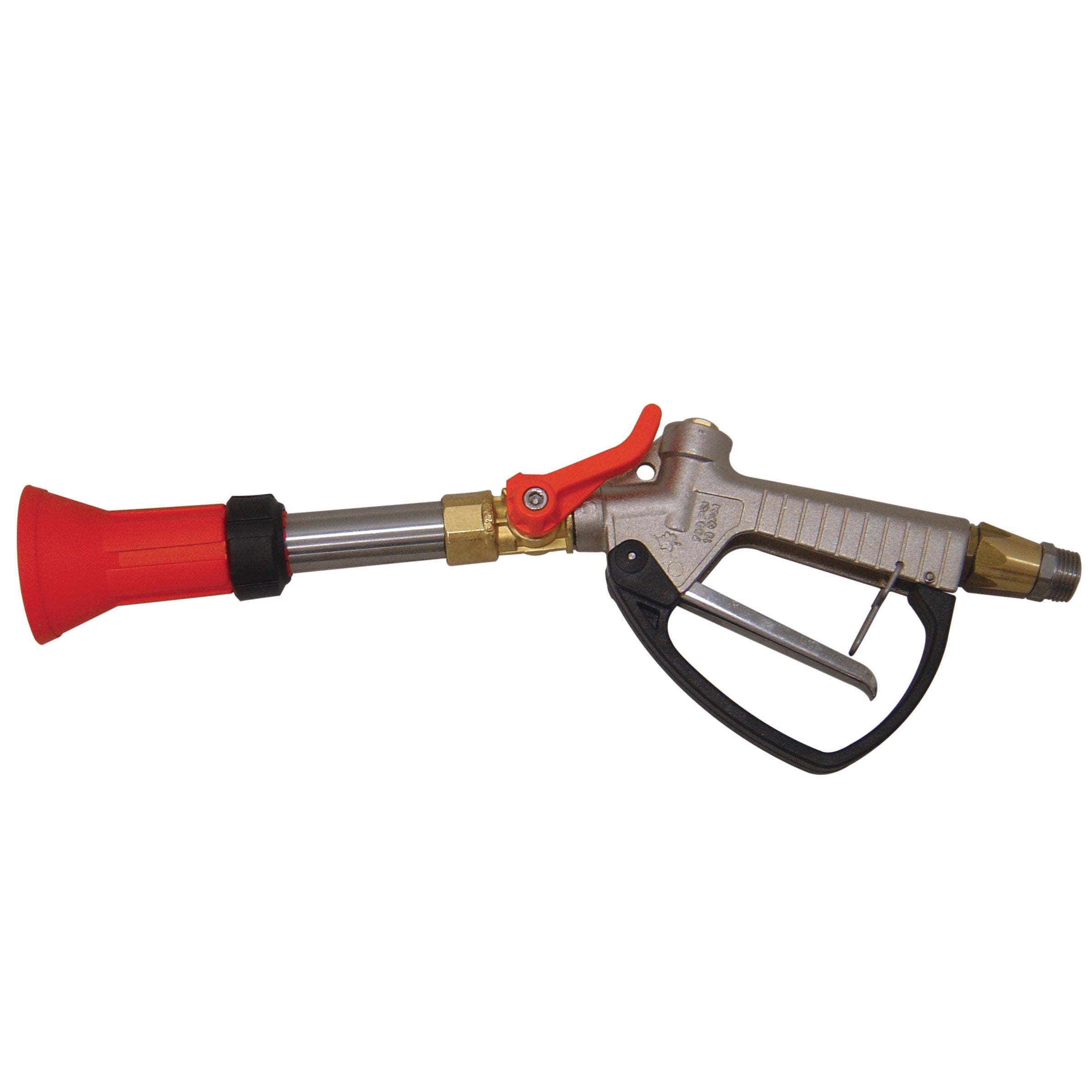

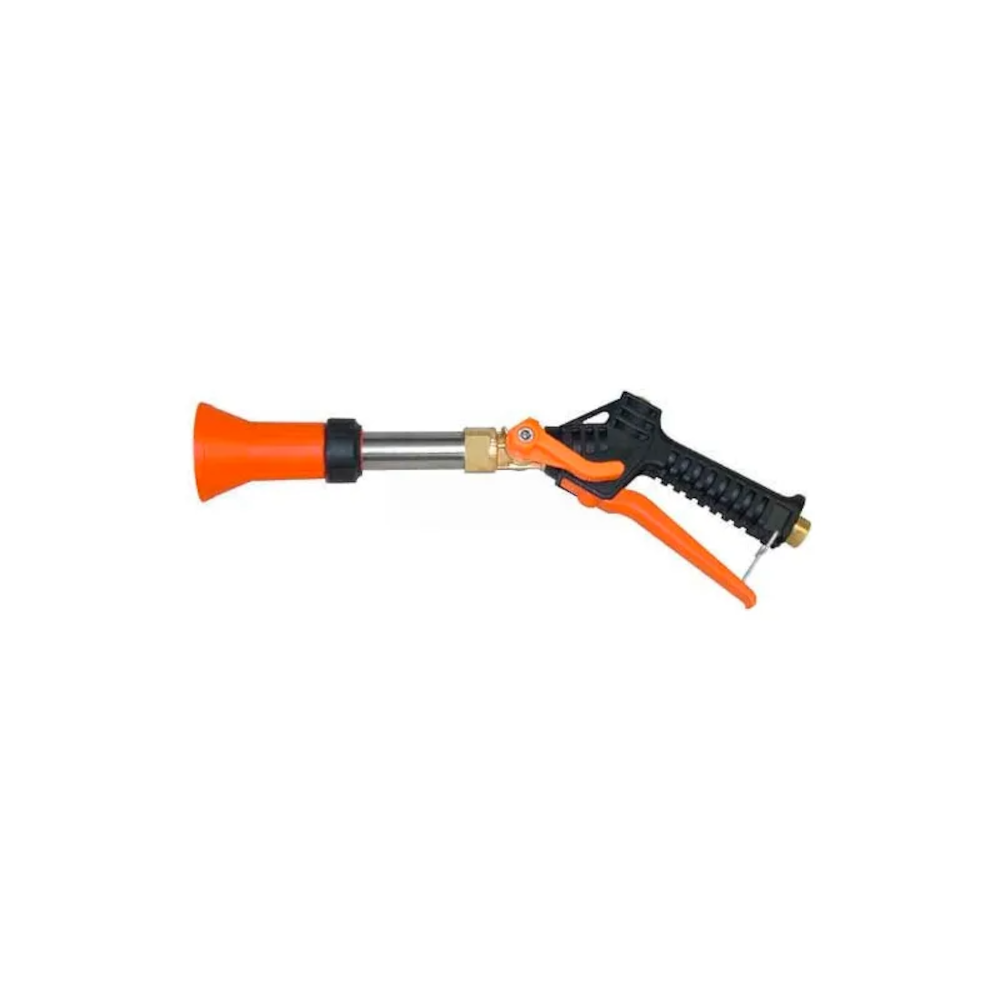

The Dramm Turbo Spray Gun is the trigger gun that ships as standard with Dramm's Hydra sprayers. It throws a fine, turbulent forward cone for coverage at a distance, and a lever on the side of the gun swings the pattern from that cone to a straight stream while you are spraying, so every complete gun on this page is an adjustable pattern gun. A short pull trigger, an ergonomic body angle and an adjustable cowl that cuts spray-back are what separate it from a plain wand. This page sells both the complete guns and the interchangeable Turbo nozzle tips that set the flow rate and spray angle.

Decide first whether you are buying a gun or a tip. The three complete guns all include the 1.5 mm Turbo tip and differ only in the handle material and the hose connection: Turbo Spray - Plastic Handle - 1.5 mm Nozzle included is the standard glass filled plastic body, Turbo Spray - Metal Handle - Quick Connect - 1.5 Nozzle included is the metal bodied gun with a quick connect coupler, and Turbo Spray - Plastic Handle - Quick Connect - 1.5 mm Nozzle included is the plastic bodied gun with the same quick connect. Quick connect is worth having if you switch tools during a shift, because it lets you pull the gun off the hose by hand and clip on the MS40-DA drench adaptor, which carries the matching male stainless quick connect. Everything else on the page is a bare Turbo nozzle tip, and the figure in the option name is the orifice size in millimeters. Turbo Spray Nozzle - 1.0 mm is the finest and lowest flow; Turbo Spray Nozzle - 1.2 mm and Turbo Spray Nozzle - 1.5 mm are the general purpose foliar sizes; Turbo Spray Nozzle - 2.0 mm and Turbo Spray Nozzle - 2.3 mm step up flow and widen the cone; and Turbo Spray Nozzle - 3.0 mm is the coarsest and highest volume tip on the page. Smaller tips give finer droplets, a tighter angle and less volume; larger tips wet faster and reach further but cover less finely, so most growers keep two or three tips in a drawer and swap them by crop stage.

Specifications

Configurations

Key Features

• One lever swings the pattern from a fine cone to a straight stream without stopping work
• Turbulent forward spray puts material on the far side of a bench from the aisle
• Six interchangeable Turbo tips from 1.0 mm to 3.0 mm cover fine foliar work through high volume wetting
• Every complete gun ships with the 1.5 mm tip already fitted
• Quick connect guns come off the hose by hand so the drench adaptor can go on in seconds
• Adjustable cowl cuts spray-back onto the operator
• Short pull trigger reduces hand strain over a long spray run
• Rated to 750 psi, above the working pressure of the Hydra line

Ideal Applications

• Insecticide, fungicide and sanitizer applications off a Hydra cart sprayer
• Fine foliar coverage on tight canopies using the 1.0 mm or 1.2 mm tip
• High volume wetting and floor work using the 2.3 mm or 3.0 mm tip
• Replacing a worn or plugged tip without replacing the gun
• Keeping a spare gun on the shelf so a failure does not stop a spray day
• Crews that switch between spraying and drenching in the same shift

These guns and tips fit the Hydra 50 Gallon Cart Sprayer and the rest of the Hydra line, and the MS40-DA drench adaptor shares the same quick connect.
