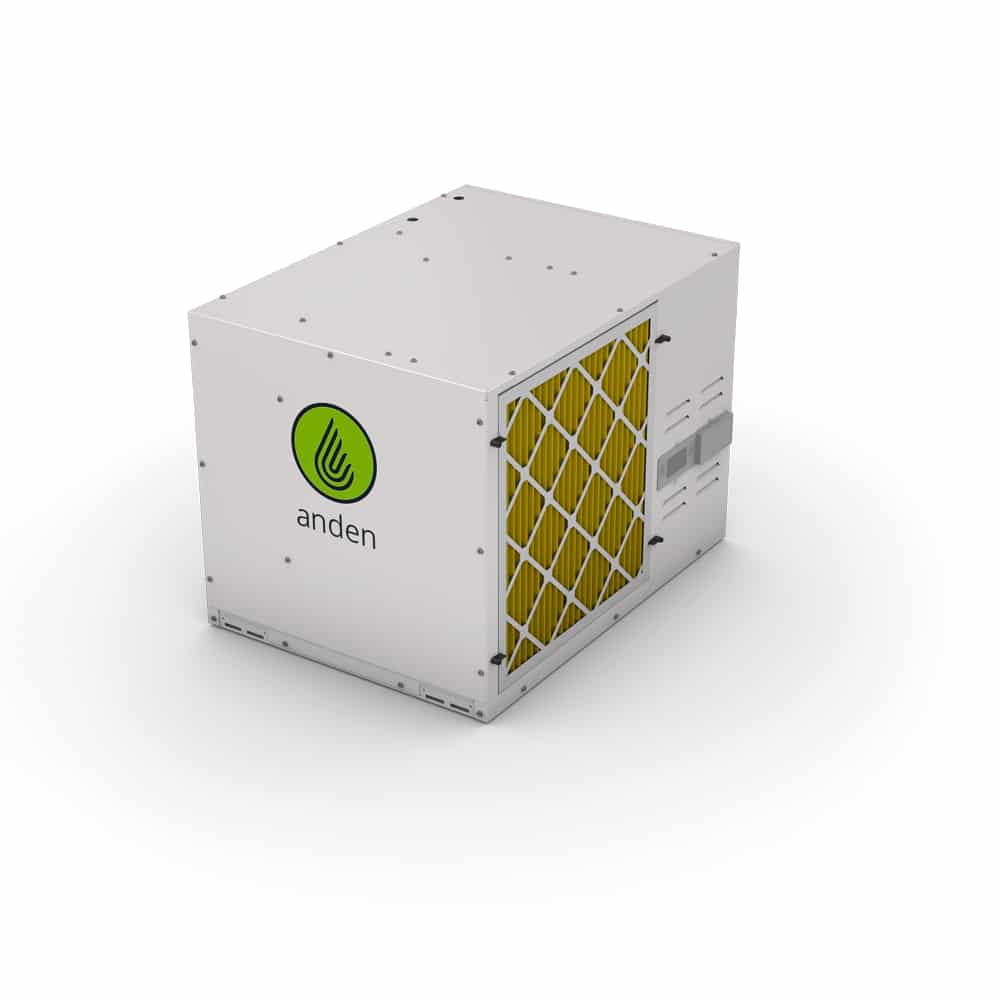

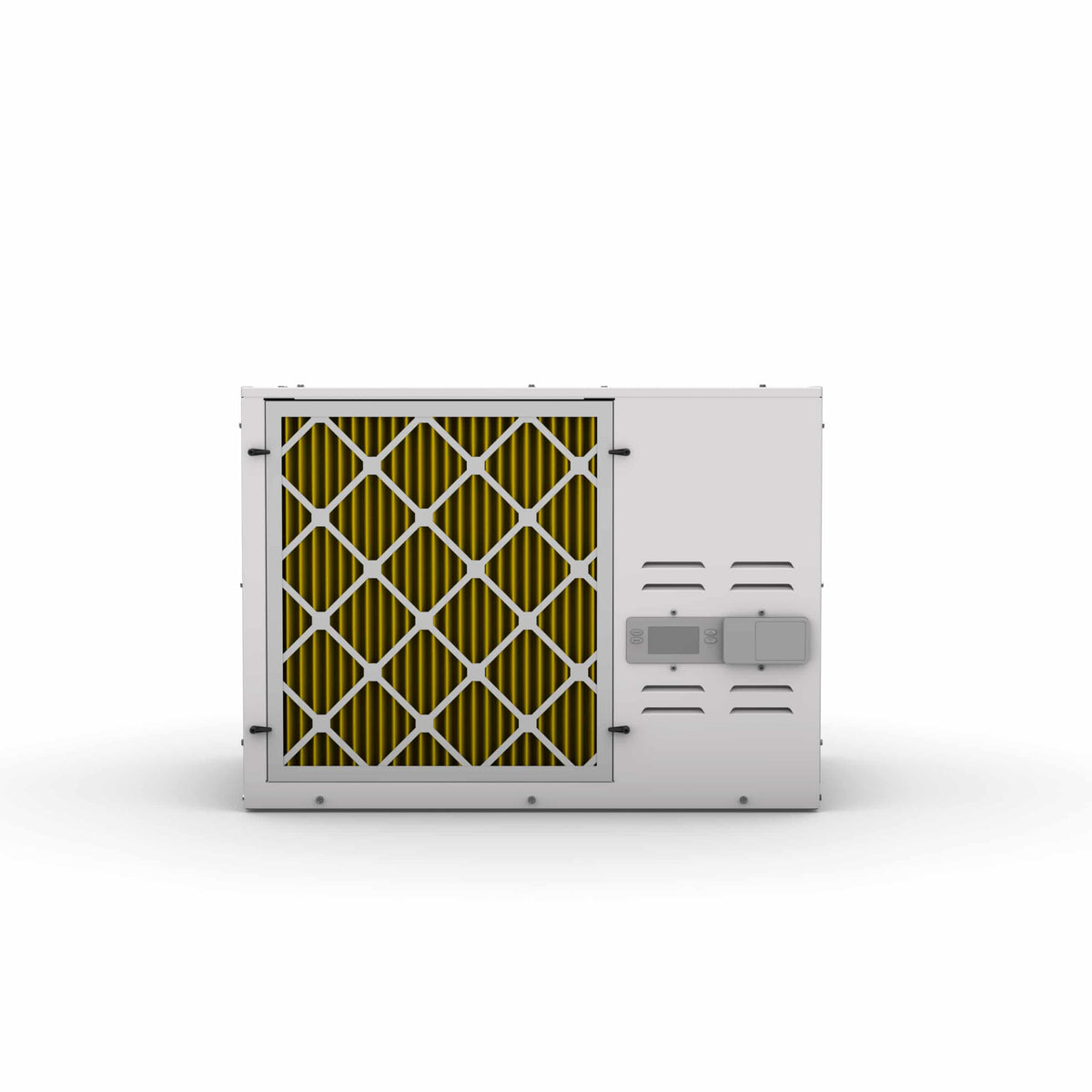

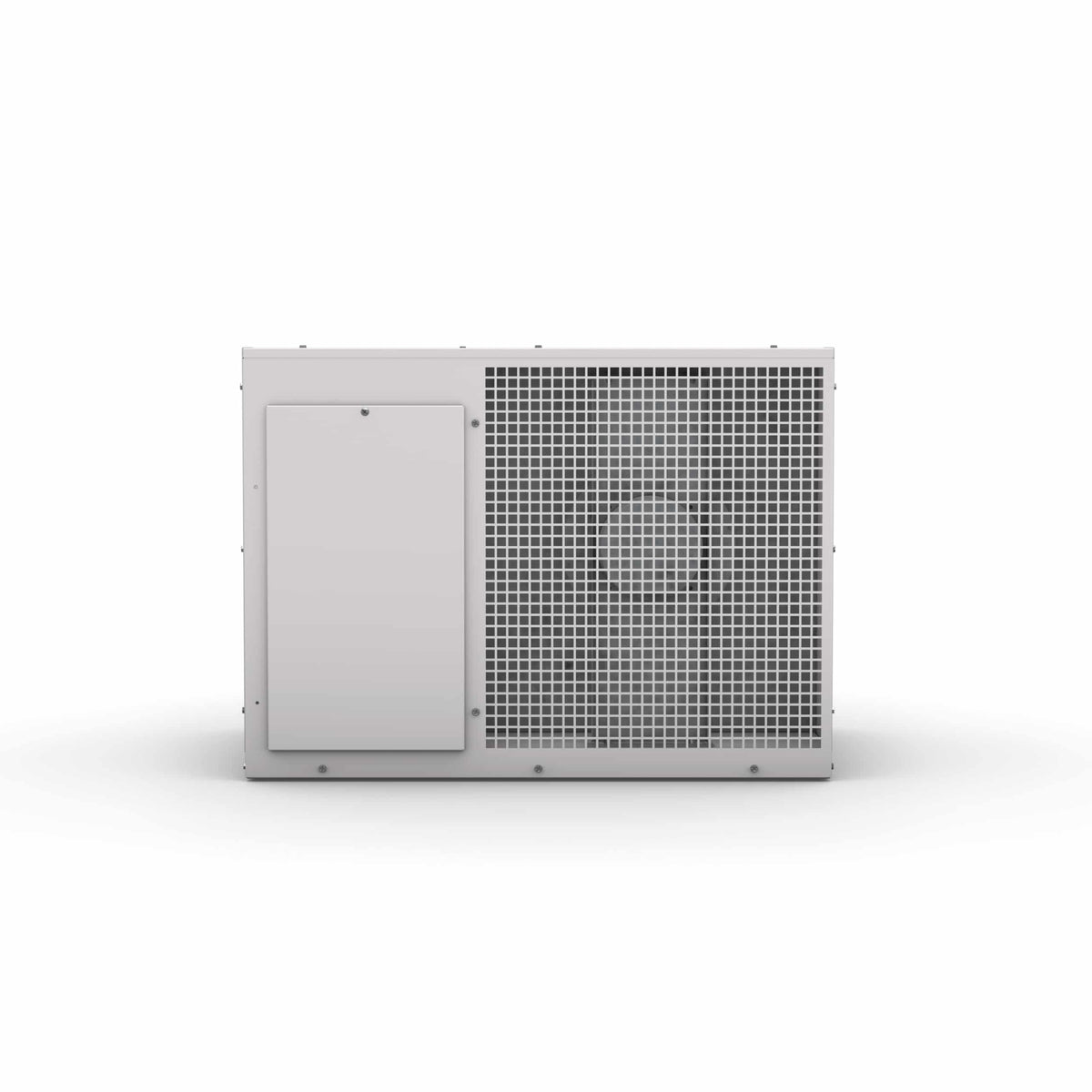

Anden - A320 Dehumidifier

Brand: Anden

A320 Dehumidifier

The Anden A320 is a high-capacity dehumidifier built specifically for cultivation, removing up to 320 pints of moisture per day. It moves 830 CFM, on the principle that water cannot be pulled from a room without first driving moisture-laden air across the coil. Anden recommends holding relative humidity under 60 percent to block mold and mildew and to keep plants taking up CO2 efficiently.

Two voltage versions cover most commercial services: the A320V1 for 208-240 VAC and the A320V3 for 277 VAC. Both use an ElectroFin E-coat copper and aluminum coil, carry a MERV 11 filter, and include the Model A77 remote control. The cabinet runs at negative pressure, so the included P-trap and a vented drain are required.

Available Options

• 208-240V (A320V1)
• 277V (A320V3)

Key Features

• Removes up to 320 pints per day; tested capacity 295 PPD (V1) and 316 PPD (V3) at 80F and 60 percent RH
• 830 CFM at 0.0 inches external static pressure on both versions
• Efficiency 2.9 L/kWh on the V1 and 2.7 L/kWh on the V3
• V1 draws 9 A at 2,050 W; V3 draws 8.3 A at 2,313 W; both on a 20 A breaker
• R-32 refrigerant with ElectroFin E-coat copper tube and aluminum fin coil
• Self-sealing 20 x 22 x 2 inch MERV 11 filter
• Model A77 remote control included, with onboard digital diagnostics
• Float-switch terminals to protect against overflow
• P-trap included; vented drain required (negative-pressure cabinet)
• Hanging brackets included; leveling feet sold separately as Model 5789
• Dimensions 32.625 x 24 x 24.25 inches; 180 lbs (V1) or 176 lbs (V3)
• Five-year warranty on all parts including the refrigeration system

Ideal Applications

• High-load commercial cultivation rooms
• Holding RH below 60 percent to prevent mold and mildew
• Protecting CO2 uptake and photosynthetic efficiency
• Late flowering vapor pressure deficit control
• Suspended, freestanding or ducted installation
• Facilities on either 208-240V or 277V service
