Anden - AS150 Steam Humidifier

Brand: Anden

AS150 Steam Humidifier

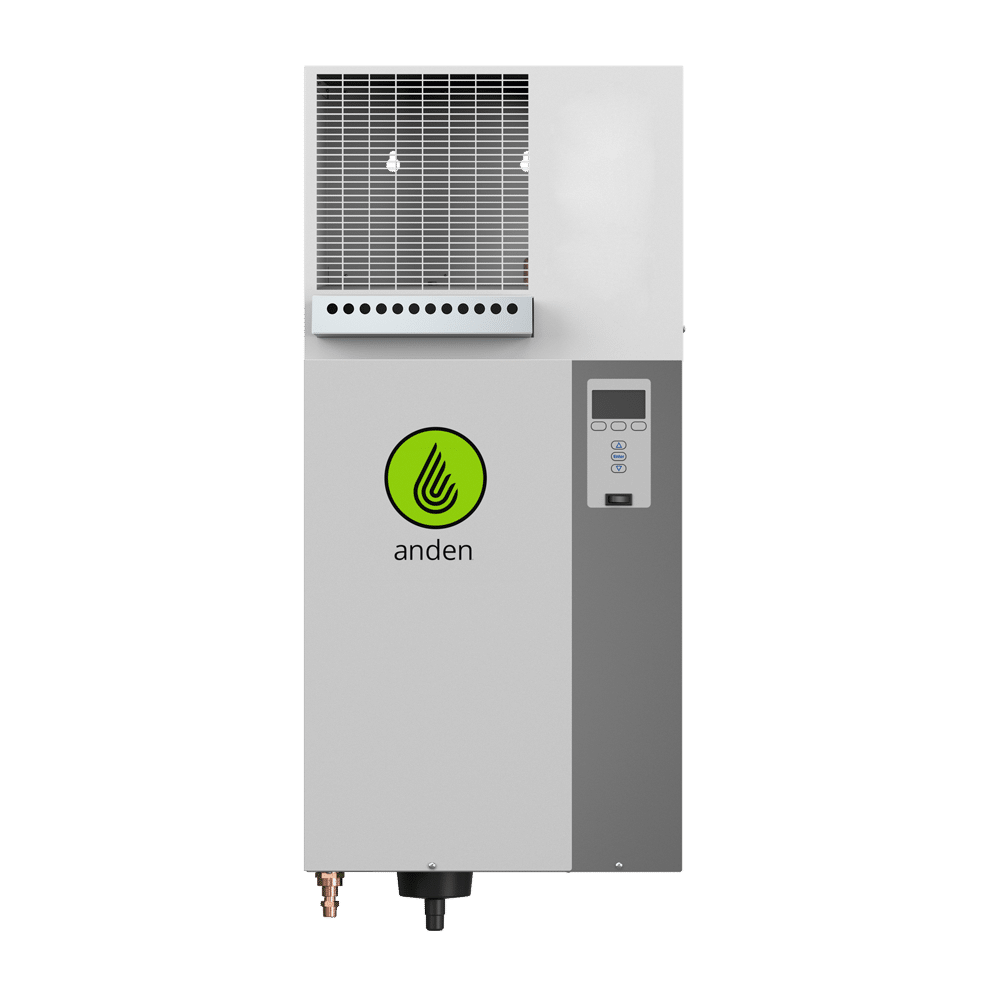

The Anden AS150 is a commercial-capacity steam humidifier delivering up to 1,200 pints, or 150 gallons, of moisture per day, which Anden calls industry-leading capacity for a single unit. Steam is produced by electrode technology inside a disposable cylinder, so maintenance is cylinder replacement rather than scrubbing. A dedicated steam blower powered by the humidifier distributes output evenly, so the unit installs without ductwork.

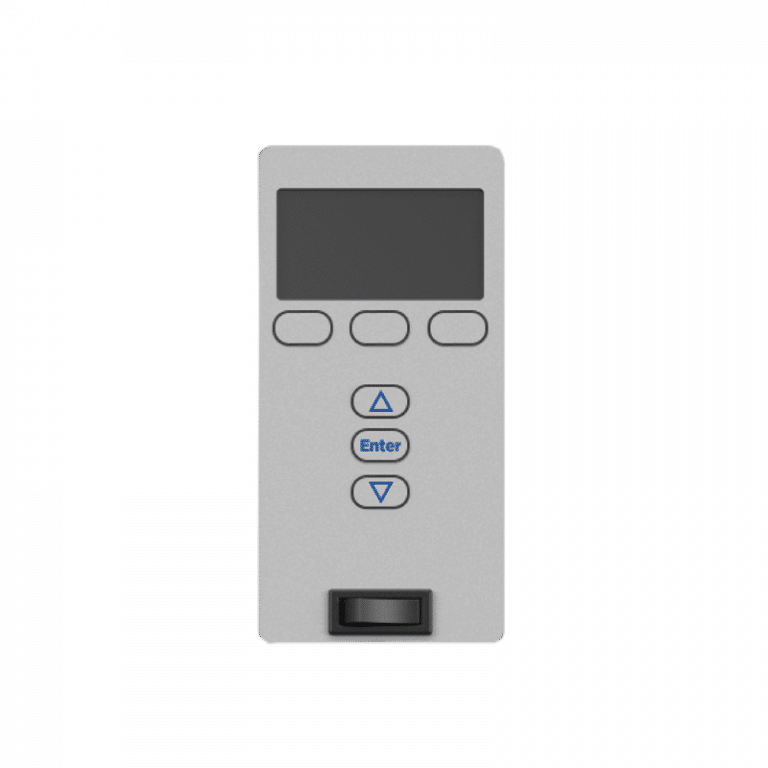

Control is handled by the included Vapor-logic controller and RH transmitter, which provide accurate regulation through a web-based interface supporting remote monitoring and data backup. The steam blower mounts directly on top of the humidifier or remotely at canopy height. Three electrical versions cover common commercial three-phase services and are otherwise identical.

Available Options

• 240V 3-Phase (AS150)
• 208V 3-Phase (AS150-V2)
• 480V 3-Phase (AS150-V4)

Key Features

• Delivers 1,200 pints per day (150 gallons) of clean steam
• Three-phase 60 Hz in 240 V at 48 A, 208 V at 55 A, or 480 V at 24 A
• Breaker sizing 60-75 A (240 V), 70-75 A (208 V), 35-50 A (480 V)
• Electrode steam technology with a disposable cylinder
• Built-in steam blower for ductless installation, mountable remotely at canopy height
• Vapor-logic controller and RH transmitter included, web-based interface
• Remote monitoring and data backup through the Vapor-logic interface
• Automatic drain and fill cycle maintains proper conductivity
• Backflow protection via an air gap in the fill cap; water level sensor prevents overfilling
• Requires potable or softened water at 125-1250 microsiemens/cm; RO and deionized water are not recommended
• Ships with steam blower, Vapor-logic control, RH transmitter, 7 inch steam hose and 2 ft drain tubing
• 86 lbs shipping weight; five-year warranty on all parts

Ideal Applications

• Large commercial facilities needing high humidification capacity from one unit
• Ductless installs dispersing steam directly into the space
• Remote fan pack mounting at canopy height using steam hose Part 5940
• Operations requiring web-based remote RH monitoring and data logging
• Preventing mold and mildew while optimizing transpiration and CO2 uptake
• Facilities on 208V, 240V or 480V three-phase service
