Anden - AS35FP Steam Humidifier

Brand: Anden

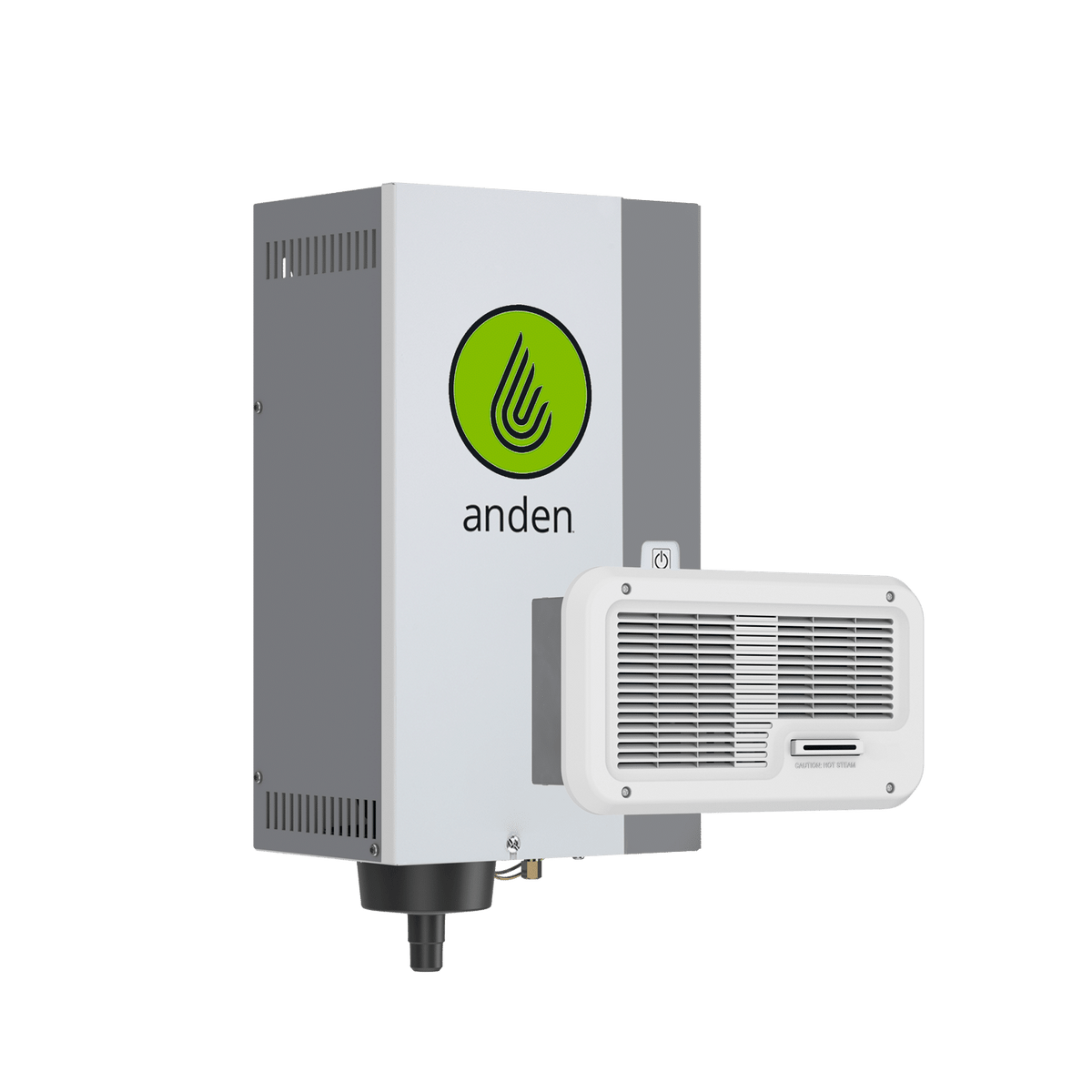

AS35FP Steam Humidifier

The Anden AS35FP is a medium-capacity steam humidifier that adds up to 277 pints, or 34.6 gallons, of moisture per day. It produces steam by electrode technology, passing current between two electrodes inside a disposable cylinder to boil water directly, which is fast and clean and removes canister scrubbing from the maintenance routine. The FP designation denotes the built-in fan pack.

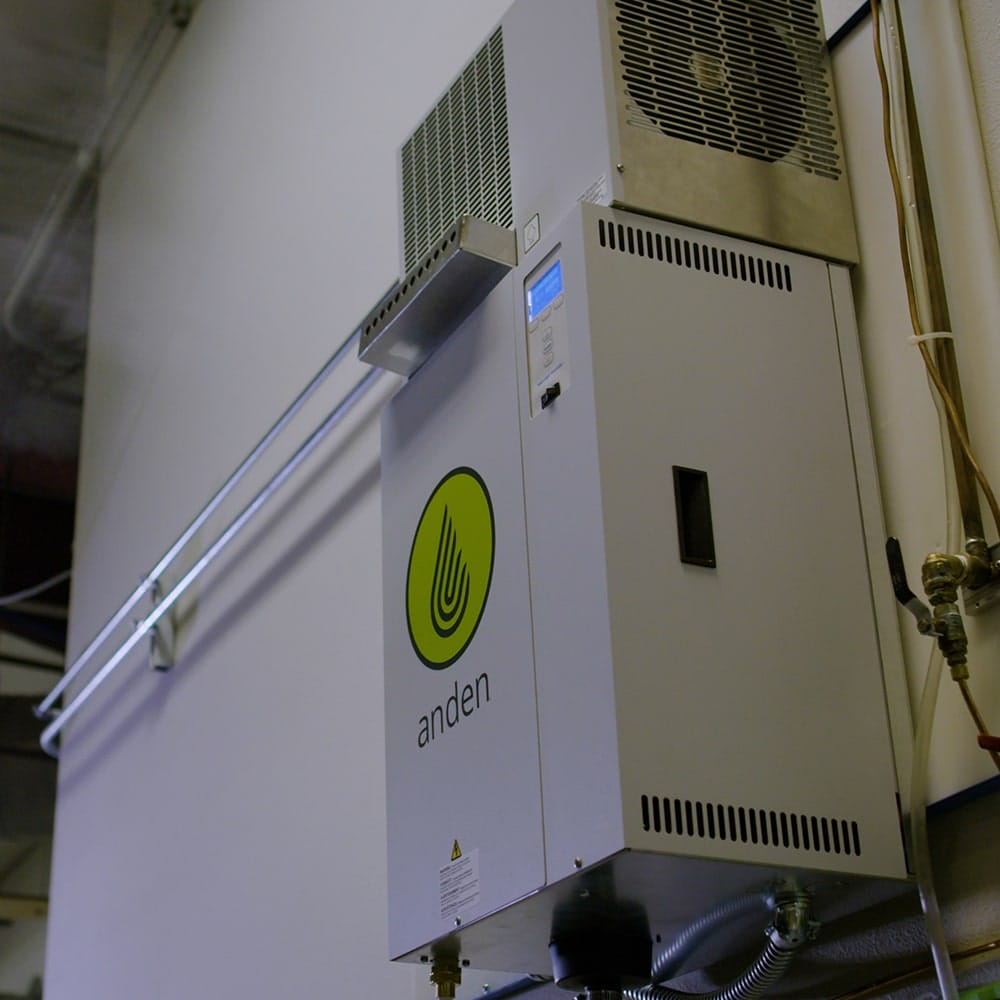

That fan pack is powered by the humidifier itself and distributes steam evenly without any ductwork, mounting either on top of the unit or above it at canopy height. It can also be surface-mounted or recessed into a wall, and the unit still works with existing ductwork where a facility has it. The included Model A65 humidistat gives dedicated monitoring and control at canopy height.

Available Options

• 120-240V (AS35FP)

Key Features

• Delivers 92 to 277 pints per day (11.5 to 34.6 gallons) depending on voltage and amperage configuration
• Built-in fan pack enables fully ductless installation
• Electrode steam technology with a disposable cylinder, no canister cleaning
• Configurable for 120, 208 or 240 VAC at 11.5 or 16 A
• Peak output 276.8 pints per day at 240 V and 16 A (3.8 kW)

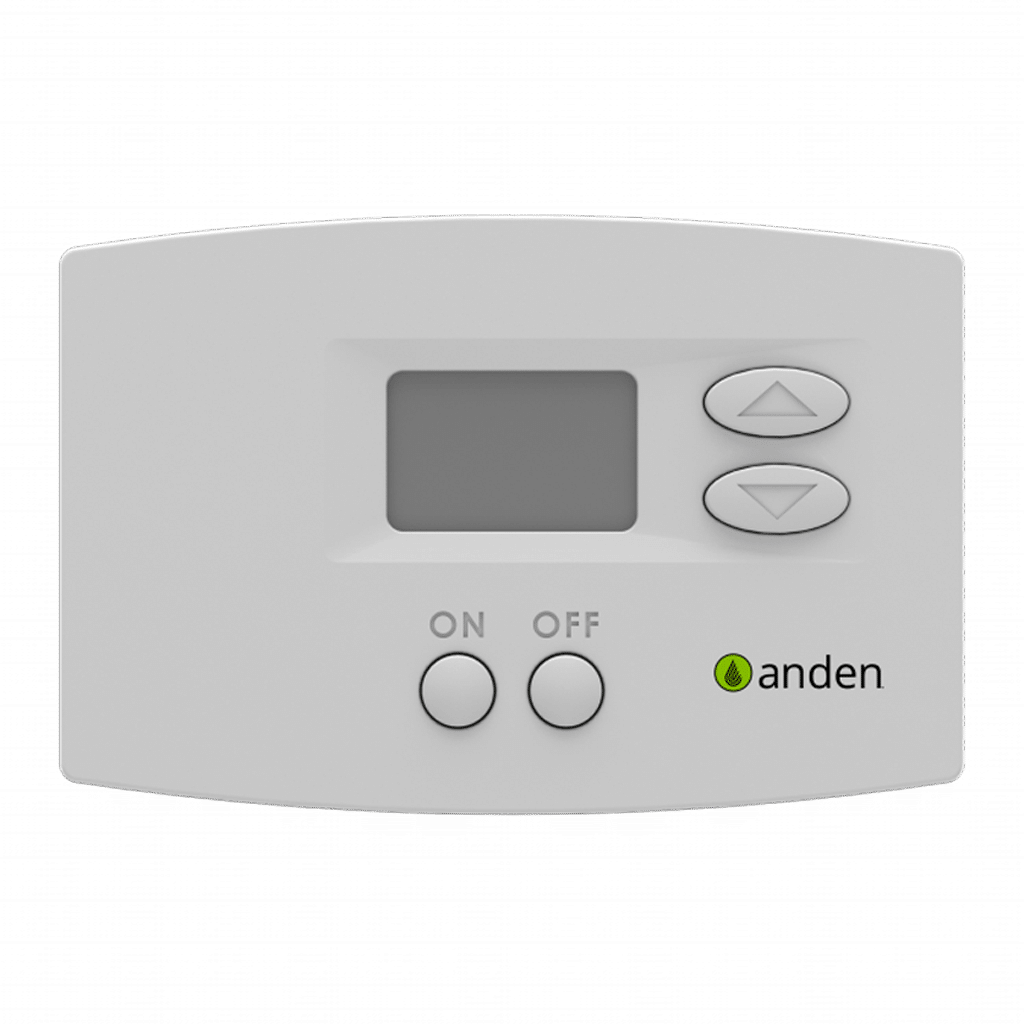

• Model A65 humidistat included (supersedes the legacy Model 5558)
• Display panel shows fill, drain and steam operations plus diagnostics
• Backflow protection via an air gap in the fill cap
• Water level sensor manages canister level to prevent overfilling
• Drain water tempering holds discharge below 140F to protect PVC and condensate pumps
• End-of-season drain after 72 hours with no humidity call
• Ships with fan pack, Model A65 control, drain trap assembly 71000019, 6 ft steam hose and 10 ft drain tubing
• 27 lbs; five-year warranty on all parts

Ideal Applications

• Grow rooms needing humidity control with no ductwork
• Delivering steam at canopy height
• Facilities with existing ductwork that prefer flexibility
• Driving transpiration and CO2 uptake for efficient photosynthesis
• Vapor pressure deficit management across growth stages
• Wall-mount or recessed fan pack installations
