Variable Temperature Control 0-10 V

Brand: Phason

Simple, reliable 0 to 10 VDC output control

The FC-1T-1VDC takes the hassle out of controlling equipment like ECM motors and variable frequency drives. It provides a 0 to 10 VDC signal output and includes a built-in disconnect relay, making it easy and effective to manage your equipment.

This versatile controller can operate up to 10 devices simultaneously and is also ideal for expansion controls, modulating valves, and other equipment requiring a DC signal—all from one intuitive, easy-to-use unit.

How it works

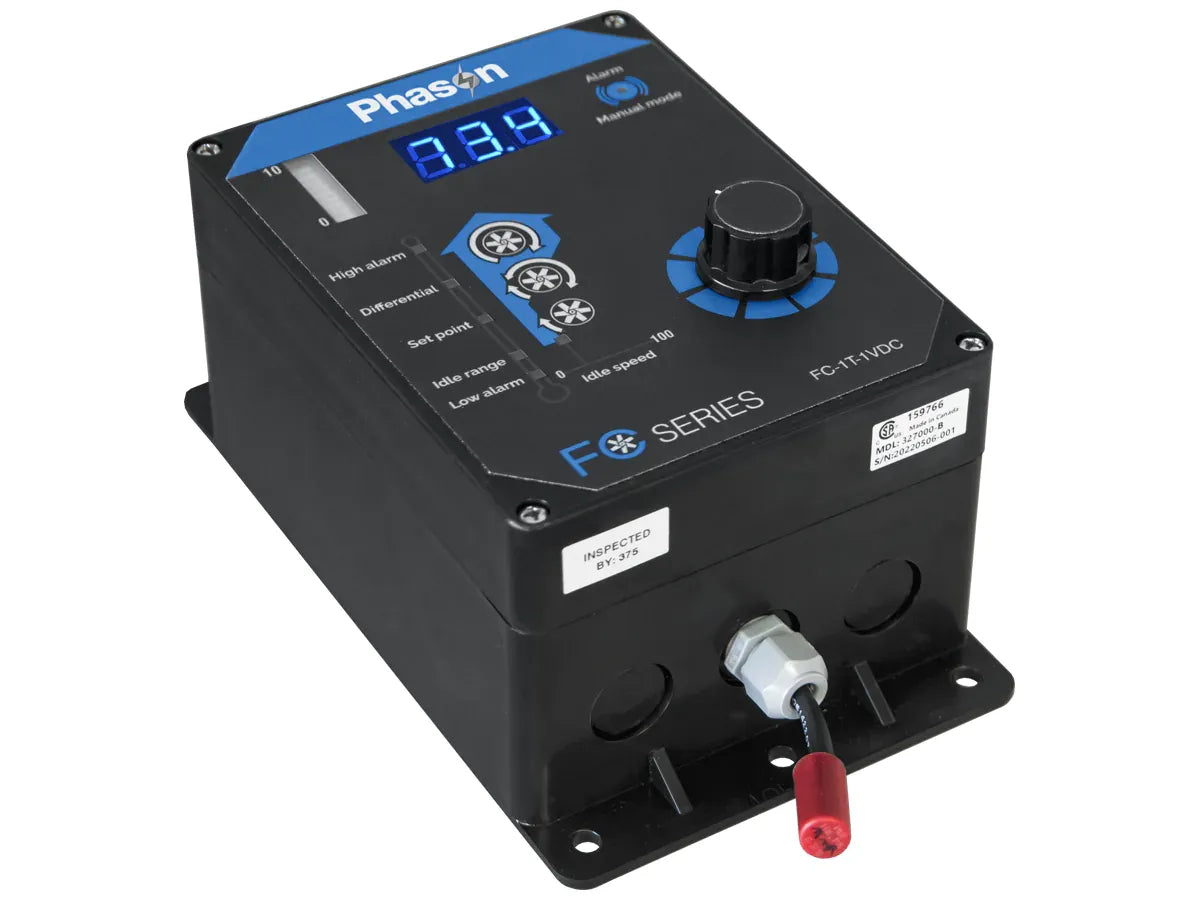

The display shows real-time temperatures, signal output, programming options, and alarm codes. Indicator lights highlight which setting is being adjusted, and the control knob makes it simple to navigate and fine-tune settings.

• Automatic temperature-based control, range: 32 to 99°F (0 to 37°C)
• One variable 0 to 10 VDC output to control up to 10 devices
• One disconnect relay
• Alarm relay (for external alarm system or siren)
• Three-second full-power-turn-on for minimizing fan ice-up
• Three-character LED display
• Status and programming LEDs
• Alarm code display
• Customizable alarm settings
• Power-failure settings protection
• Six-foot temperature sensor, extendable to 500 feet
• NEMA 4X enclosure (Corrosion-resistant, water-resistant, and fire-retardant)
• cCSAus approval
• CE certification
• Limited warranty

 When the 0 to 10 VDC signal output is at 0, the disconnect relay sends a start/stop signal to the equipment you are controlling with the variable output. The relay is not for controlling fans, heaters, or other equipment.
