TrolMaster - Tent-X Main Controller (TCS-1)

Brand: TrolMaster

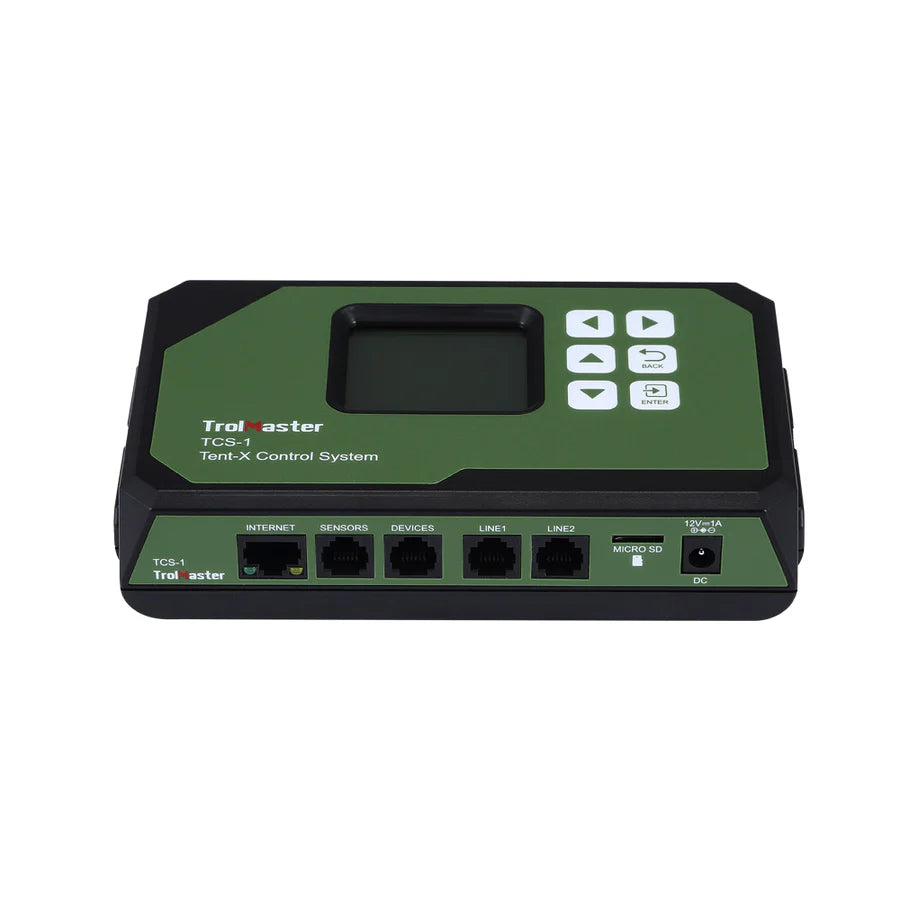

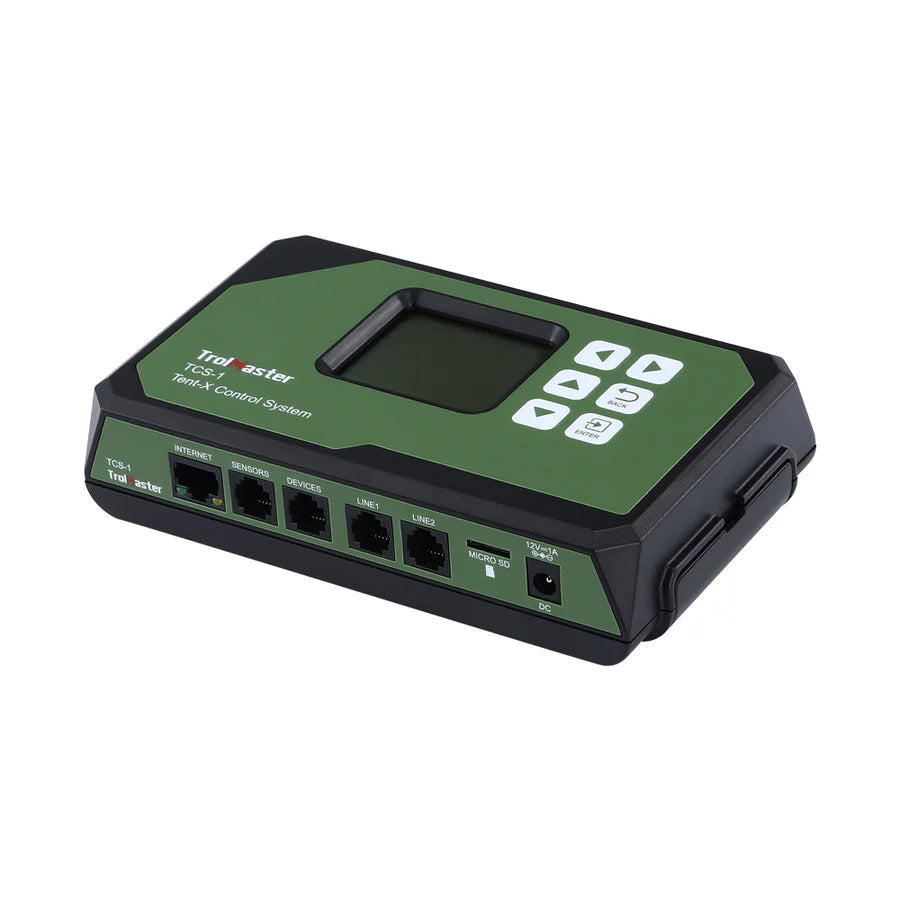

TrolMaster Tent-X Main Controller (TCS-1)

The TrolMaster Tent-X (TCS-1) is a professional-grade, modular environmental and irrigation control system designed for single-zone grow tents. It lets operators control lighting, climate and irrigation schedules from one compact controller. The system includes the MBS-TH 3-in-1 temperature, humidity and light sensor and works with the free TrolMaster app.

The MBS-TH can be daisy-chained with the MBS-S8 CO2 sensor, MBS-PAR quantum sensor and smoke and water detectors on the SENSOR port. An AMP-3 sensor board adds pH, EC and temperature monitoring, with WCS water content sensors or WD-1 water detectors connected through the board. Up to four DS-type plug-in device stations can be connected to run climate and irrigation equipment together.

Available Options

• Model: TCS-1
• Includes: Tent-X controller, MBS-TH 3-in-1 sensor, 16ft RJ12 cable, 12V power adapter, RJ12 Y-splitter, 4ft M12 cable, 4ft RJ12 cable

Key Features

• Compact lighting, climate and irrigation control in one system
• Modular, fully customizable design
• Historical charts and free TrolMaster app control
• Sensor capacity: 1 each of MBS-TH, MBS-S8, MBS-PAR, MBS-SD, AMP-3 and WCS-2/3; up to 2 WD-1 water detectors
• Device capacity: 2 temperature, 2 humidity and 2 CO2 device stations, 4 timer device stations, 2 EC fan control adaptors
• 2 lighting channels
• Input voltage: 100-240VAC, 50/60Hz
• Working temperature: 32 to 122 deg F (0 to 50 deg C); working humidity up to 90%

Ideal Applications

• Single-zone grow tents
• Compact indoor cultivation with combined climate and irrigation control
• Tent setups using CO2, PAR or water content sensors
