TrolMaster - CO2 Sensor for Hydro-X (MBS-S8)

Brand: TrolMaster

TrolMaster CO2 Sensor for Hydro-X (MBS-S8)

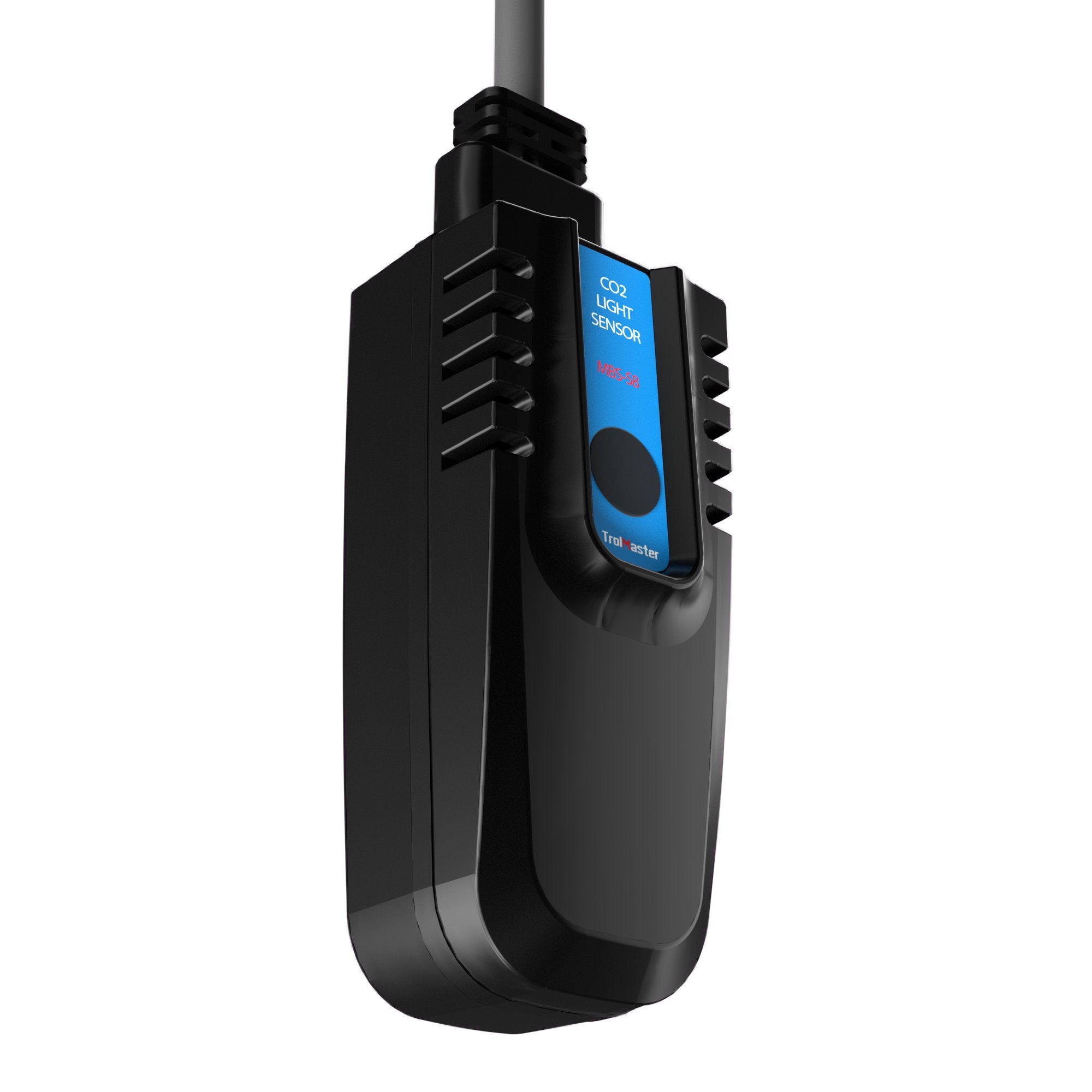

The TrolMaster MBS-S8 is an optional CO2 sensor that measures CO2 ppm within the growing area. It allows operators to connect and control a supplemental CO2 system through a TrolMaster controller. A built-in photocell detects day and night mode.

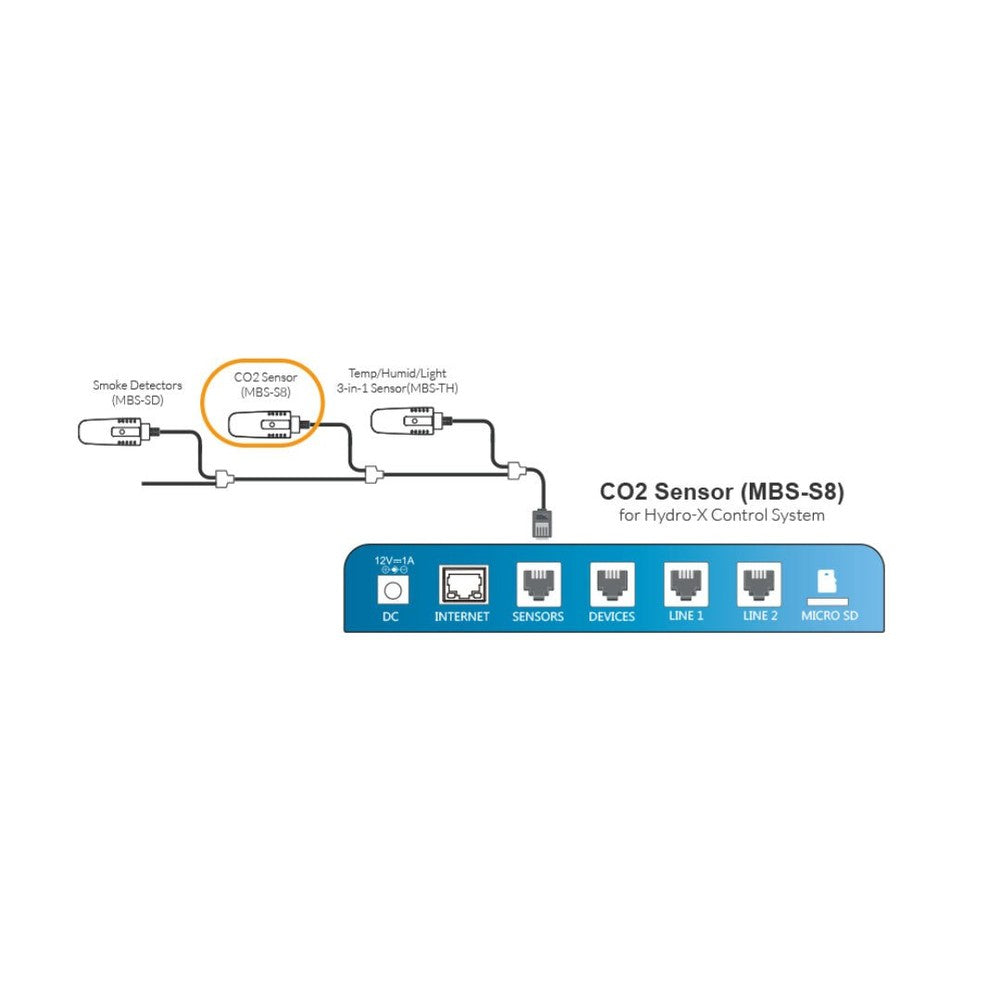

The MBS-S8 is used in combination with one or more DSC-1 CO2 device stations, which switch the CO2 equipment based on the sensor reading. It is plug-and-play with the supplied RJ12 cable and splitter. Keep the sensor dry and clean and do not spray substances or allow water or condensate on it to prevent premature failure.

Available Options

• Model: MBS-S8
• Includes: CO2 sensor (MBS-S8), 16ft RJ12 cable, RJ12 T-splitter
• Compatible controllers: Hydro-X (HCS-1), Tent-X (TCS-1)

Key Features

• Measures CO2 ppm in the growing area
• Built-in photocell detects day/night mode
• Plug and play
• Output voltage: 0~11.5V; maximum current 0.2A
• Working temperature: 32 to 122 deg F; working humidity under 90%

Ideal Applications

• Supplemental CO2 control with Hydro-X or Tent-X controllers
• Rooms using DSC-1 CO2 device stations
• Indoor cultivation CO2 monitoring
