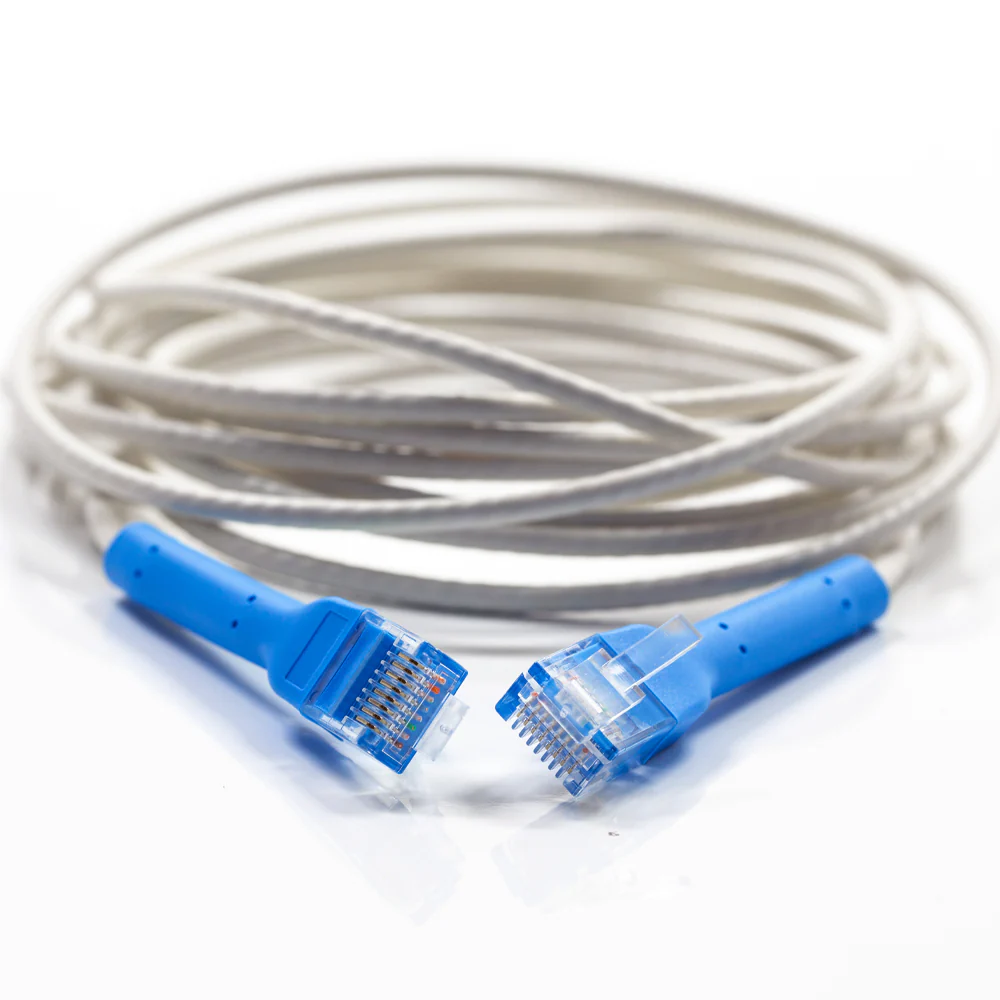

Growlink - LINKS HUB Connection Cable - 3m

Brand: Growlink

Growlink - LINKS HUB Connection Cable - 3m

Connects LINKS devices to the 8-Port Device HUB. Carries data and device power on one run.

The HUB Connection Cable is the standard 3 meter run between a LINK device and the Growlink LINKS 8-Port Device HUB. It carries both data and device power over a single cable, so most LINK devices need no separate power drop at the device end - the HUB supplies up to 1 A through the connection.

Plug from any of the eight RJ-45 device output ports on the HUB into the LINK device HUB connection port. Growlink specifies standard 8-conductor RJ-45 straight-through wiring with no crossover, T568B pattern recommended. Power down before connecting or disconnecting. In humid rooms Growlink instructs applying a thin coat of dielectric grease to the RJ-45 plug contacts before insertion to prevent corrosion.

Key Features

• 3 meter length
• RJ-45, 8-conductor
• Straight-through wiring, no crossover, T568B recommended
• Connects to the LINKS 8-Port Device HUB over standard 8-conductor RJ-45, straight-through, T568B recommended
• Signal supported to 1,000 ft on buffered HUB ports
• Carries 1 A per port / 1 A combined at 24 VDC
• Compatible with all LINK devices and the LINKS 8-Port Device HUB
• In humid environments apply dielectric grease to plug contacts before insertion

Ideal Applications

• Standard device to HUB runs in a controls panel or grow room
• Adding a device to a spare HUB port during expansion
• Replacing a damaged or corroded run
• Bench setup and pre-commissioning of LINKS hardware
