Dramm - Strand Drip Assembly for Capillary Mats

Brand: Dramm

Dramm Strand Drip Assembly for Capillary Mats

Capillary mats give even sub-irrigation for potted plants, but only if the mat is wetted evenly to begin with. Dramm Drip Strands distribute irrigation water accurately across the mat using perforated tubing combined with a pressure compensating emitter, so the mat saturates uniformly.

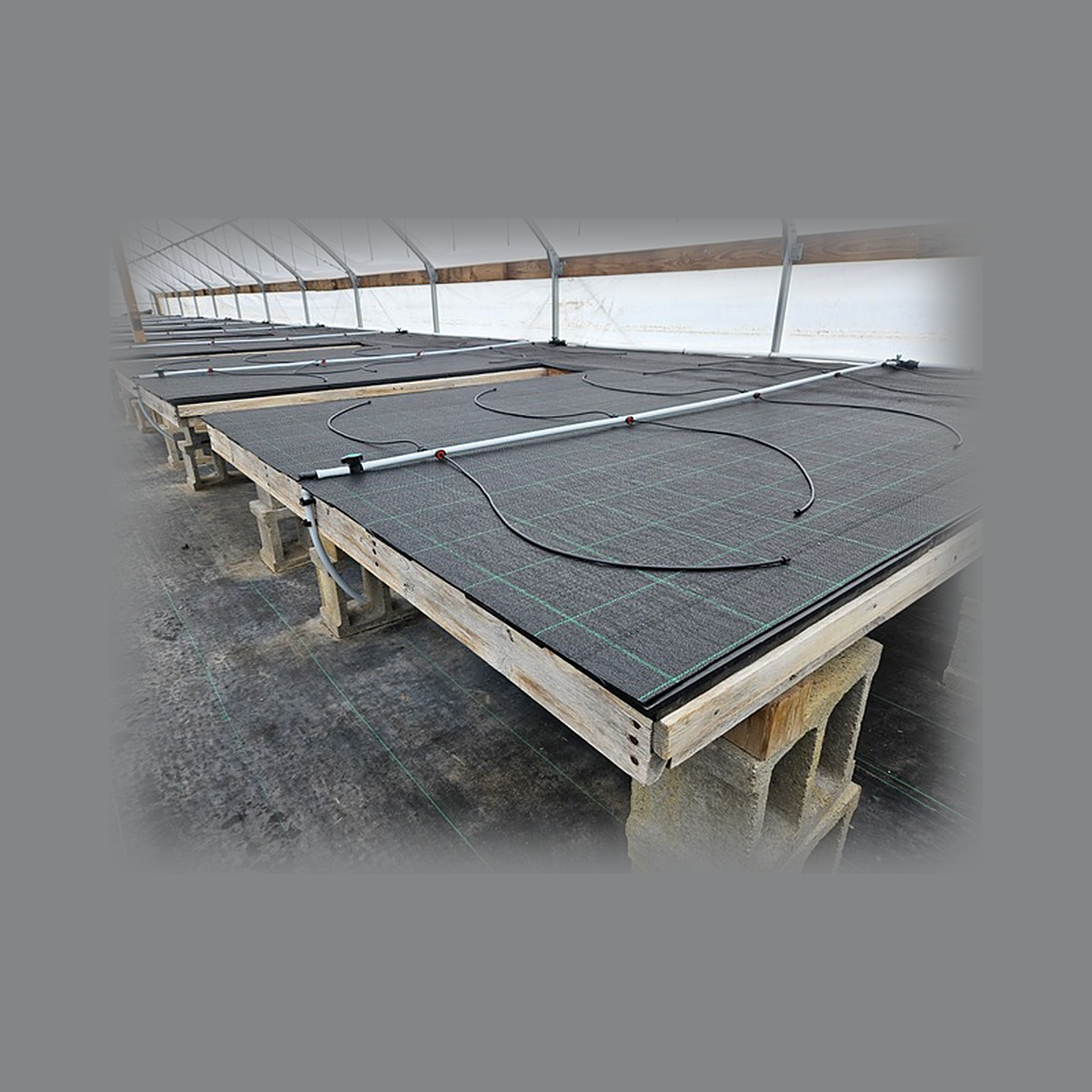

The Strand lays water over the top of the capillary mat without getting in the way of the pots sitting on it. Because the mat's water holding capacity and the Strand's flow rate are both known, watering the mat to saturation becomes a simple calculation. The single emitter Strand is plugged at one end, which allows more flexibility in where the tubing is placed on the bench.

Specifications

Configurations

Key Features

• Perforated tubing paired with a pressure compensating emitter
• Distributes water over the top of the mat without obstructing pots
• Single emitter design with a plug at the far end for flexible tube placement
• Saturates the mat evenly rather than wetting it in patches
• Flow rate can be matched to the mat water holding capacity for precise watering

Ideal Applications

• Even water distribution onto capillary mats
• Bench sub-irrigation of potted plants
• Systems fed from a single lateral
• Production benches running capillary mat irrigation

Pair with Dramm FloraPlus and VivaPlus capillary mats.
