Dramm - Stainless Steel Quick Connect - 3000 psi
Brand: Dramm
Stainless Steel Quick Connect - 3000 psi
The matched pair of stainless steel water stop couplers that let an operator change the tool on the end of a Dramm spray hose without shutting the machine down or draining the line. They are rated to 3,000 psi and the water stop is what keeps a disconnect from dripping chemical on the crop. Bought by anyone running a Hydra, MSO, MS-Gas or CS-5AGS who wants to move between a spray gun, an L-5 lance and a drench adaptor during a round.
The option is gender, and gender decides where the half lives. Dramm fits the male half to the tool: its MS40-DA Drench Adaptor is supplied with a male stainless quick connect already on it, and Dramm states outright that a male stainless steel quick connect is required to run an L-5E extension lance on a Hydra. That makes the female the hose-side half. A shop that wants to swap tools therefore buys one female for the hose end and one male for each tool it wants to hang on that hose. Both halves are stainless and both carry the same 3,000 psi rating, which sits far above the 500 to 800 psi the tools they serve actually run at, so the rating is margin and durability rather than a working figure.
Specifications
| Pressure rating | 3,000 psi, both halves |
| Material | Stainless steel, both halves |
| Type | Water stop quick connect - Dramm's wording is water stop, no dripping when switching between guns |
| Male half | The tool-side half. Dramm requires a male stainless quick connect to run an L-5E extension lance on a Hydra, and supplies one on the MS40-DA Drench Adaptor |
| Female half | The mating hose-side half |
| Working pressure of the tools it serves | L-5 lance 500 psi; MSO and MS20 500 psi; MS40-TG Turbo gun 750 psi; MD-9 gun chart 800 psi maximum |
| Tools already fitted with one | The L-5TQC trigger lance, the MS40-TG-MQC and MS40-TG-PQC Turbo guns, and the MS40-DA Drench Adaptor |
Configurations
| Fitting | Part number |
|---|---|

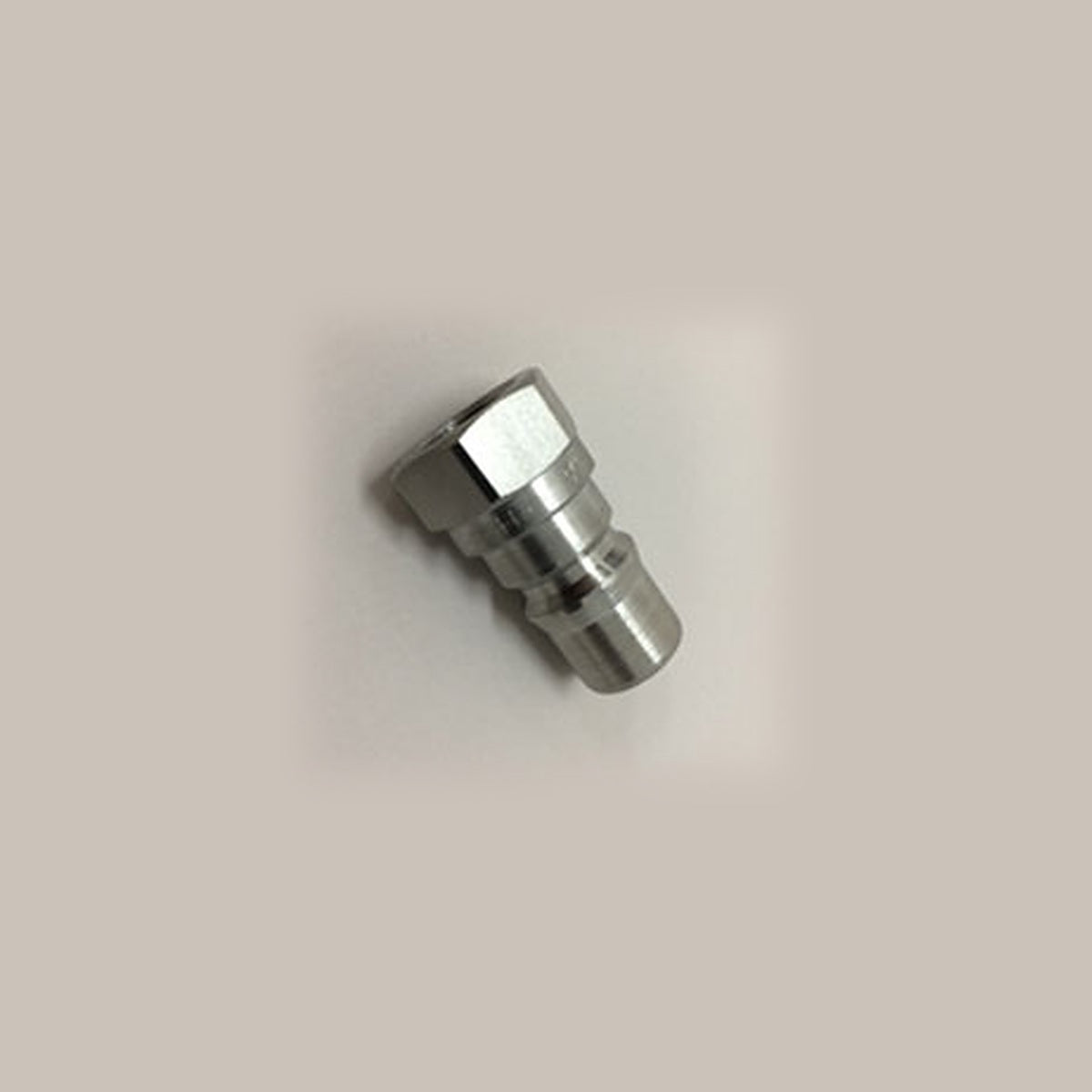

| Male - Water Stop | 220300 |

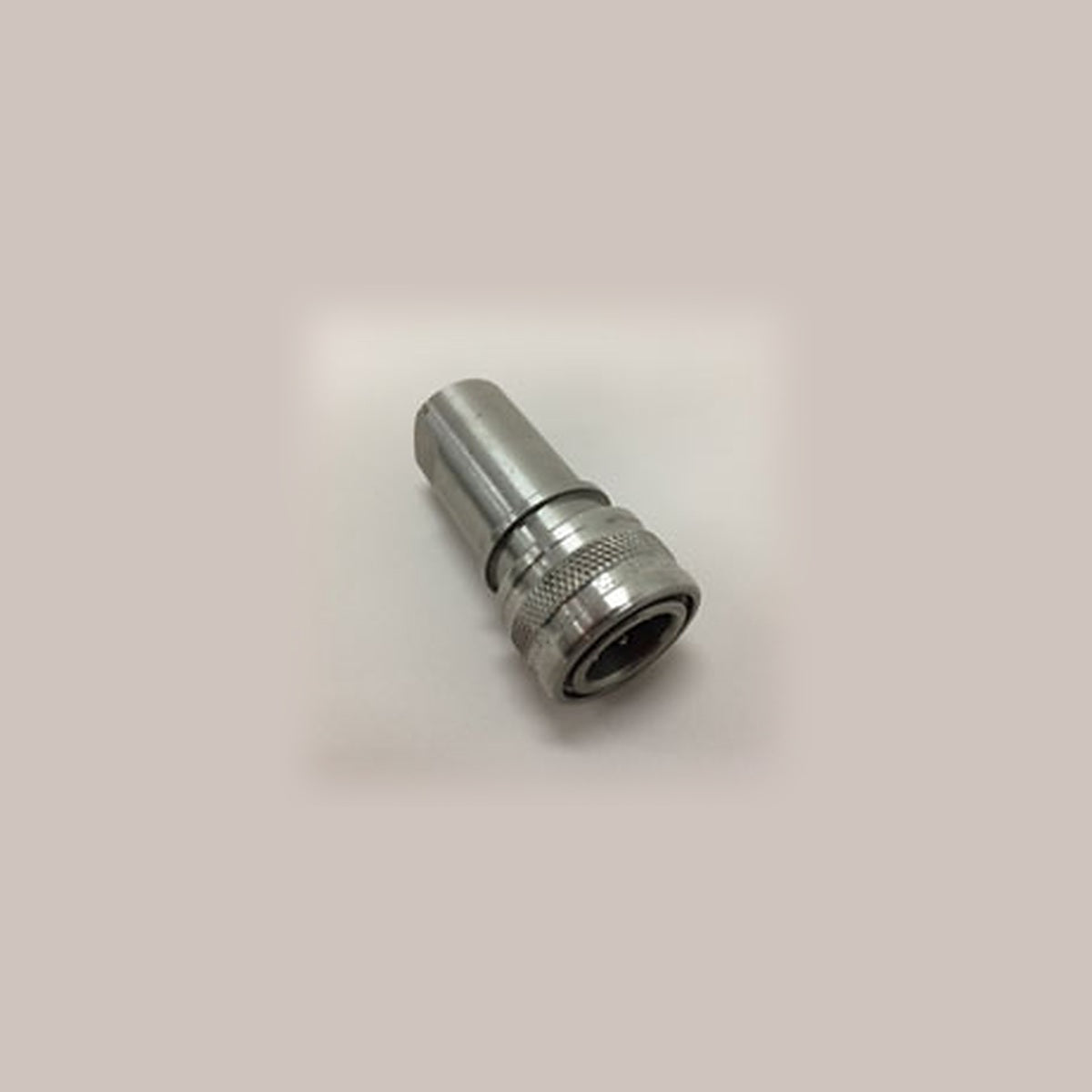

| Female - Water Stop | 220301 |
Key Features
- Water stop design means pulling a gun off does not drain the hose or drip chemical on the crop
- 3,000 psi rating against tools that run at 500 to 800 psi, so the coupler is not the weak point
- Stainless steel throughout for chemical spray service
- One female on the hose plus one male per tool lets an operator change tools in seconds
- The male half is the part Dramm specifies as required for running an L-5E lance on a Hydra
Ideal Applications
- Swapping between a spray gun and an L-5 lance on an MSO or Hydra
- Switching from spraying to drenching with the MS40-DA Drench Adaptor
- Fitting a quick connect to a lance or gun that did not ship with one
- Servicing the coupler on a factory Hydra or MSO hose
- Running one hose across several tools in a spray round
Serves Dramm's hydraulic sprayer line - Hydra, Hydra SprayTrax, MS20 and MSO PRO, MS-Gas, CS-5AGS and BP-4 - with the MS40-TG Turbo gun, the MD-9 gun, the L-5 extension lance and the MS40-DA Drench Adaptor.
