Dramm - Spray Ring for L-5 Extension Lance
Brand: Dramm
Spray Ring for L-5 Extension Lance

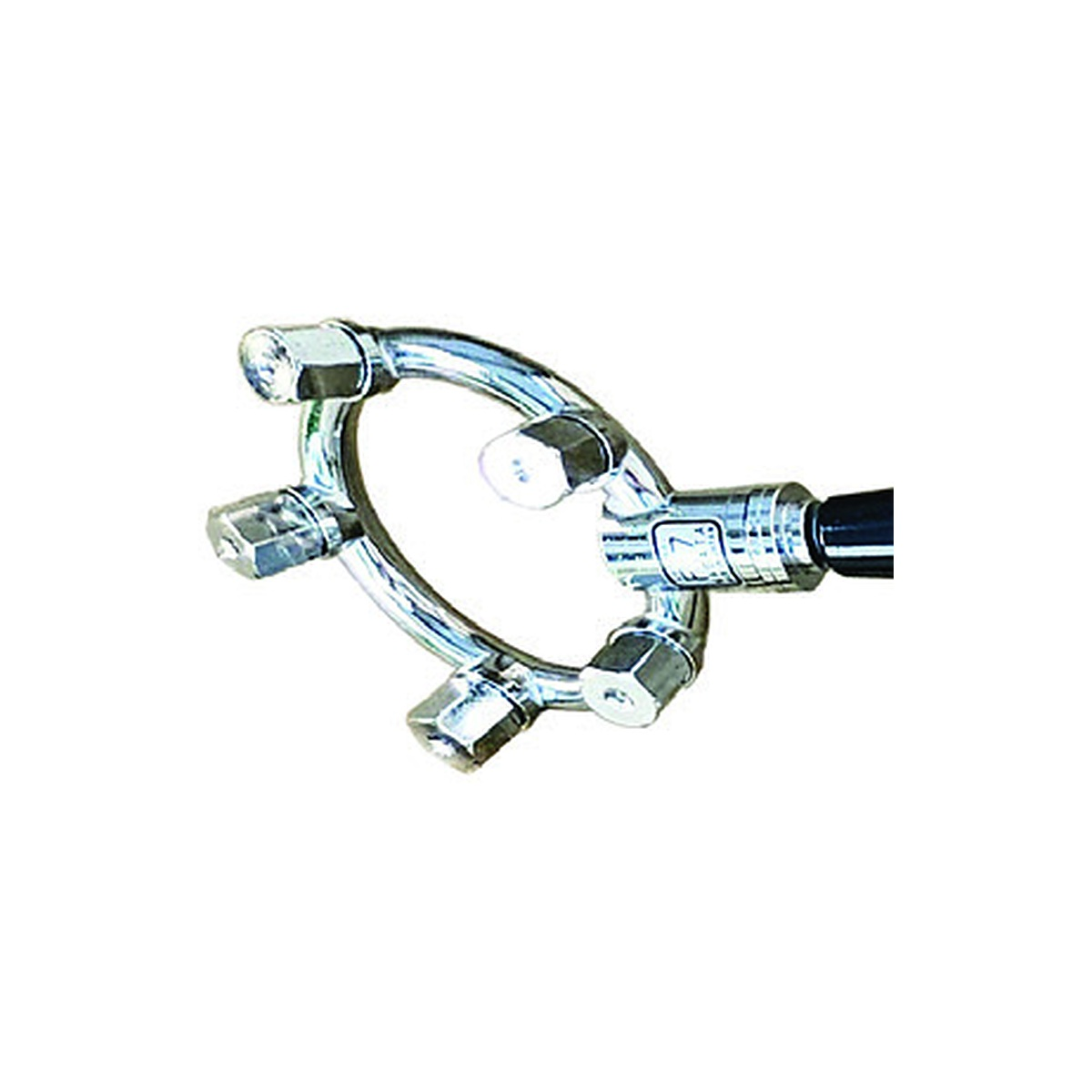

The business end of Dramm's L-5 extension spray lance: a ring carrying five conical jets that fires perpendicular to the wand rather than out the end of it. That geometry is the whole point - held up beside a hanging basket or run along a bench, the lance sprays sideways into the crop from a distance, so an operator treats baskets, wide benches and vertical crops without climbing or reaching over plants. This listing is the ring on its own, for re-nozzling a lance whose grip, valve and shaft are still good.
One configuration, because Dramm builds one ring for the L-5 - there is no three jet or seven jet version and no alternative orifice. The same five nozzle ring is common to the L-5, L-5E, L-5QC and L-5TQC lances, so it is not variant-specific across that group. Worth knowing before you order: Dramm supplies the ring as an integral part of the lance, so this is the route to replacing a ring rather than a whole lance.
Specifications
| Configuration | One ring carrying 5 conical jet nozzles |
| Spray direction | Perpendicular to the wand, not out the end of it |
| Spray character | Variable flow, turbulent conical spray from the five jets |
| Assembled lance flow | 0.5 gpm at 500 psi |
| Assembled lance maximum pressure | 500 psi |
| Lance construction | Chrome plated steel with a plastic hand grip |
| Fits | Common to Dramm's L-5, L-5E, L-5QC and L-5TQC extension lances |
| Lance length | Dramm publishes the adjustable lance as compressed 28 in extending to 41 in; Dramm's separate L-5E page instead prints extends to 30 inches for that variant |
| Availability | Supplied by Dramm as part of a lance assembly; offered here as a standalone replacement ring |
Key Features
- Sprays sideways, so hanging baskets and vertical crops are treated from beside or below without climbing
- Five conical jets rather than one stream, for a full pattern at a distance
- Common to the L-5, L-5E, L-5QC and L-5TQC lances
- A high pressure part - the assembled lance runs to 500 psi at 0.5 gpm
- Available as a standalone replacement ring
- Re-nozzles a lance instead of retiring an otherwise sound assembly
Ideal Applications
- Spraying hanging baskets from below
- Wide benches where the operator cannot reach the middle
- Vertical and tall crops
- Insecticide, fungicide, sanitizer and growth regulator application
- Directed spray into hard to reach areas as the alternative to a gun on an MSO
Fits Dramm's L-5 extension spray lance in its trigger, quick connect and BP-4 forms, which run on MSO, MS20 and MSO PRO, CS-5AGS, MS-Gas, Hydra and BP-4 sprayers.
