PolyRail Mounting Hardware and Bench Riser Components
The hardware that turns 12 ft lengths of PolyRail extrusion into a hung or bench-mounted irrigation run: bands that splice sections end to end, hangers that set which way the tubing outlet points, an end stop, a grip clip and the aluminum post riser assembly used over rolling benches. Bought a run at a time alongside the rail itself. None of it touches the water - it holds the rail, and the rail holds the tubing.
Choose by Component; Size only means something on four of them. Connecting Band comes in 4 in and 14 in, both with set screws, and joins two rail sections. 90 Degree Hanger is listed here in 16mm and snaps to the outer side of the rail to turn the outlet sideways. Top Hanger rides on the rail to aim the outlet toward the bottom of the rail and is fitted at the same time as the band. End Stop takes a set screw and goes just ahead of the first and last hanger so the line cannot slide off as water turns on and off. Grip Clip is 25mm and holds the tubing in the rail against twisting. Bench Riser Post is a height choice, 24 in, 36 in or 48 in, and pairs with the Bench Riser Base at the bench and the Bench Riser Cap with Hook at the top. Top Hanger, End Stop, Base and Cap are single-size parts.
Specifications
| Connecting band | 4 in and 14 in lengths, both with set screws; Dramm supplies two 8mm stainless screws per band |
| Band and hanger spacing | A connecting band every 12 ft, with two or more hangers on a section before a band goes in; hangers roughly 10 to 12 ft apart |
| Hangers | The 90 degree hanger is listed here in 16mm and snaps to the outer side of the rail to aim the outlet sideways; the top hanger rides on the rail and aims the outlet toward the bottom |
| End stop | Single size, includes a set screw, used at both ends of each irrigation run |
| Grip clip | 25mm; holds PE tubing in place and prevents twisting |
| Bench riser posts | 24 in, 36 in and 48 in, described by Dramm as easily interchangeable, spaced at 12 ft intervals along the bench |
| Bench riser base and cap | Single size each; the base fastens offset to the bench top with one fastener hole on the bench centreline, and the cap carries the J-hook the rail hangs from. Fasteners are not supplied |
Configurations
| Component | Size | Part number |
|---|---|---|
| Grip Clip | 25mm | ALUGRIP-25 |

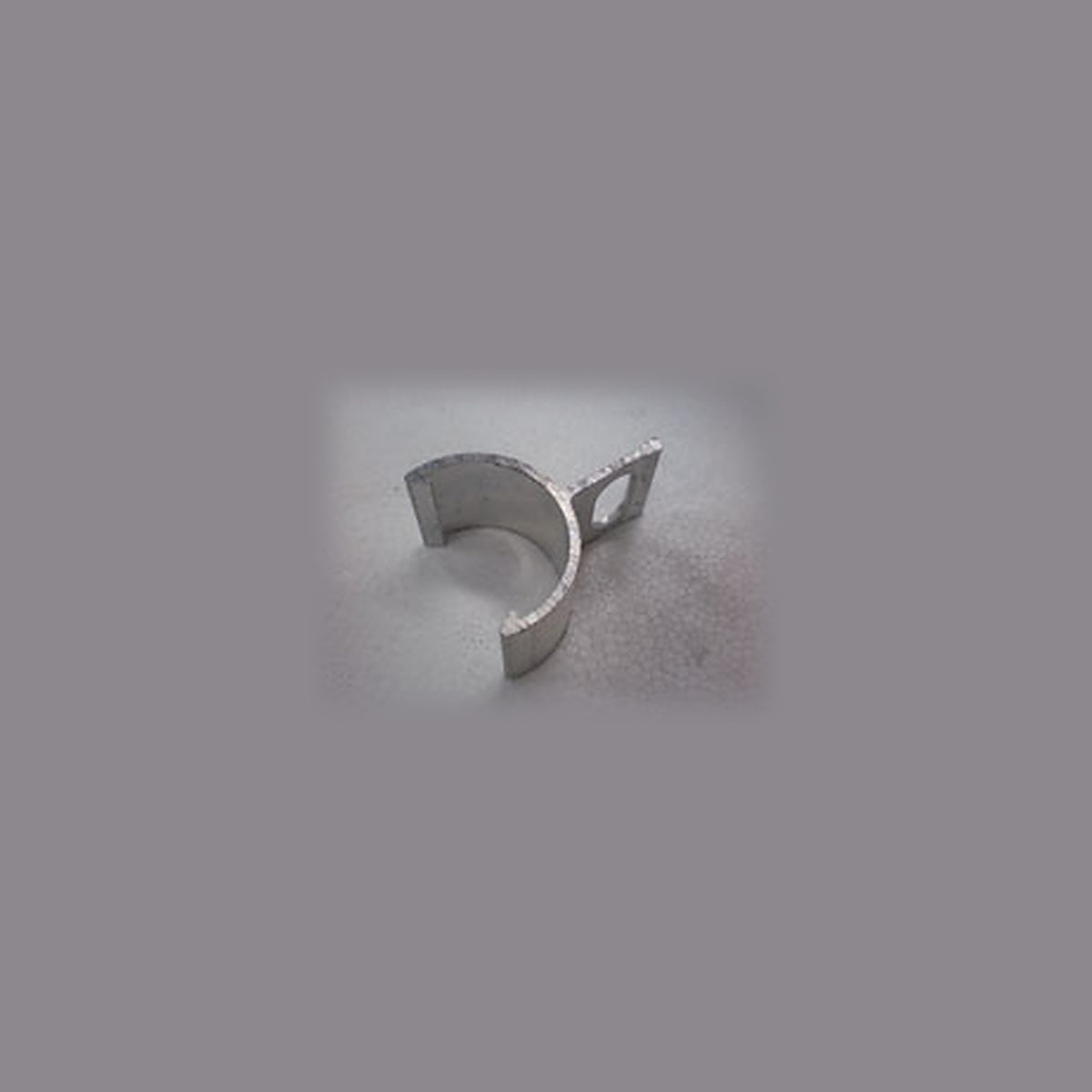

| 90 Degree Hanger | 16mm | ALU500PH |

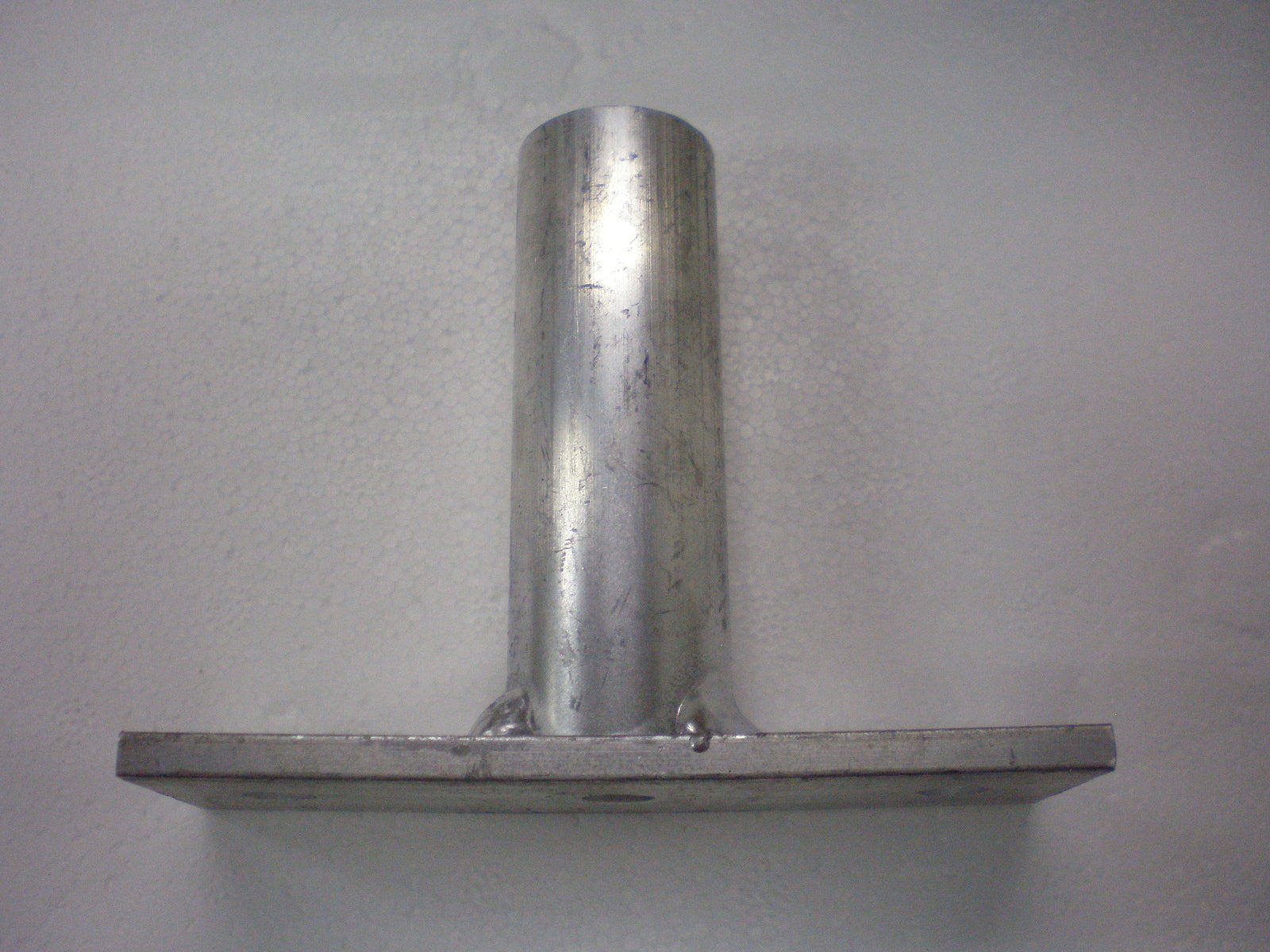

| Bench Riser Post | 24 in | ALUPR24 |

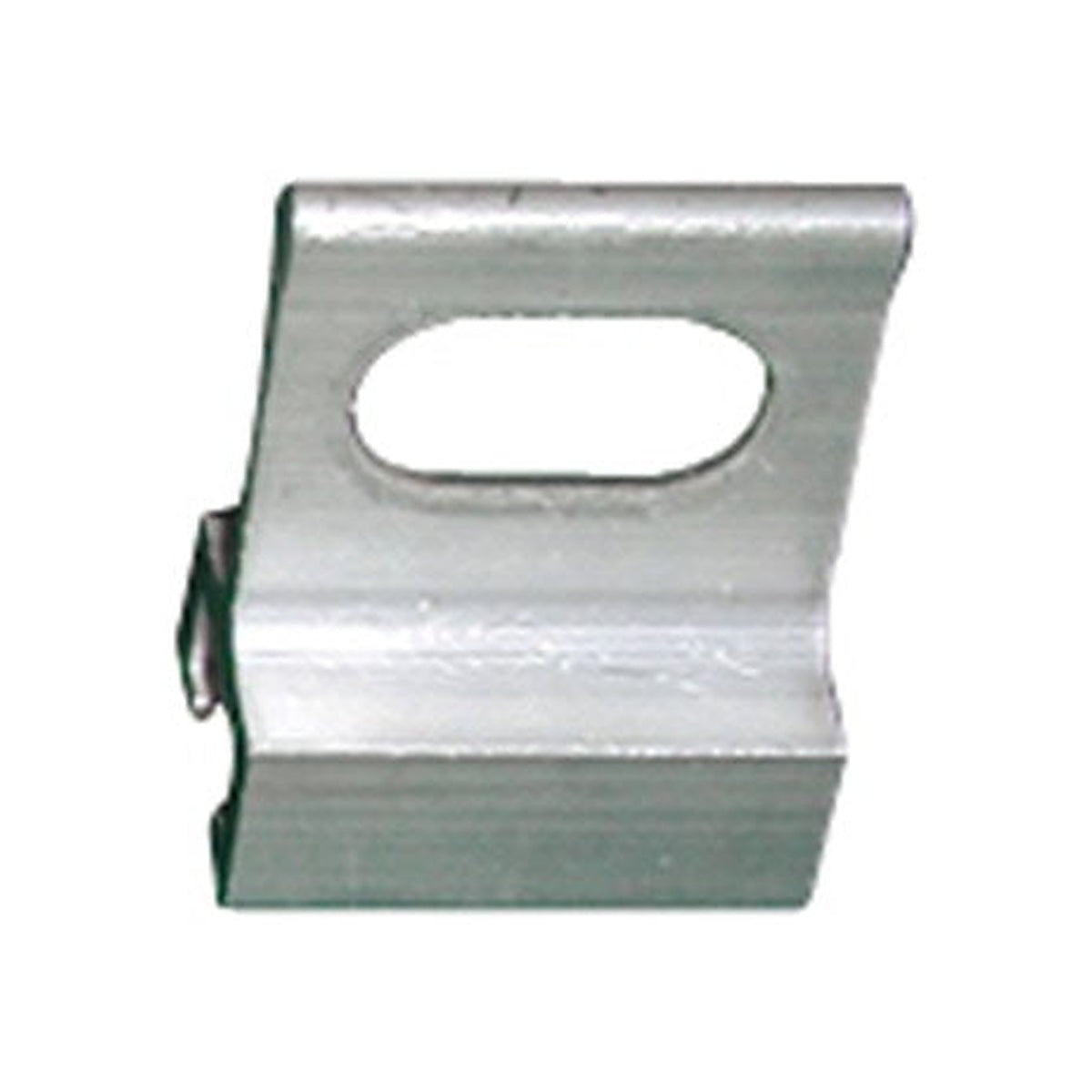

| Top Hanger | One Size | ALU502H |
| Bench Riser Post | 36 in | ALUPR36 |

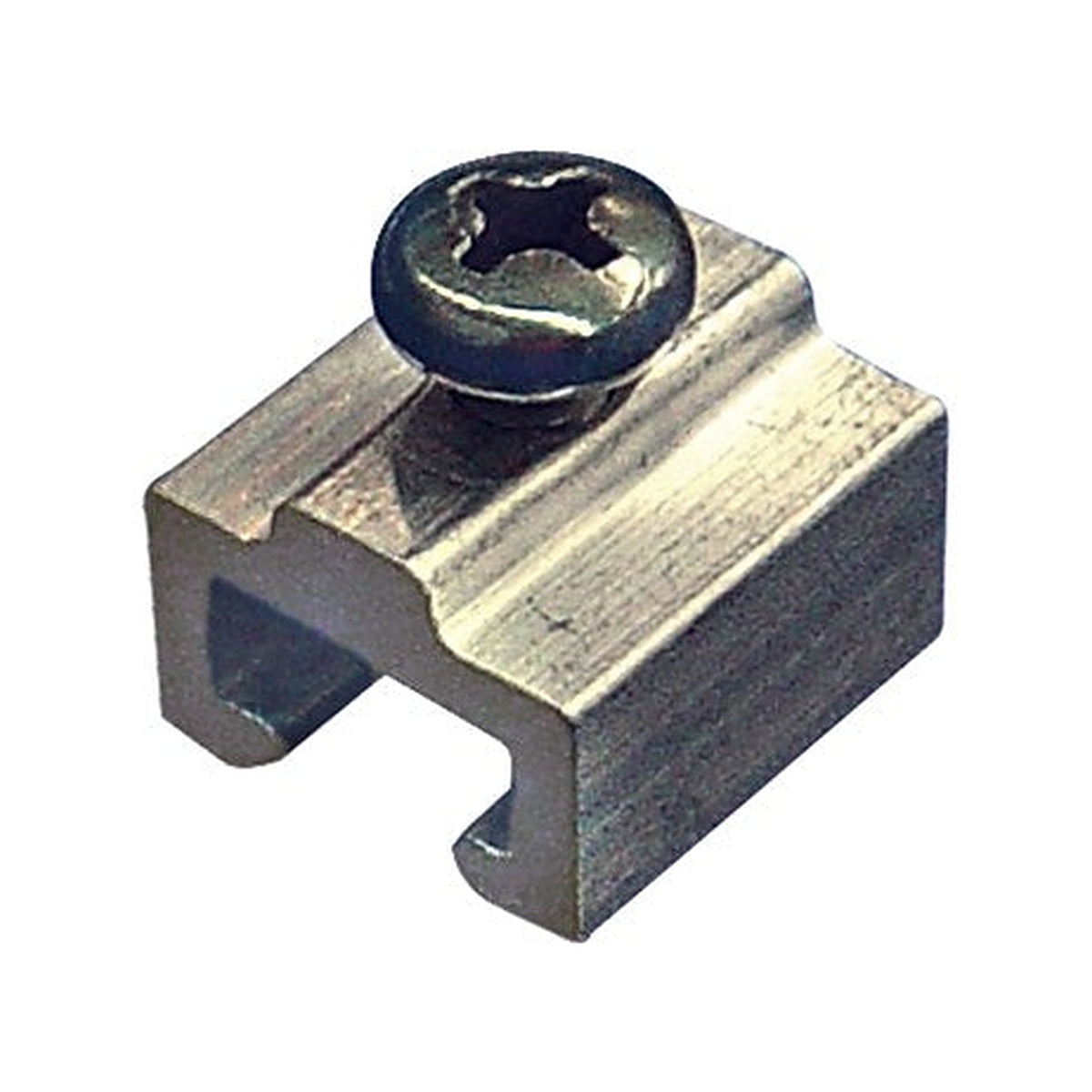

| End Stop | One Size | ALU541S |
| Bench Riser Post | 48 in | ALUPR48 |

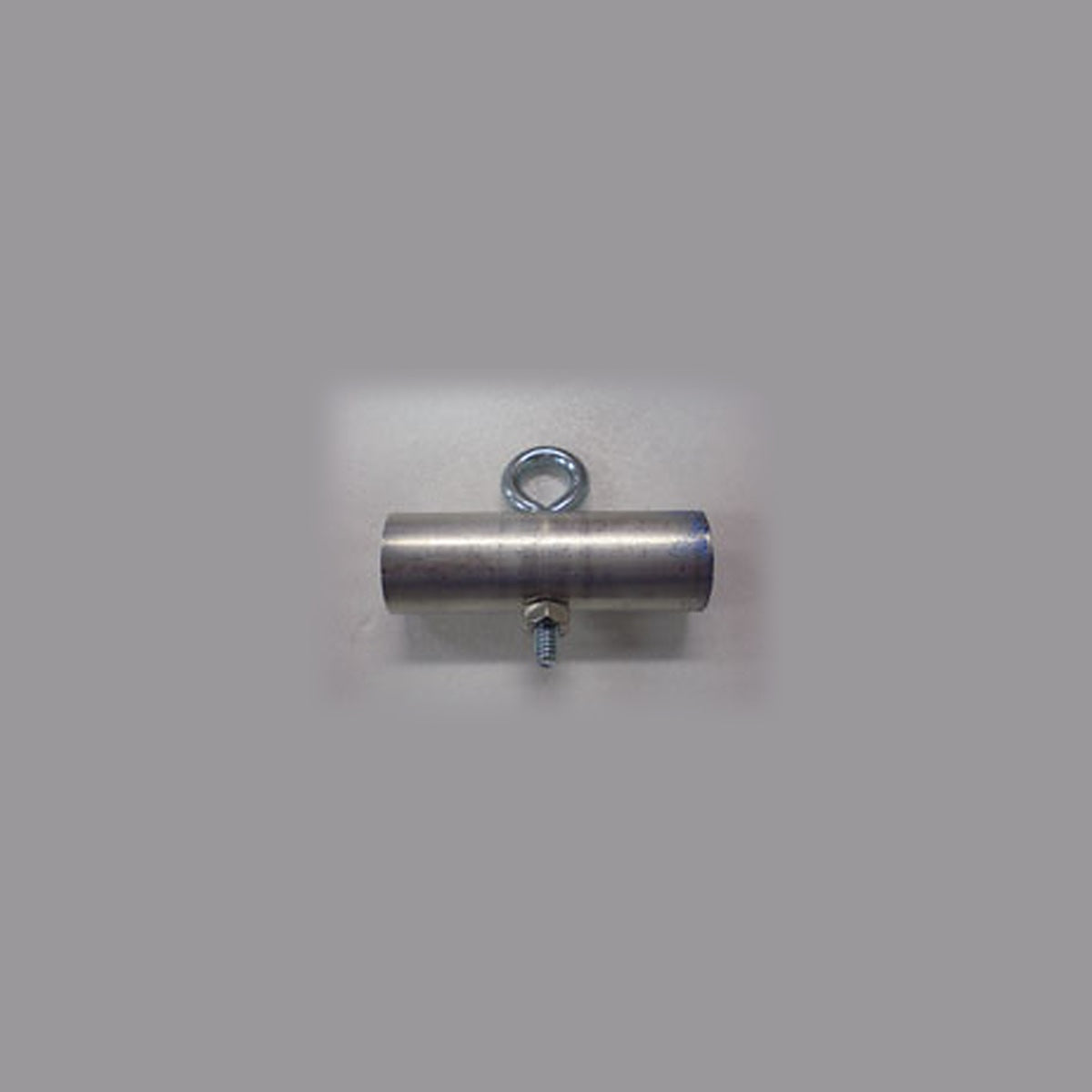

| Bench Riser Cap with Hook | One Size | ALUSC |

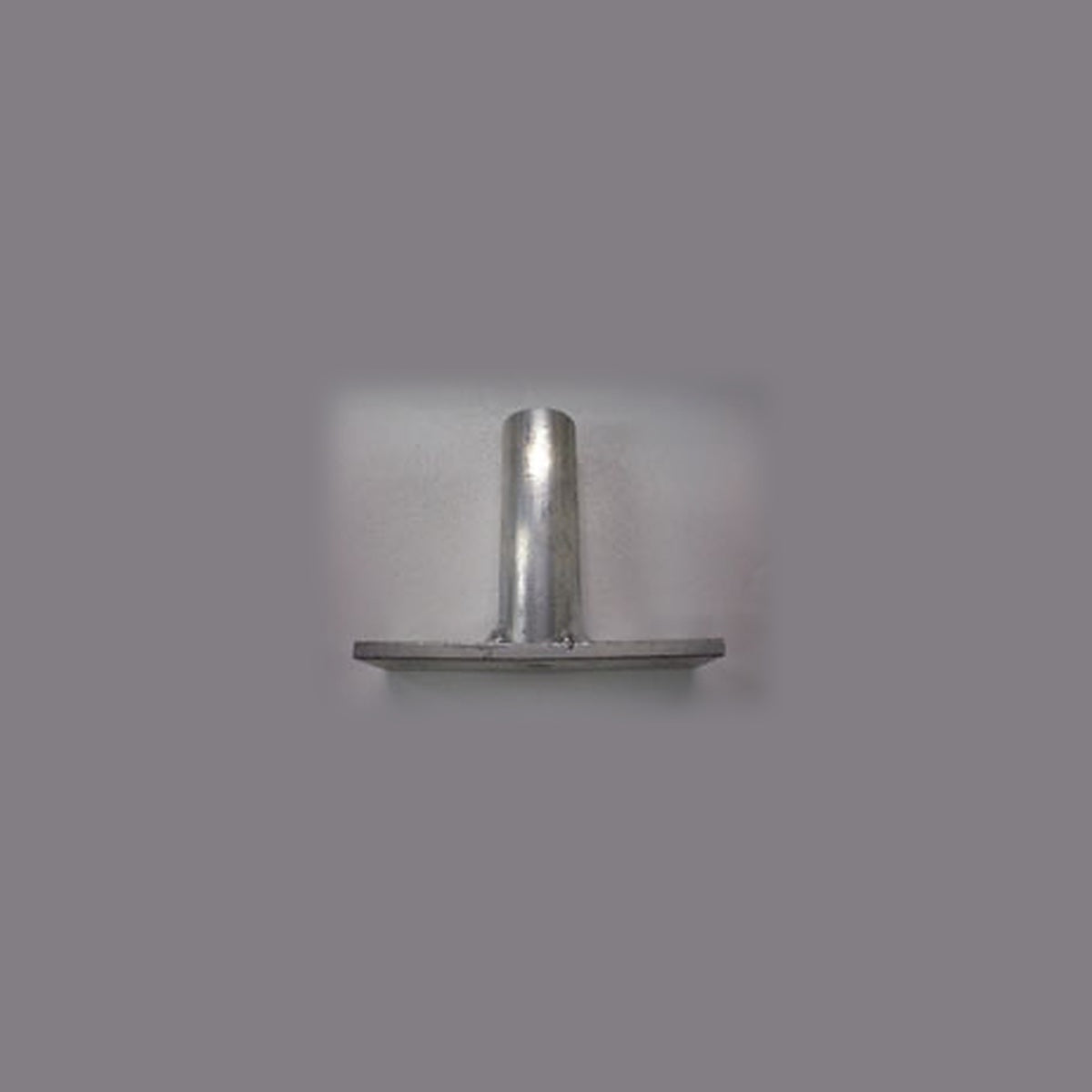

| Bench Riser Base | One Size | ALUSB |

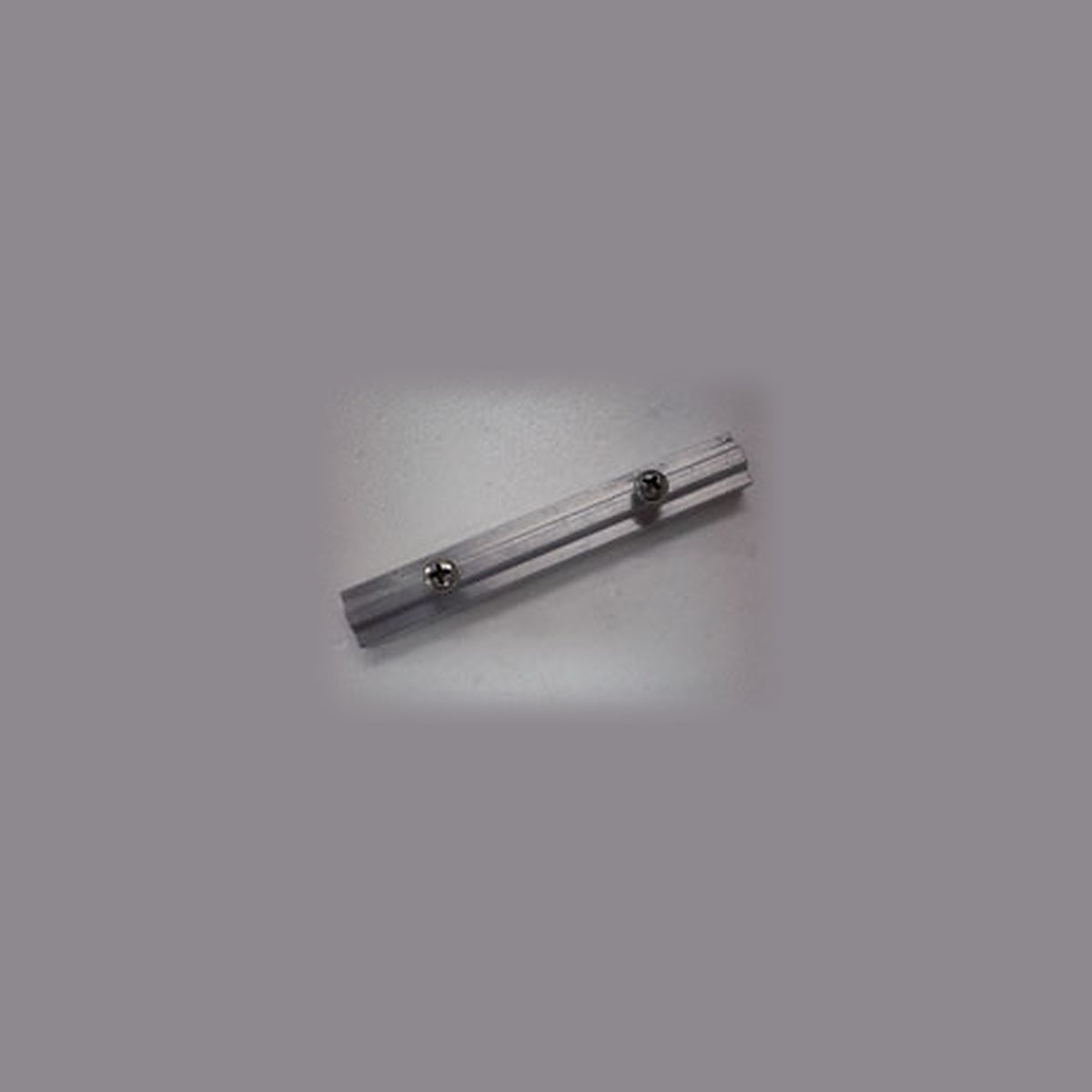

| Connecting Band | 4 in | ALU501CB |

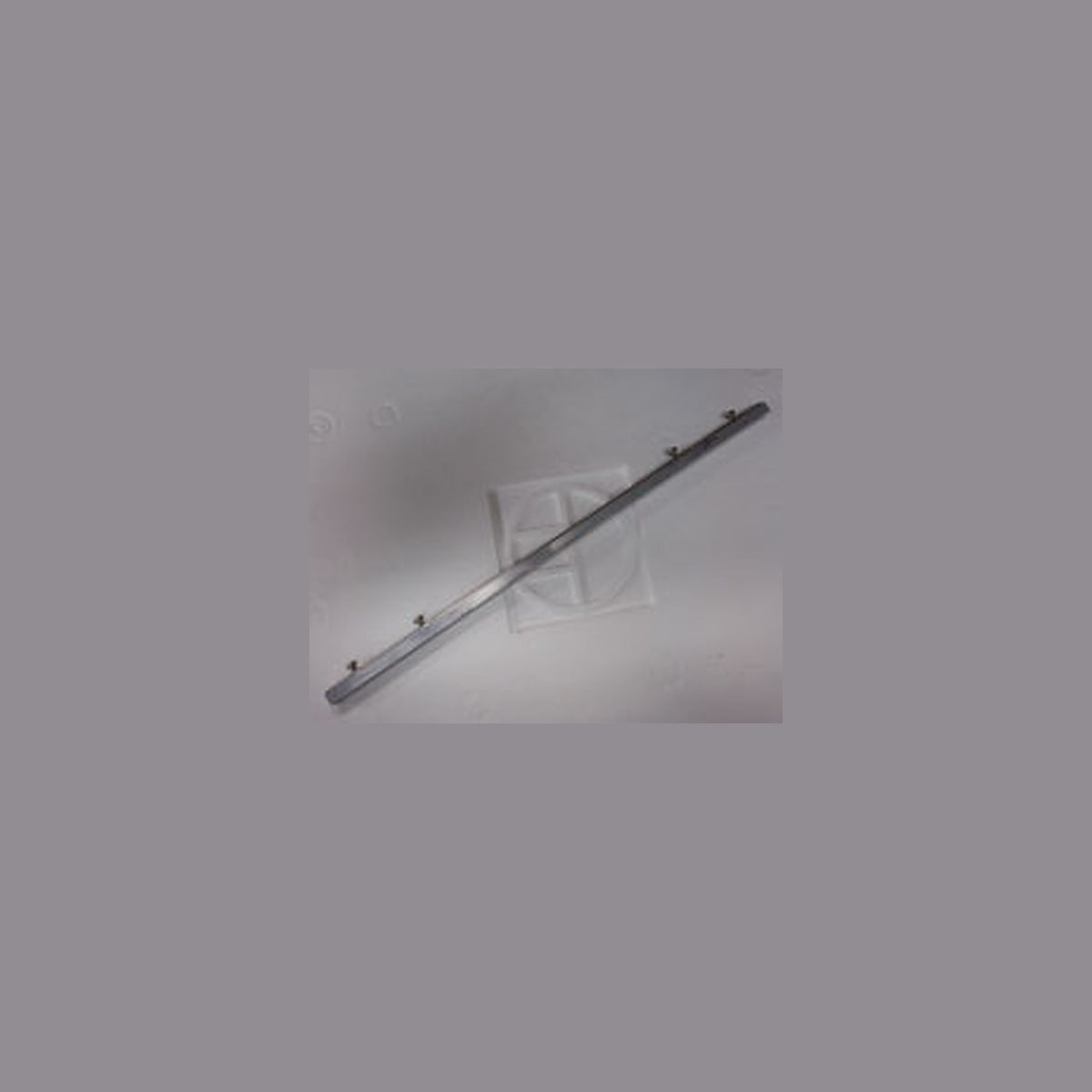

| Connecting Band | 14 in | ALU50135 |
Key Features
- Splices 12 ft rail sections into a continuous run down a bay
- Two hanger types set nozzle orientation, down or sideways, without changing the rail
- End stops keep the line from walking off its hangers as it pressurises and de-pressurises
- Bench riser posts stand the rail over a rolling bench so the pattern travels with the bench
- The grip clip stops 25mm tubing rotating in the channel
- Aluminum riser posts in three interchangeable heights
Ideal Applications
- Splicing 12 ft rail sections into a continuous run
- Setting nozzle orientation on a hung rail
- Stopping the rail sliding off its hangers as the line cycles
- Standing a rail above a rolling bench
- Holding PE tubing in the rail and stopping it rotating
This is PolyRail hardware, and Dramm lists Kwik Klamps and Kwik Spacers in the same parts guide; the fittings that join the tubing itself are EasyLoc in 16mm and PolyLoc in 16mm and 25mm, while PipeLoc is an unrelated Dramm line for large PVC pipe.
