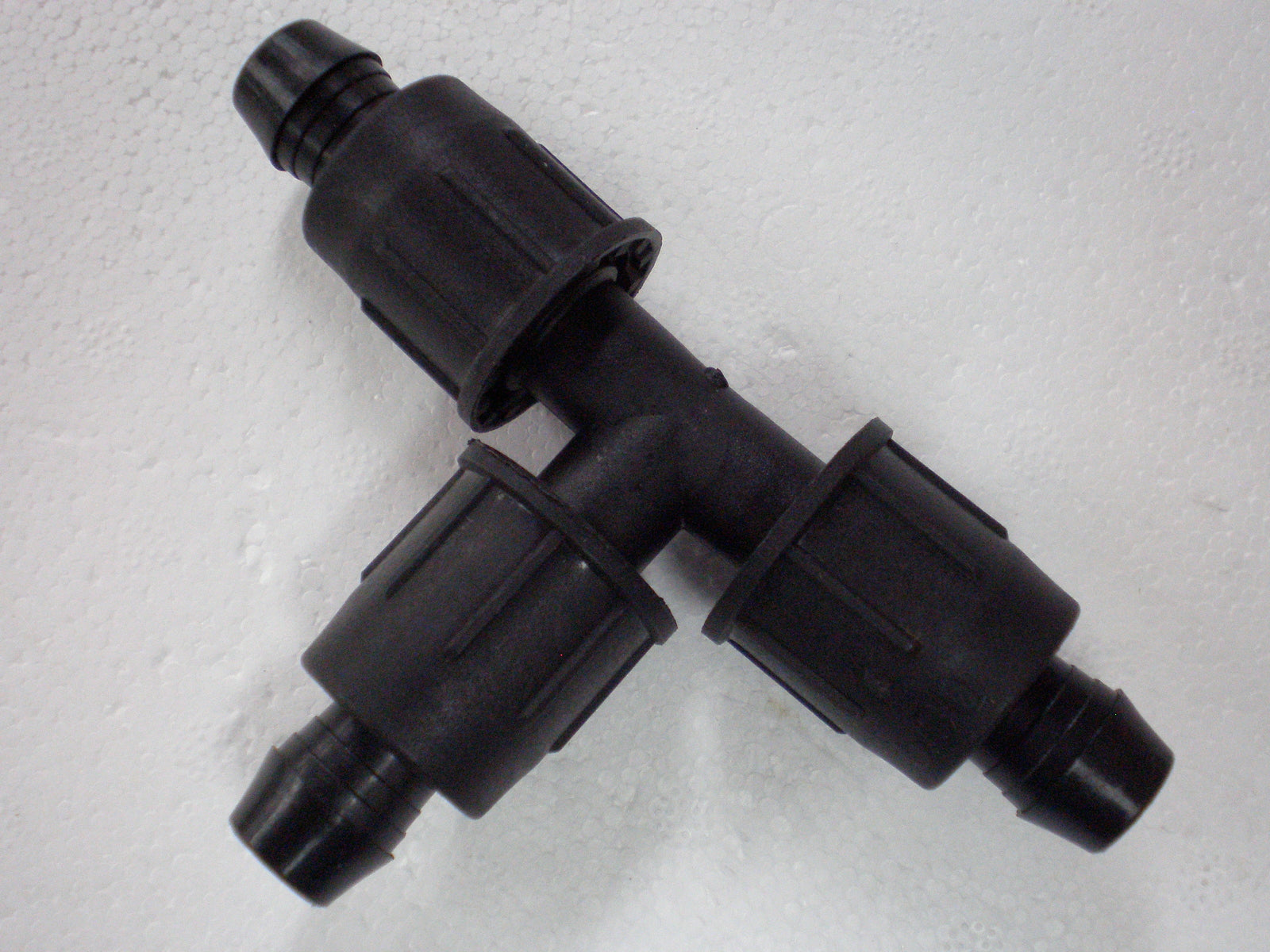

PolyLoc Tee Fitting
A PolyLoc tee branches a polyethylene irrigation lateral. Each PolyLoc leg is a compression port that closes onto the tubing itself, and the centre leg is either a third PolyLoc port or a pipe thread for tapping into a PVC header, valve manifold or valve station. Run legs are 16mm on the 16mm options and 25mm on the 25mm options. Bought by greenhouse and nursery growers plumbing overhead, mist and bench laterals in Dramm 16mm and 25mm PE tubing.
Two choices. First the run size: the 16mm options splice into 16mm PE lateral, the 25mm options into 25mm PE. Then the centre leg. Female Thread (FPT) puts a female pipe thread on the branch and is offered as 16mm run with a 3/4 in or 1 in branch, and 25mm run with a 3/4 in or 1 in branch. Male Thread (MPT) is offered in one build, a 25mm run with a 1 in male branch, for screwing into a female port rather than onto a male one. PolyLoc Compression keeps all three legs on tubing: 25mm x 16mm x 25mm reduces to a 16mm sub-lateral at the tee, 25mm x 25mm x 25mm stays full bore. Option sizes read in flow order, inlet x branch x outlet.
Specifications
| Run legs | 16mm PE on the 16mm options; 25mm PE on the 25mm options |
| Branch leg | 3/4 in or 1 in pipe thread on the threaded options; a 16mm or 25mm PolyLoc compression port on the all-PolyLoc options |
| Branch thread | Female (FPT) on four options, male (MPT) on one; the two all-PolyLoc options have no thread |
| Reading the option | Three sizes given in flow order, inlet x branch x outlet |
| Tubing it fits | Dramm 16mm PE lateral tubing in 100 ft, 500 ft and 1000 ft, and 25mm PE lateral tubing in 110 ft and 330 ft |
| Family | PolyLoc, which Dramm sizes in 16mm and 25mm only |
Configurations
| Size | Branch Connection | Part number |
|---|---|---|
| 16mm x 3/4 in x 16mm | Female Thread (FPT) | PLTFF-1607516 |
| 16mm x 1 in x 16mm | Female Thread (FPT) | PLTFF-16116 |
| 25mm x 1 in x 25mm | Male Thread (MPT) | PLTFM-25125 |
| 25mm x 3/4 in x 25mm | Female Thread (FPT) | PLTFF-2507525 |
| 25mm x 1 in x 25mm | Female Thread (FPT) | PLTFF-25125 |
| 25mm x 16mm x 25mm | PolyLoc Compression | PLT-251625 |
| 25mm x 25mm x 25mm | PolyLoc Compression | PLT-252525 |
Key Features
- Branches a PE lateral in line, with no clamped saddle cut into the run
- Threaded branches land straight on PVC headers, valve manifolds and valve stations
- The all-PolyLoc options step a 25mm run down to a 16mm sub-lateral at the tee
- Grip rings and coupling nuts are stocked separately in 16mm and 25mm, so a weeping joint can be rebuilt instead of the tee replaced
- Uses the same Dramm PE lateral tubing the PolyRail extrusion carries
Ideal Applications
- Branching a greenhouse overhead or propagation mist lateral
- Tapping a PE lateral off a PVC header or valve station
- Reducing from a 25mm main run to a 16mm sub-lateral
- Bay and bench irrigation laid out in Dramm PE tubing
PolyLoc is Dramm's compression fitting family for 16mm and 25mm PE tubing, EasyLoc is the separate barb-and-nut family Dramm makes in 16mm only, and PolyRail is the aluminum extrusion that same tubing snaps into; PipeLoc is an unrelated Dramm line for large PVC pipe and shares no parts with any of them.
