Dramm - PolyLoc Elbow Fitting

Brand: Dramm

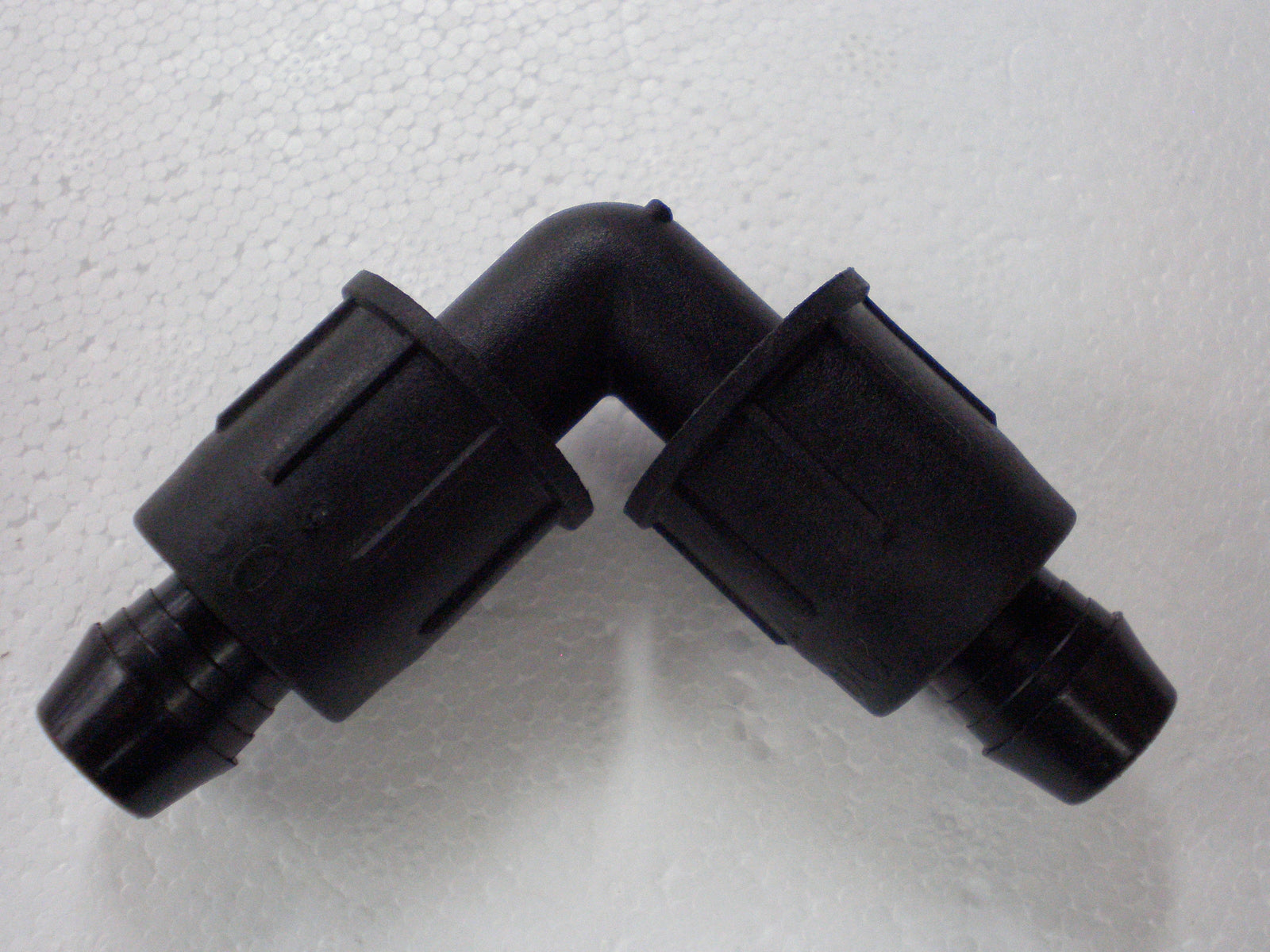

PolyLoc Elbow Fitting

A 90 degree corner fitting for a PE irrigation lateral. One leg is a PolyLoc compression port onto the tubing, 16mm on the 16mm option and 25mm on the three 25mm options; the other leg is either a female pipe thread or a second PolyLoc port. Growers use them to turn a lateral at the end of a bench or bay and to drop a run onto a threaded riser or valve.

Start with the PE size: one option takes 16mm tubing, three take 25mm. Then the outlet. The Female Thread (FPT) options finish in a female pipe thread and cover 16mm x 3/4 in, 25mm x 3/4 in and 25mm x 1 in, so pick the thread that matches the riser, valve or cap already in place. The single PolyLoc Compression option, 25mm x 25mm, is tubing on both legs and has no thread to seal - that is the one for a corner in the middle of a 25mm run.

Specifications

Configurations

Key Features

• Turns a lateral through 90 degrees without coiling a loop of tubing at the corner
• Threaded options screw onto PVC risers, valve outlets and threaded caps
• The 25mm x 25mm option keeps the corner all tubing, with no thread to seal
• Grip rings and coupling nuts stocked separately in both sizes for rebuilding a joint
• Shares tubing sizes with the PolyLoc tees, couplings, adaptors and valves on the same run

Ideal Applications

• Turning a lateral at the end of a bench, bed or bay
• Dropping a lateral onto a threaded PVC riser or valve
• Ending a run into a threaded cap or shut-off
• Cornering a 25mm main run without a threaded joint

PolyLoc is Dramm's compression fitting family for 16mm and 25mm PE tubing, EasyLoc is the separate barb-and-nut family Dramm makes in 16mm only, and PolyRail is the aluminum extrusion that same tubing snaps into; PipeLoc is an unrelated Dramm line for large PVC pipe and shares no parts with any of them.
