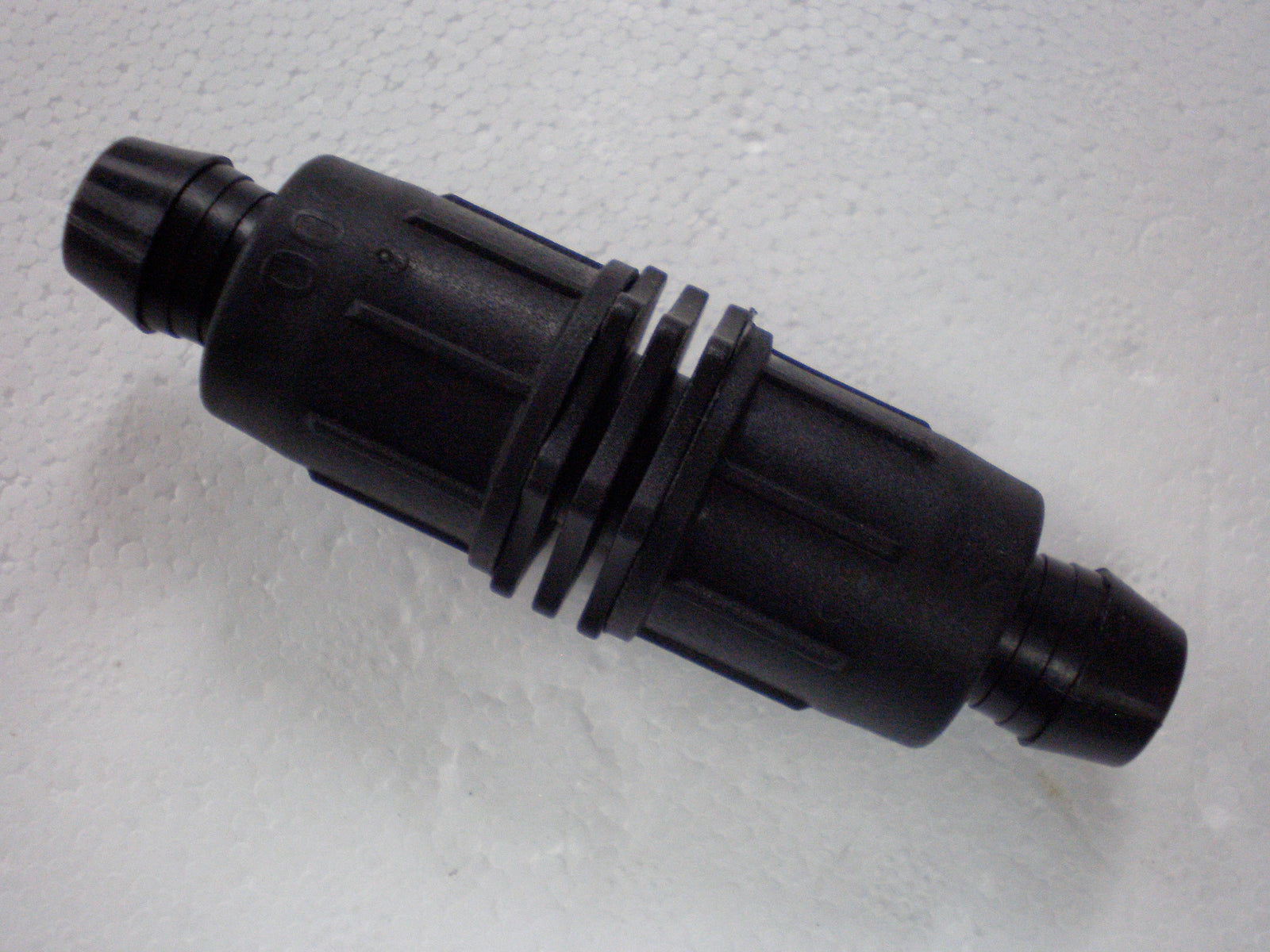

Dramm - PolyLoc Coupling, Thread Adaptor and Plug
Brand: Dramm
PolyLoc Coupling, Thread Adaptor and Plug
The straight-line PolyLoc parts for a 25mm PE lateral: a coupling that joins two lengths, two thread adaptors that take the tubing onto pipe thread, and a plug that closes a run. All four are 25mm on the tubing side. Bought to extend, repair, transition or cap a 25mm PE main run.
Choose by Type; the Size option follows from it rather than being a free choice, because every part on this page is 25mm on the PE side. Straight Coupling is 25mm x 25mm, for joining two rolls or splicing out a damaged length. Female Thread Adaptor is 25mm x 1 in FPT and Male Thread Adaptor is 25mm x 3/4 in MPT - each is made in one thread only, so the fitting has to match the thread already on the PVC, filter or valve. End Plug is 25mm and closes the end of a run or a spare outlet. Nothing here fits 16mm tubing.
Specifications
| Tubing size | 25mm PE on all four options |
| Thread | 1 in female (FPT) on the female adaptor; 3/4 in male (MPT) on the male adaptor; no thread on the coupling or the plug |
| Coupling | 25mm x 25mm, straight through |
| End plug | 25mm, closes the end of a run |
| Nominal inch size of 25mm PE | Dramm gives 25mm as 3/4 in nominal diameter; the figures above are the actual threads cut on the adaptors |
| Tubing it fits | Dramm 25mm PE lateral tubing, supplied in 110 ft and 330 ft rolls |
Configurations
| Type | Size | Part number |
|---|---|---|
| Male Thread Adaptor | 25mm x 3/4 in MPT | PLFM-25075 |
| End Plug | 25mm | PLP-25 |
| Straight Coupling | 25mm x 25mm | PLC-2525 |
| Female Thread Adaptor | 25mm x 1 in FPT | PLFF-251 |
Key Features
- Joins two rolls of 25mm PE, or splices out a damaged length, in line
- Thread adaptors move a 25mm run onto pipe thread at a filter, valve or PVC header
- End plug caps a run for flushing or for a later extension
- Grip rings and coupling nuts stocked separately in 25mm for rebuilding any of these joints
- Same 25mm PE tubing the 25mm PolyRail extrusion carries
Ideal Applications
- Joining two rolls of 25mm PE to extend a lateral
- Repairing a cut or damaged section of 25mm main run
- Transitioning 25mm PE to threaded PVC at the supply end
- Capping the far end of a 25mm run
PolyLoc is Dramm's compression fitting family for 16mm and 25mm PE and this page is its 25mm straight-line set; EasyLoc is the separate 16mm-only barb-and-nut family and is where the 16mm coupling and adaptors live, PolyRail is the aluminum extrusion the same tubing snaps into, and PipeLoc is an unrelated Dramm line for large PVC pipe.
