Dramm - Poly Tubing Clips, Clamps and Grommets

Brand: Dramm

Poly Tubing Clips, Clamps and Grommets

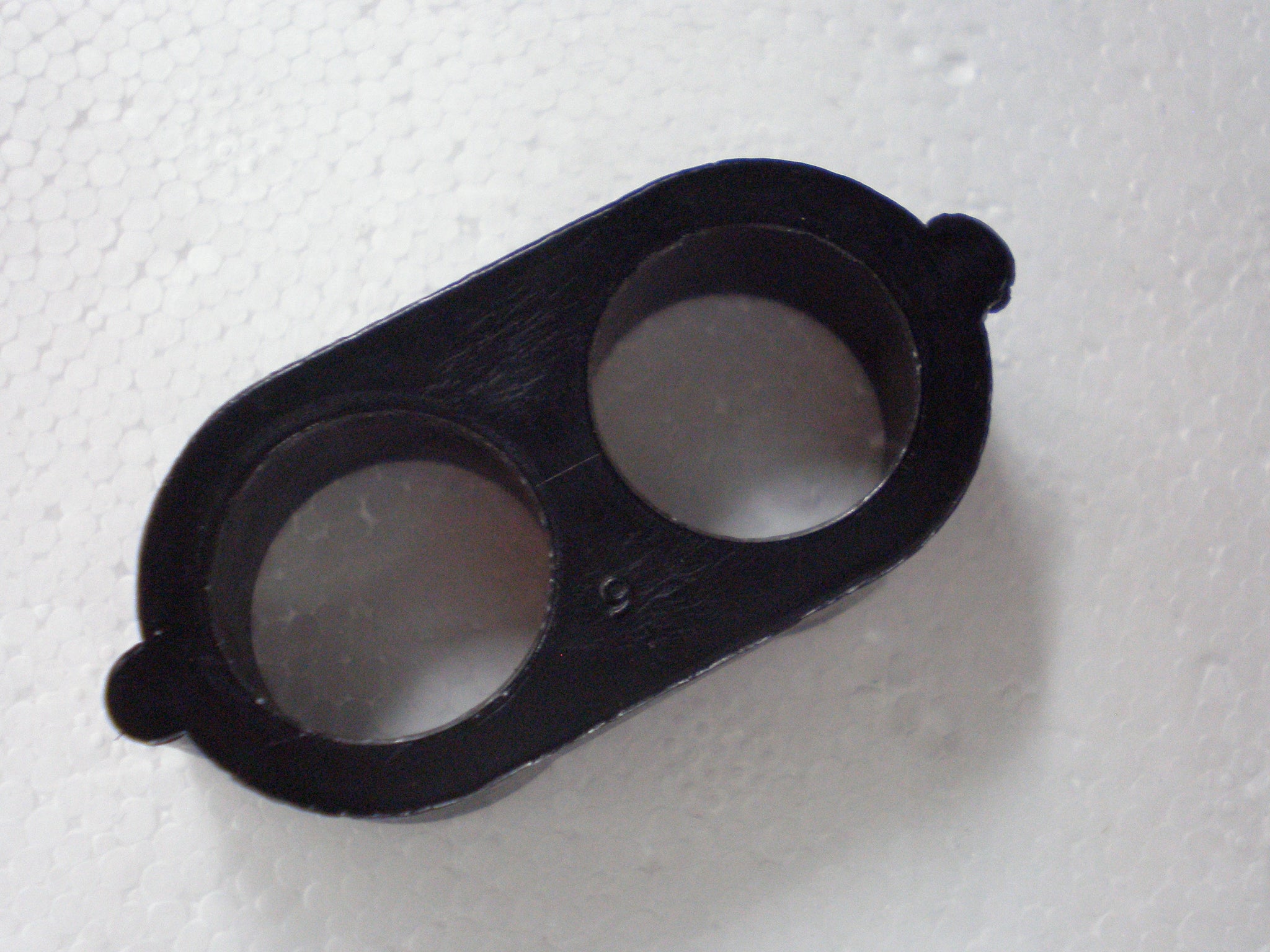

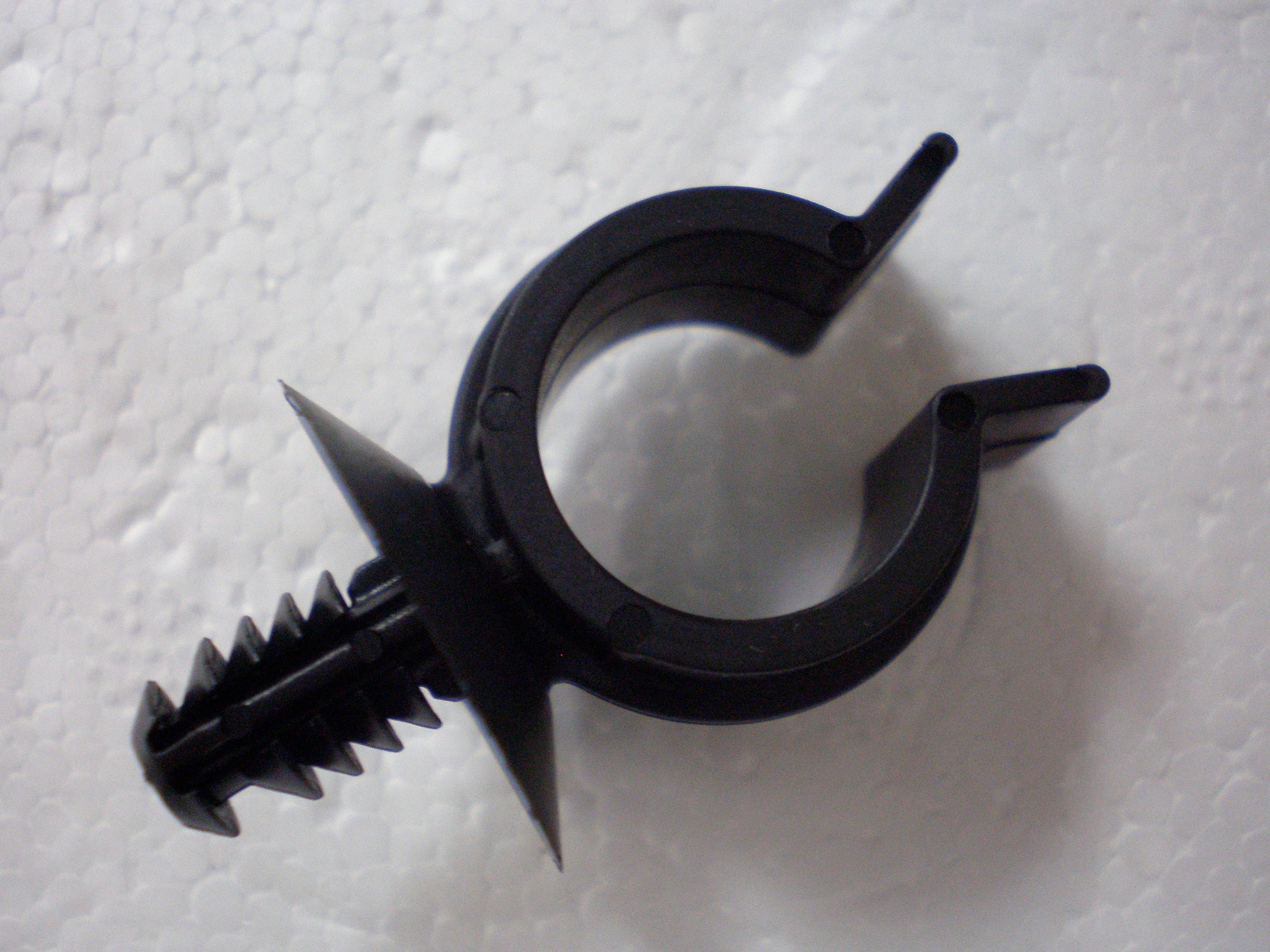

Four separate installation parts that close, hold and dress a polyethylene irrigation line. The figure 8 end clamp folds the end of a 16mm line back on itself and locks it shut, so a run can be flushed and then closed without a fitting. The tube clip carries a fir tree barb on one side and a snap-open ring on the other: drive the barb into a 1/4 in hole drilled 1/2 in deep, turn the clip to the angle you want, then snap 16mm tubing into the ring. The No. 400 top hat grommet drops into a hole drilled 14mm or 9/16 in through rigid pipe and seals a barbed take-off into it, so the pipe never has to be threaded. The wire tie is the general purpose 8.5 in black tie Dramm supplies for bundling tubing, drop lines and valve wire along a bench or rail.

Choose by the job in front of you, because these four do not substitute for each other. The figure 8 end clamp is the cheapest way to close a 16mm lateral you still want to be able to open and flush; it needs no hole and no tool. Pick the tube clip when tubing has to be held off a bench leg, post or rail at a set angle and you can drill into that structure: the fir tree barb needs a 1/4 in hole about 1/2 in deep, so it will not work on thin sheet or on anything you cannot drill into. The top hat grommet is the only part here that goes through a pipe wall rather than around the tubing, and the hole size is the whole decision: drill 14mm or 9/16 in, no larger, or the grommet will not seal. Wire ties at 8.5 in are for dressing rather than support, so they will bundle a lateral to a wire or a frame but will not hold spacing or angle the way a clip does.

Specifications

Configurations

Key Features

• Figure 8 end clamp folds a 16mm polyethylene line shut and locks it, so the run can be flushed before it is closed
• No fitting or cement is needed at the end of a run, and the clamp comes off again when the line has to be flushed
• Tube clip combines a fir tree barb and a snap ring, so tubing is held without cutting into the line
• Fir tree barb seats in a 1/4 in hole drilled 1/2 in deep, and the ring turns to any angle once the barb is in
• No. 400 top hat grommet seals a barbed take-off into rigid pipe with no threading and no glue
• Grommet hole size is fixed: 14mm or 9/16 in
• 8.5 in wire ties for bundling tubing, drop lines and low voltage valve wire along a run
• All four install with a drill and hand pressure; no cement, heat or press tooling

Ideal Applications

• Closing the end of a 16mm PolyRail or bench lateral after flushing
• Holding 16mm supply tubing against bench frames, posts and greenhouse structure
• Running a drop line down a post at a fixed angle
• Taking a poly lateral off a rigid PVC or metal main through a drilled hole
• Bundling irrigation tubing and low voltage solenoid wire along a rail
• Retrofit and repair work on lines that have to be reopened later

These go in alongside Dramm 16mm PE tubing and PolyRail, the Easyloc barb and compression fittings and Easyloc inline valve used at the ends of the same laterals, and the BLANK3 goof plug that closes a mispunched nozzle hole.
