Dramm - Poly Threaded Elbow
Brand: Dramm

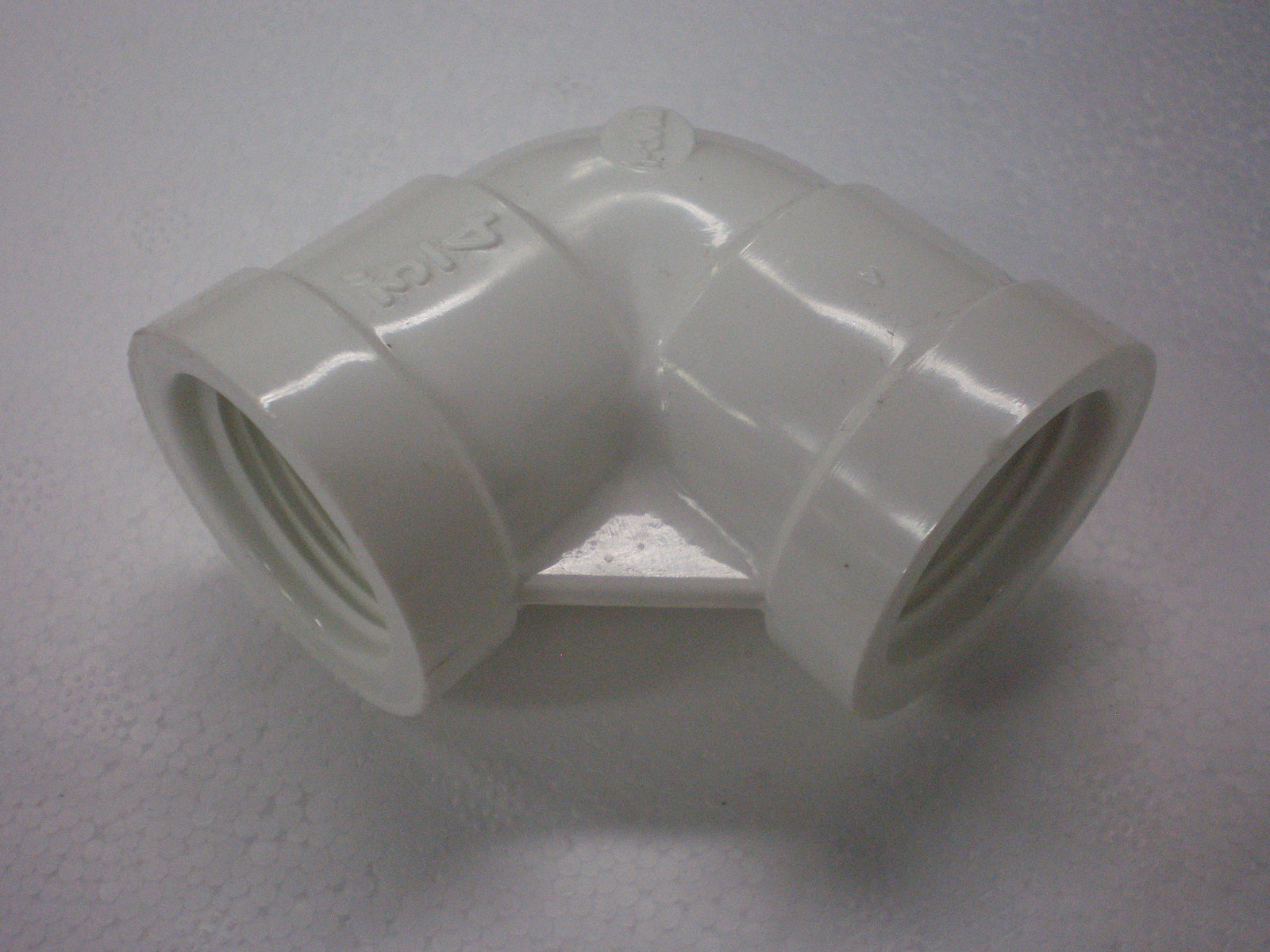

Poly Threaded Elbow
A 90 degree threaded elbow for the supply side of an irrigation system, in 3/4 in and 1 in pipe threads. Both ends are pipe thread, so it turns a corner in threaded plumbing rather than terminating PE tubing. Despite sharing a part number prefix with the PolyLoc compression elbows, nothing here accepts tubing - read the option name rather than the part number.
Pick the thread pair first, then the sizes. Male x Female threads into a female port and presents a female port on the turn, and covers 3/4 in x 3/4 in, 3/4 in x 1 in and 1 in x 1 in. Female x Female is offered as 1 in x 1 in, for joining two male ends. Male x Male is offered as 1 in x 3/4 in, which reduces the line as it turns. Sizes are listed in the same order as the thread pair, so the 1 in x 3/4 in male x male option is a 1 in male end and a 3/4 in male end.
Specifications
| Thread sizes | 3/4 in and 1 in; each option pairs two of them as named |
| Thread configuration | Male x female on three options, female x female on one, male x male on one |
| Angle | 90 degrees on every option |
| Ends | Pipe thread on both ends of every option; no PE compression port anywhere on this page |
| Reading the option | First size goes with the first thread named, second with the second |
| Where it sits | Supply side, ahead of the PE laterals and their compression fittings |
Configurations
| Size | Thread Configuration | Part number |
|---|---|---|
| 1 in x 3/4 in | Male x Male | PLEM-1075 |
| 3/4 in x 3/4 in | Male x Female | PLEMF-07575 |
| 1 in x 1 in | Male x Female | PLEMF-11 |
| 1 in x 1 in | Female x Female | PLEFF-11 |
| 3/4 in x 1 in | Male x Female | PLEMF-0751 |
Key Features
- Turns threaded PVC or poly plumbing 90 degrees at a valve station, filter outlet or riser
- Male x female options go straight into a female port with no nipple in between
- The 1 in x 3/4 in male x male option reduces and turns in a single part
- Matches the 3/4 in and 1 in thread sizes Dramm uses for its transition nipples and compact ball valves
- Threaded on both ends, so it comes apart without cutting
Ideal Applications
- Turning a corner in a threaded PVC or poly header feeding a greenhouse bay
- Making up a valve station or manifold assembly ahead of the PE laterals
- Adapting between 3/4 in and 1 in threaded supply components
These are plain threaded elbows, not compression fittings: PolyLoc is Dramm's compression family for 16mm and 25mm PE, EasyLoc is the separate 16mm-only barb-and-nut family, PolyRail is the aluminum extrusion the tubing snaps into, and PipeLoc is a different Dramm line again for large PVC pipe.
