Dramm - Poly Pipe Thread Adaptor
Brand: Dramm
Poly Pipe Thread Adaptor
Thread adaptors step between the threaded plumbing that feeds a bench and whatever is on the other side of the joint. Dramm lists the male pipe thread to insert adaptor among the standard end fittings for a PolyRail or JetRain lateral, where it is what the poly actually lands on at the supply end of the run. The second part on this page is a straight threaded reducer with no barb on it at all. Read the Connection option before you order, because only one of the two takes tubing.
Pick by what is on each side of the joint. Choose 1/2 in MPT x 25mm Insert Barb when a threaded port has to feed polyethylene lateral line directly: the 1/2 in male pipe thread screws into the port and the stepped Insert Barb pushes into 25mm poly, the larger of the two lateral sizes Dramm runs. That end is a barb, so allow a clamp over the tube. Choose 1 in Male Thread x 3/4 in Female Thread when both sides of the joint are threaded and you are stepping a 1 in outlet down to a 3/4 in valve, fitting or lateral; it has no barbed end and will not accept tubing. If you are joining poly to poly rather than thread to poly, a barbed coupling is the fitting you want instead of either of these.
Specifications
| Connection | 1/2 in MPT x 25mm Insert Barb, or 1 in Male Thread x 3/4 in Female Thread |
| Supply side | Male pipe thread on both parts, 1/2 in or 1 in |
| Outlet side | 25mm insert barb on the 1/2 in MPT part; 3/4 in Female Thread on the 1 in part |
| Tubing compatibility | Dramm 25mm polyethylene lateral line, on the insert barb part only |
| Function | Adapting a threaded outlet onto poly lateral line, or reducing 1 in thread to 3/4 in |
Configurations
| Connection | Part number |
|---|---|

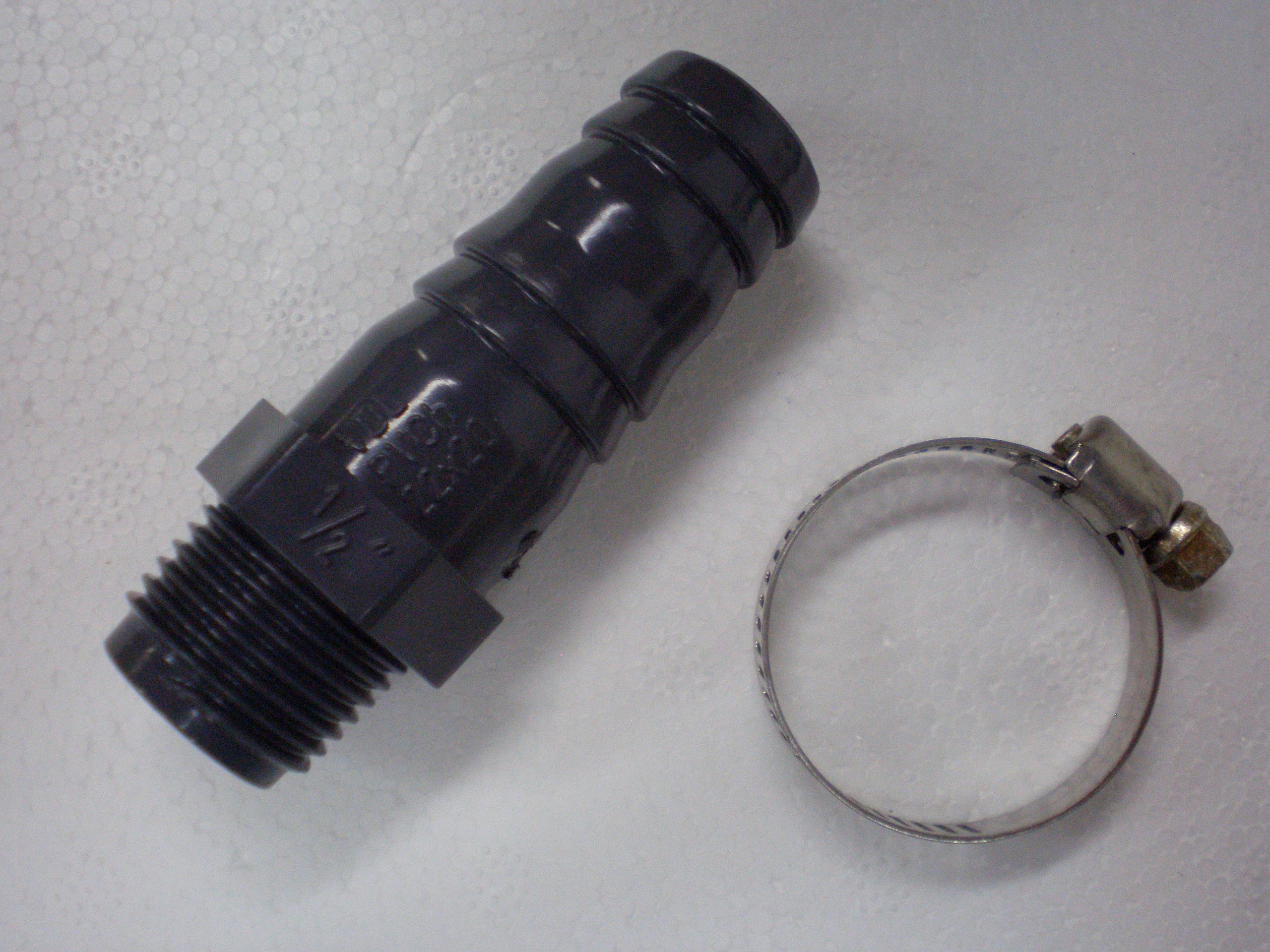

| 1/2 in MPT x 25mm Insert Barb | VMIA05025 |
| 1 in Male Thread x 3/4 in Female Thread | PLFMF-1075 |
Key Features
- 1/2 in MPT x 25mm Insert Barb takes a threaded port straight onto 25mm polyethylene lateral line.
- Dramm lists the male pipe thread to insert adaptor among the standard end fittings on a PolyRail or JetRain lateral.
- Stepped insert barb enters the tube bore and holds under a clamp.
- 1 in Male Thread x 3/4 in Female Thread reduces a 1 in threaded outlet to 3/4 in with no tubing connection involved.
- Both connections present a male thread on the supply side.
- Thread size is moulded into the body of the 1/2 in MPT adaptor, so it can be identified after it is installed.
Ideal Applications
- Connecting a valve station or manifold outlet to a 25mm poly lateral.
- Building the supply end of a PolyRail or JetRain lateral.
- Stepping a 1 in header takeoff down to a 3/4 in valve or lateral.
- Rebuilding a bench feed after a layout change.
- Adapting an existing threaded riser to poly during a system upgrade.
Pair these with Dramm 25mm PE tubing, PolyRail extrusion, valve stations and multi-outlet manifolds, and the threaded cap with washer that closes the outlets you do not use.
