Dramm - Misting Autovalve
Brand: Dramm
Misting Autovalve
A battery-powered cycle timer that mounts straight onto the valve, with no wiring and no controller panel. It irrigates in cycles during a window of time: you set the window start and end, how long each shot runs, and how long the gap between shots is, plus the days of the week it should work. Dramm's own worked example is a window of 10:00 to 14:00 with 5 minutes on and an hour off - water through the hottest part of the day and nothing outside it.
The choice is whether you want the timer head on its own or already fitted to a valve. Controller Only - No Valve is the timer head with its solenoid, for putting on a valve you already have in the ground. With 3/4 in Valve and With 1 in Valve are the same head factory-fitted to a valve body in that line size, and since the two valved versions carry the same price the decision between them is purely which line size you are plumbing into. On duration: the on time is set in seconds and minutes and the off interval in minutes and hours, so this covers short mist bursts as well as long cycle irrigation.
Specifications
| Control | Valve-mounted battery timer - no wiring and no external controller |
| Programming | Window start time, window end time, on duration, off interval, and day-of-week selection |
| Duration resolution | On time is set in seconds and minutes |
| Interval resolution | Off time is set in minutes and hours |
| Configuration by option | Controller head alone, or head factory-fitted to a 3/4 in or 1 in valve body |
| Power | Battery powered, no electrical hookup; a backup battery holds the program |
| Environment | Waterproof and weather resistant |
| Installation | Head can be swivelled to suit the position; the valve must go in with the flow arrow pointing downstream |
Configurations
| Configuration | Part number |
|---|---|

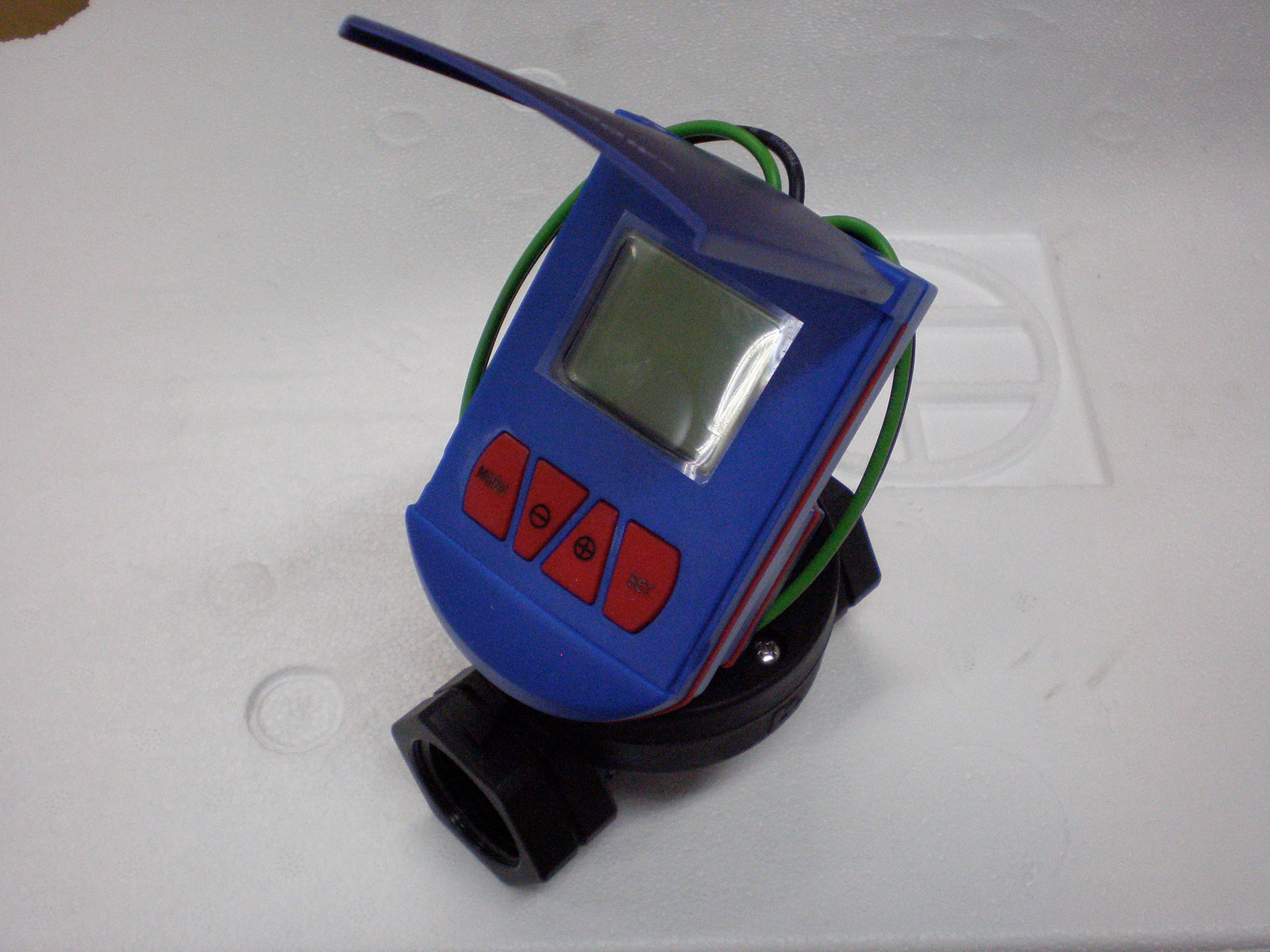

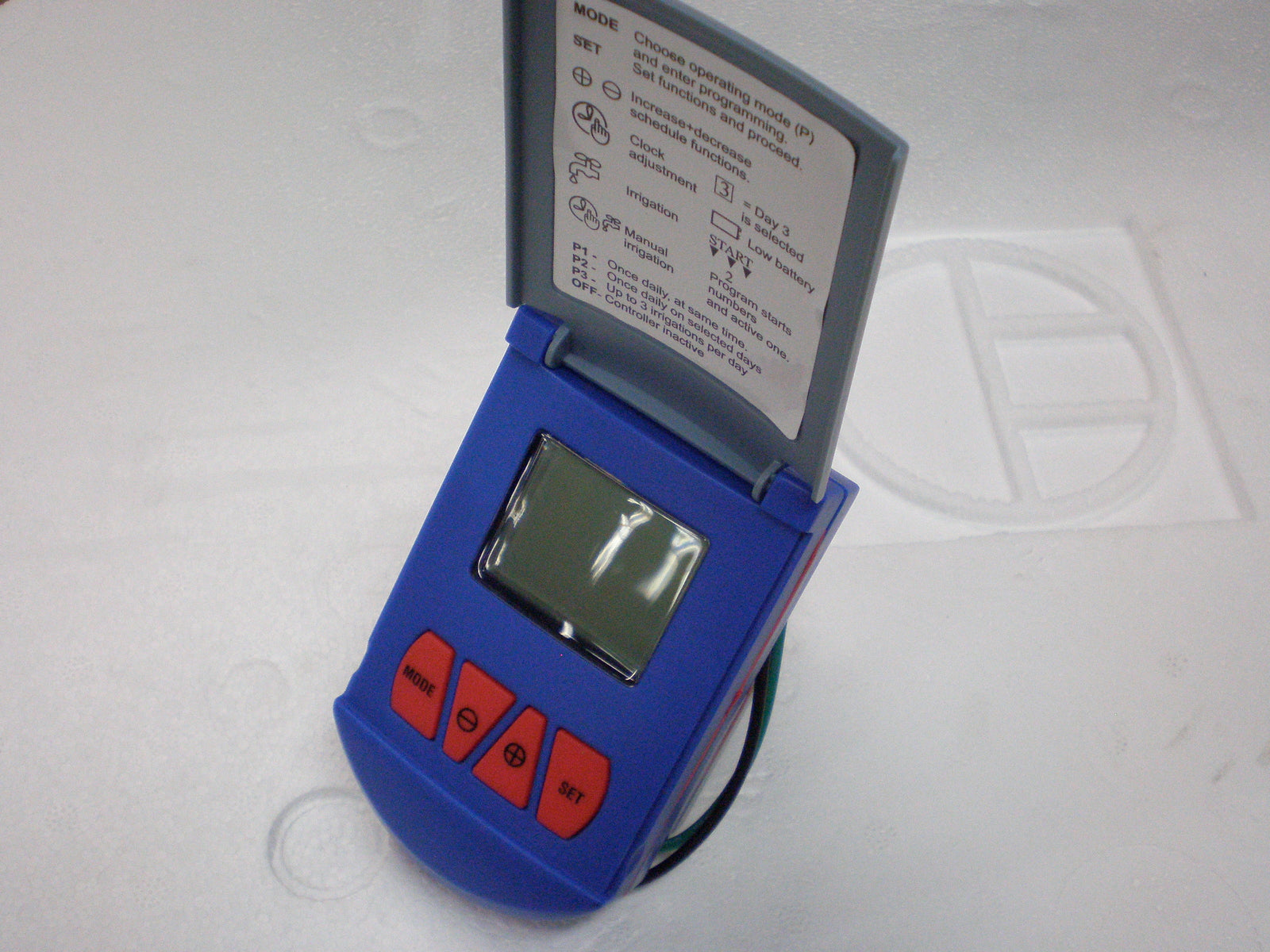

| Controller Only - No Valve | GVM |
| With 3/4 in Valve | GVMB075 |
| With 1 in Valve | GVMB100 |
Key Features
- No wiring at all - it goes where running control cable would cost more than the timer
- Cycle irrigation in a defined daily window rather than fixed start times
- On time in seconds and minutes covers short bursts for new plantings
- Day-of-week selection so the cycle can skip days
- Waterproof and weather resistant for outdoor use
- Head swivels on the valve so the display can face the aisle
Ideal Applications
- A single propagation bench where running control cable is not worth it
- Temporary or seasonal mist areas
- Outdoor cycle irrigation of new plantings
- Cycle irrigation for temperature control
Leave the battery in over winter - Dramm's manual warns that removing it lets the backup battery discharge and the program go with it.
