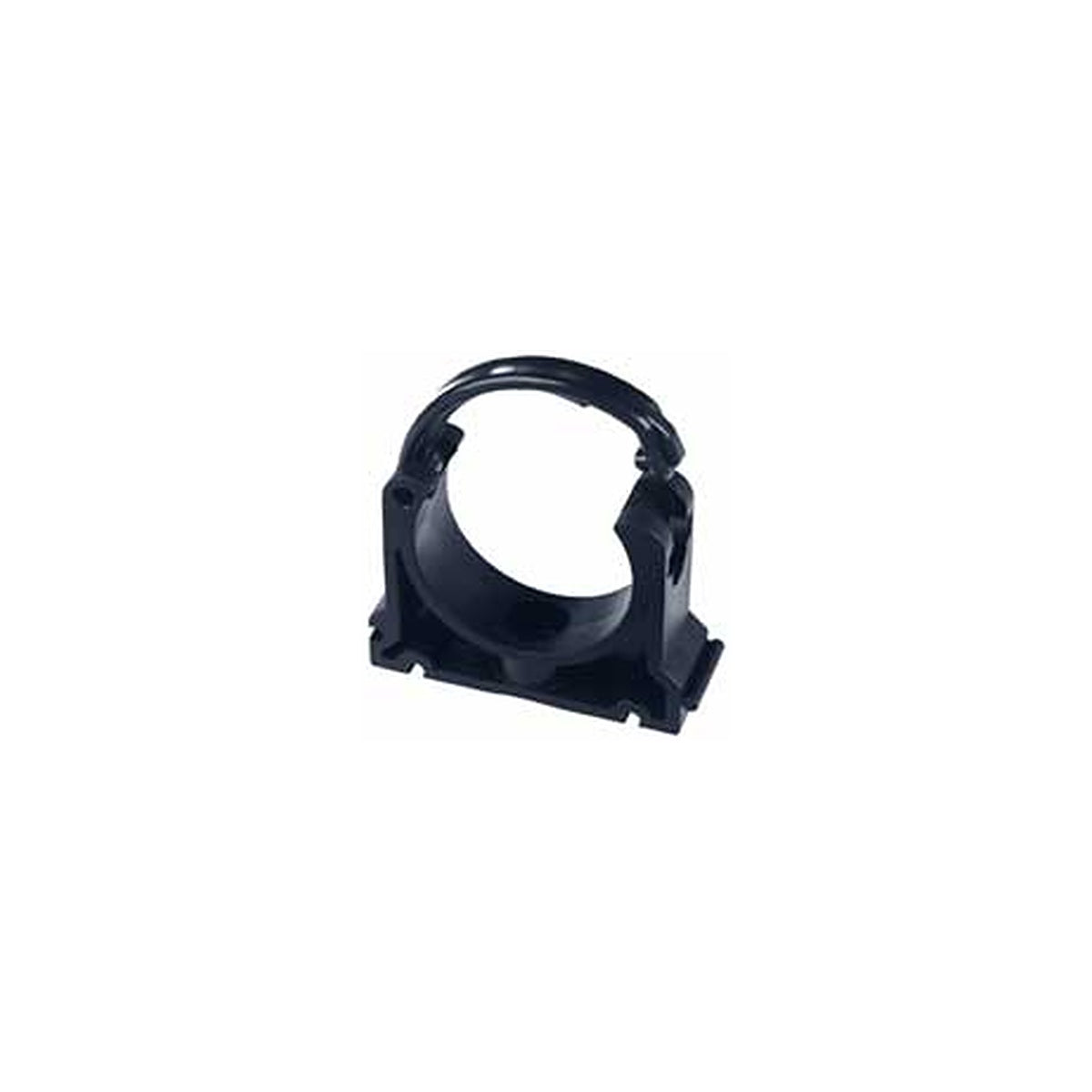

Dramm - Kwik Klamp Pipe Clamp

Brand: Dramm

Kwik Klamp Pipe Clamp

Dramm: 'The Kwik Klamp is a bracket with a hinged clip that can open and close. This handy device locks shut when closed, but can be opened to remove or replace pipelines.' It screws to a wall, post, truss or bench leg and snaps shut around PVC or poly supply pipe. It is a mount, not a fitting - nothing flows through it. Made in the Netherlands from chemical resistant polypropylene.

The only choice is the pipe it closes around, and it is an outside-diameter match: 1/2 in, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in, 2 in, 3 in and 4 in, plus one metric size at 32mm. The clamp body grows with the pipe, so an oversized clamp will not hold the line and an undersized one will not close - the 1/2 in clamp measures 1 x 0.625 x 1.125 in against 1.25 x 1.25 x 1.625 in on the 1-1/4 in. If the pipe has to stand off the mounting surface, order Kwik Spacers in the same size: each adds 3/4 in and they stack, so standoff is set in 3/4 in steps.

Specifications

Configurations

Key Features

• Locks shut around the pipe and still opens, so a line drops out for service without unbolting the bracket
• Chemical resistant polypropylene, for chemical supply and wash-down lines
• One range covers 1/2 in through 4 in pipe, plus a 32mm size
• Stacks with Kwik Spacers to set standoff in 3/4 in steps
• Listed by Dramm as a standard part of the PolyRail system

Ideal Applications

• Running PVC or poly supply mains along a greenhouse wall, post or truss
• Any pipe run that has to come apart periodically
• Mounting headers and valve-station plumbing that feeds PolyRail and PE laterals
• Livestock barn and wash-down plumbing where a chemical resistant clamp is wanted

The Kwik Klamp mounts pipe and does not join it: PolyLoc and EasyLoc are Dramm's fitting families for 16mm and 25mm PE tubing, PolyRail is the aluminum extrusion that tubing snaps into, and PipeLoc is an unrelated Dramm line for large PVC pipe.
