Dramm - JetRain Press-Fit Fittings and On/Off Valve

Brand: Dramm

JetRain Press-Fit Fittings and On/Off Valve

Four small press-fit pieces from the JetRain range, gathered on one page. A JetRain nozzle is built as a stack - inlet, check valve, optional valve, nozzle cone - and these are the parts that join, extend or adapt that stack. They are low-cost plumbing items, normally bought alongside nozzles or held as shop stock rather than specified on their own. None of them is a nozzle or a check valve by itself.

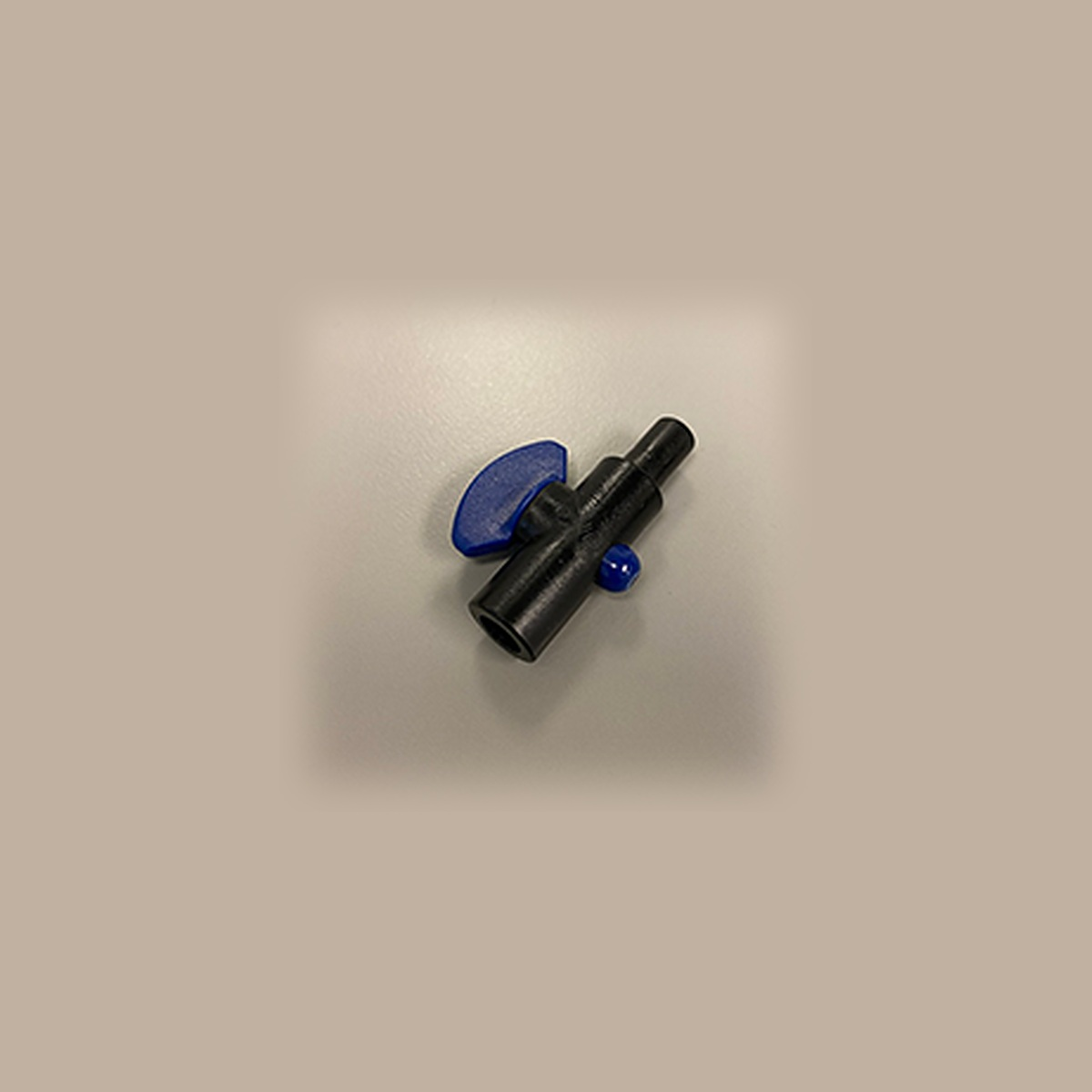

Pick by the job in front of you. The On/Off Valve - Press-Fit goes into the assembly between the check valve and the nozzle cone, so one nozzle can be turned off without isolating the rest of the line; it is what you want over a bench section that has been emptied. The Barb x Male Slip Connector puts a barbed tail on a press-fit stack, for joining to PE tubing or a leader tube. The Male Slip x Male Slip Connector joins two press-fit sockets to each other, which is how a stack gets extended or a valve gets dropped into the middle of one. The 3/8 inch Whitworth Thread x Female Slip Connector adapts the 3/8 inch Whitworth thread Dramm uses on its threaded nozzles to a press-fit socket, so threaded and press-fit parts can be mixed in the same assembly.

Specifications

Configurations

Key Features

• On/Off valve isolates a single nozzle without shutting down the run
• Press-fit throughout, so assemblies go together without glue or tools
• Barb and slip connectors let a nozzle stack be extended or rerouted to a leader tube
• Whitworth adapter bridges Dramm's threaded nozzle thread and the press-fit system
• Low enough in cost to hold a handful of each as install-crew stock

Ideal Applications

• Shutting off nozzles over an emptied bench section
• Building custom JetRain nozzle stacks
• Adapting threaded assemblies to press-fit components
• Joining nozzle assemblies to PE leader tube
• Install crew and maintenance shop stock

These build onto the JetRain Clean Out Check Valve and JetRain nozzle cones, both sold separately, and the 3/8 inch Whitworth thread they adapt is the same thread on Dramm's threaded JetFog nozzles.
