Dramm - JetRain 360 Degree Complete Nozzle with Clean Out Check Valve
Brand: Dramm
JetRain 360 Degree Complete Nozzle with Clean Out Check Valve
The complete JetRain nozzle: a color-coded, pin-style cone and Dramm's low pressure Clean Out Check Valve, supplied assembled and ready to install. It throws an even 360 degree pattern and is used for propagation mist and overhead irrigation over greenhouse benches, propagation beds and container ground beds. The check valve is rated 15-50 psi; it keeps the line from dripping on the crop between cycles and holds every nozzle on a run shut until the same pressure is reached, which is what keeps the first and last nozzle putting down the same water. Color sets the flow rate and the connection option sets how the nozzle joins the line.
Two things to pick. Color is the flow rate, measured by Dramm at 40 psi: White and Blue are both 0.48 gpm (1.8 L/min) with 7 ft maximum coverage, which Dramm classes as propagation mist and recommends alternating along a run for the most even coverage; Red is 0.79 gpm (3.0 L/min) with 11 ft maximum coverage for mist and irrigation; Yellow is 1.37 gpm (5.2 L/min) with 18 ft maximum coverage for heavier irrigation. Connection is how the nozzle attaches: Barbed punches into PE tubing, including tubing carried in Dramm PolyRail, while Threaded taps into PVC or aluminum pipe. Do the flow arithmetic before ordering - nozzle count times the color's gpm has to fit both the lateral and the supply, and moving from White or Blue to Yellow nearly triples the draw per nozzle.
Specifications
| Pattern | 360 degree, pin style |
| Flow rate at 40 psi | White 0.48 gpm (1.8 L/min); Blue 0.48 gpm (1.8 L/min); Red 0.79 gpm (3.0 L/min); Yellow 1.37 gpm (5.2 L/min) |
| Maximum coverage | White and Blue 7 ft; Red 11 ft; Yellow 18 ft |
| Nozzle spacing (Dramm chart) | White and Blue 24-40 in; Red 36-72 in; Yellow 48-72 in |
| Height above crop, nozzle upright | White and Blue 18-36 in; Red 24-72 in; Yellow 24-96 in |
| Height above crop, nozzle inverted | White and Blue 24-96 in; Red 24-120 in; Yellow 60-120 in |
| Check valve | Clean Out Check Valve, 15-50 psi, opens for cleaning |
| Inlet | Barbed for PE tubing, or threaded for PVC and aluminum pipe, by option |
| Supplied as | Nozzle cone and check valve, assembled |
Configurations
| Flow Rate - Color | Connection | Part number |
|---|---|---|
| White - 0.48 gpm | Barbed | JRLPC-B-WH |
| White - 0.48 gpm | Threaded | JRLPC-T-WH |
| Blue - 0.48 gpm | Barbed | JRLPC-B-BL |
| Blue - 0.48 gpm | Threaded | JRLPC-T-BL |
| Red - 0.79 gpm | Barbed | JRLPC-B-RD |

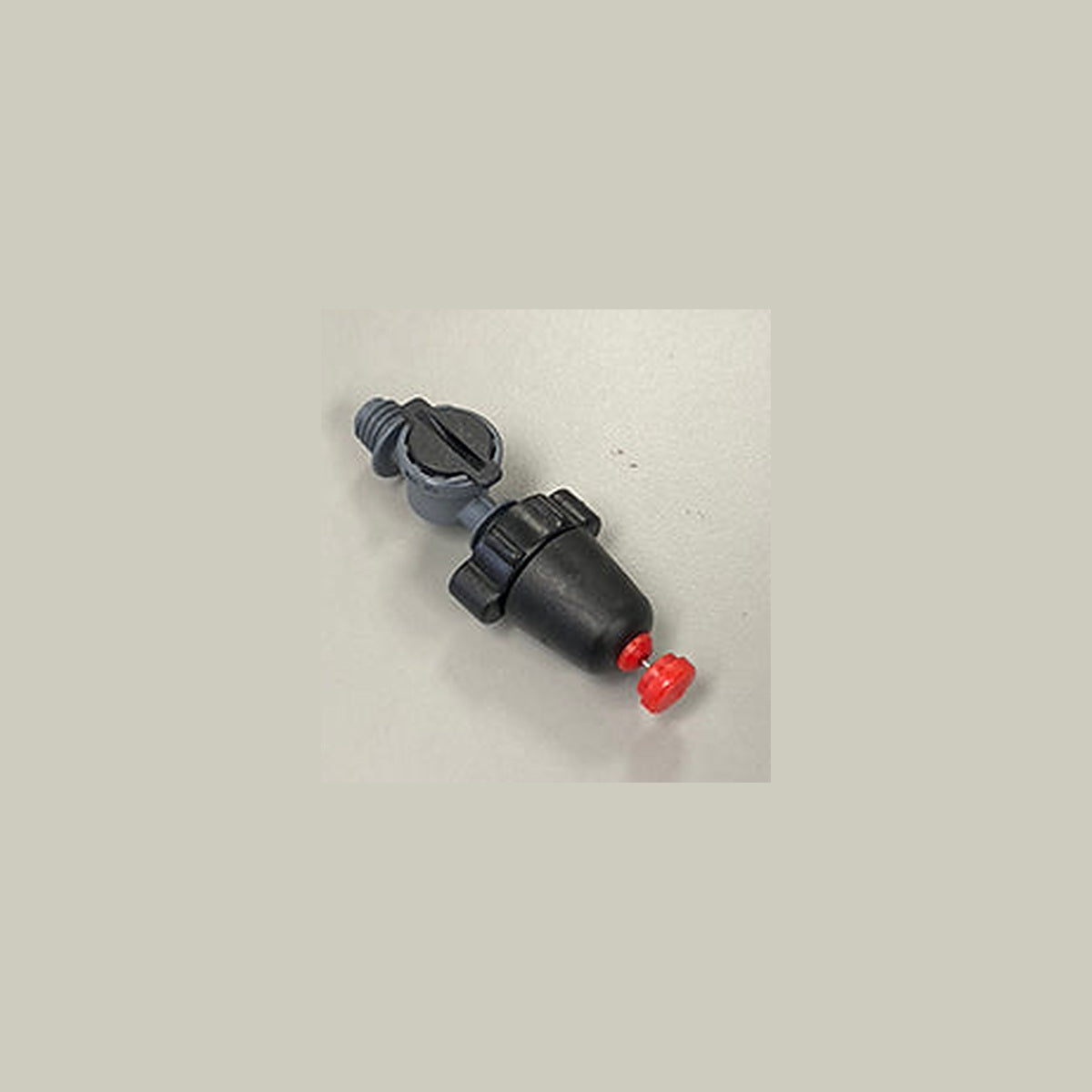

| Red - 0.79 gpm | Threaded | JRLPC-T-RD |

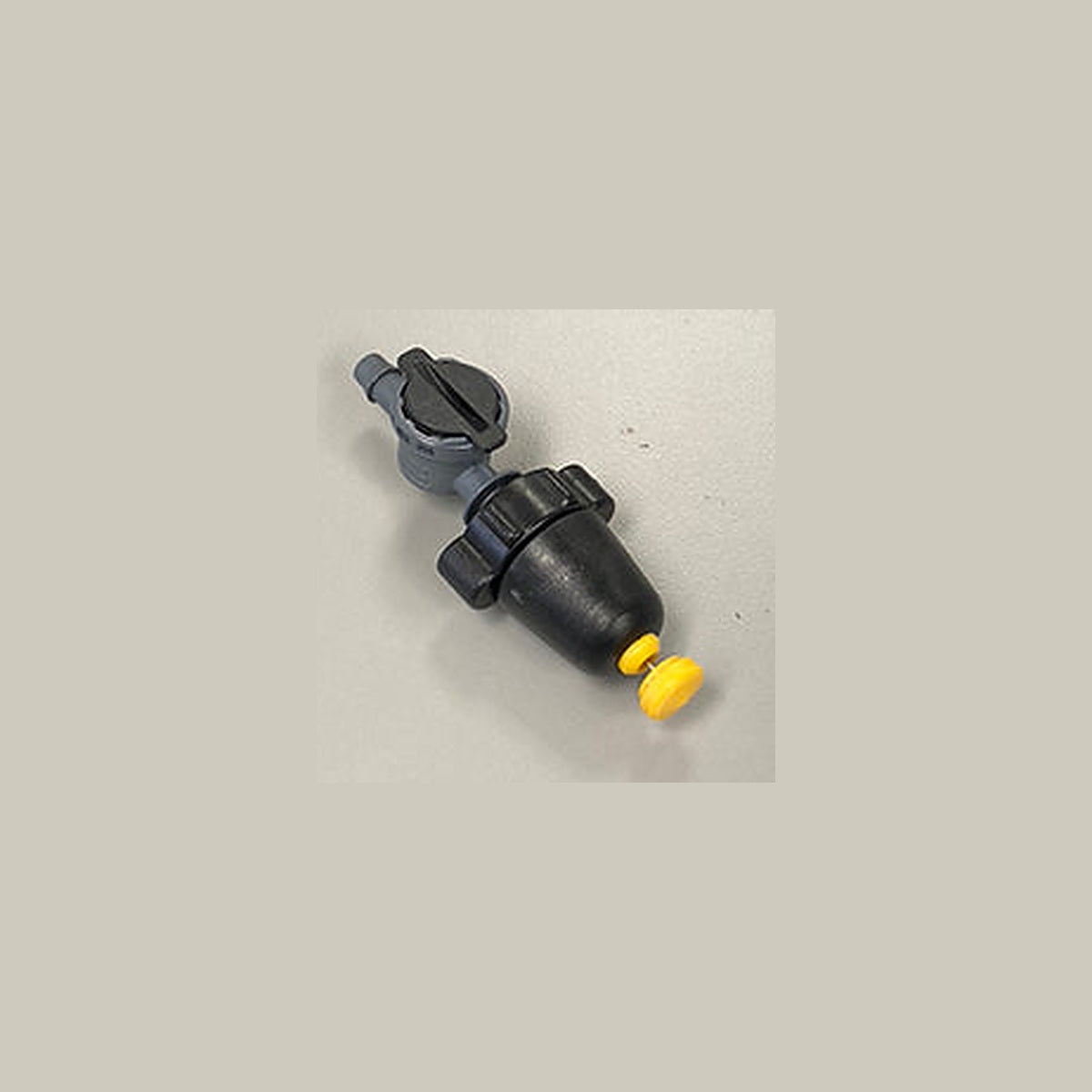

| Yellow - 1.37 gpm | Barbed | JRLPC-B-YL |
| Yellow - 1.37 gpm | Threaded | JRLPC-T-YL |
Key Features
- Even 360 degree pattern with no gap in the arc
- Clean Out Check Valve rated 15-50 psi stops the line dripping on the crop between cycles
- Every nozzle on the run opens at the same pressure, so coverage holds up end to end
- Check valve opens for cleaning instead of being scrapped when debris lodges under the diaphragm
- Color-coded cone makes the flow rate on an installed line readable from the aisle
- Deflector pin, cone and check valve are all separately replaceable
- Barbed and threaded inlets cover PE tubing, PVC and aluminum pipe
Ideal Applications
- Propagation mist benches
- Overhead irrigation of container crops
- Bench and overhead runs built on Dramm PolyRail
- Retrofitting misting lines in PVC or aluminum pipe
- Outdoor container pads and ground beds
The cone, the deflector pin and the Clean Out Check Valve are each sold separately for service, and the 180 degree JetRain nozzle is what Dramm's installation manual puts at either end of the same run so water is not thrown past the bench.
