Dramm - JetFog Nozzle Service Parts and Tools

Brand: Dramm

JetFog Nozzle Service Parts and Tools

The serviceable parts of a JetFog nozzle, plus the tools to get at them. JetFog nozzles are built to come apart: the tip assembly and the check valve diaphragm are both replaceable, so a plugged or dripping nozzle is a few minutes of bench work rather than a new nozzle. This page covers those wear parts, the press-fit manifolds that change a nozzle's outlet count, and the tools and stocking kit that make the job routine across a whole house.

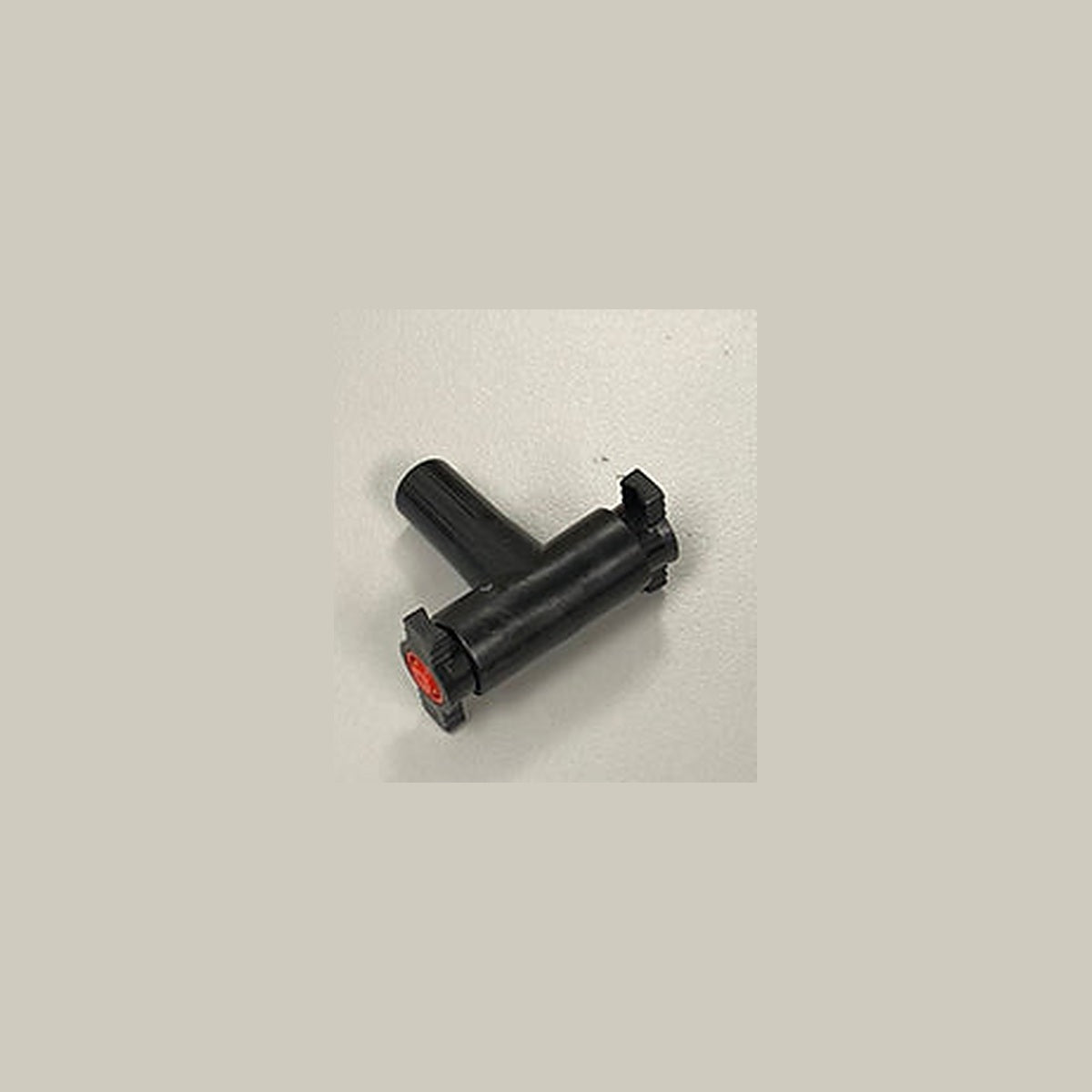

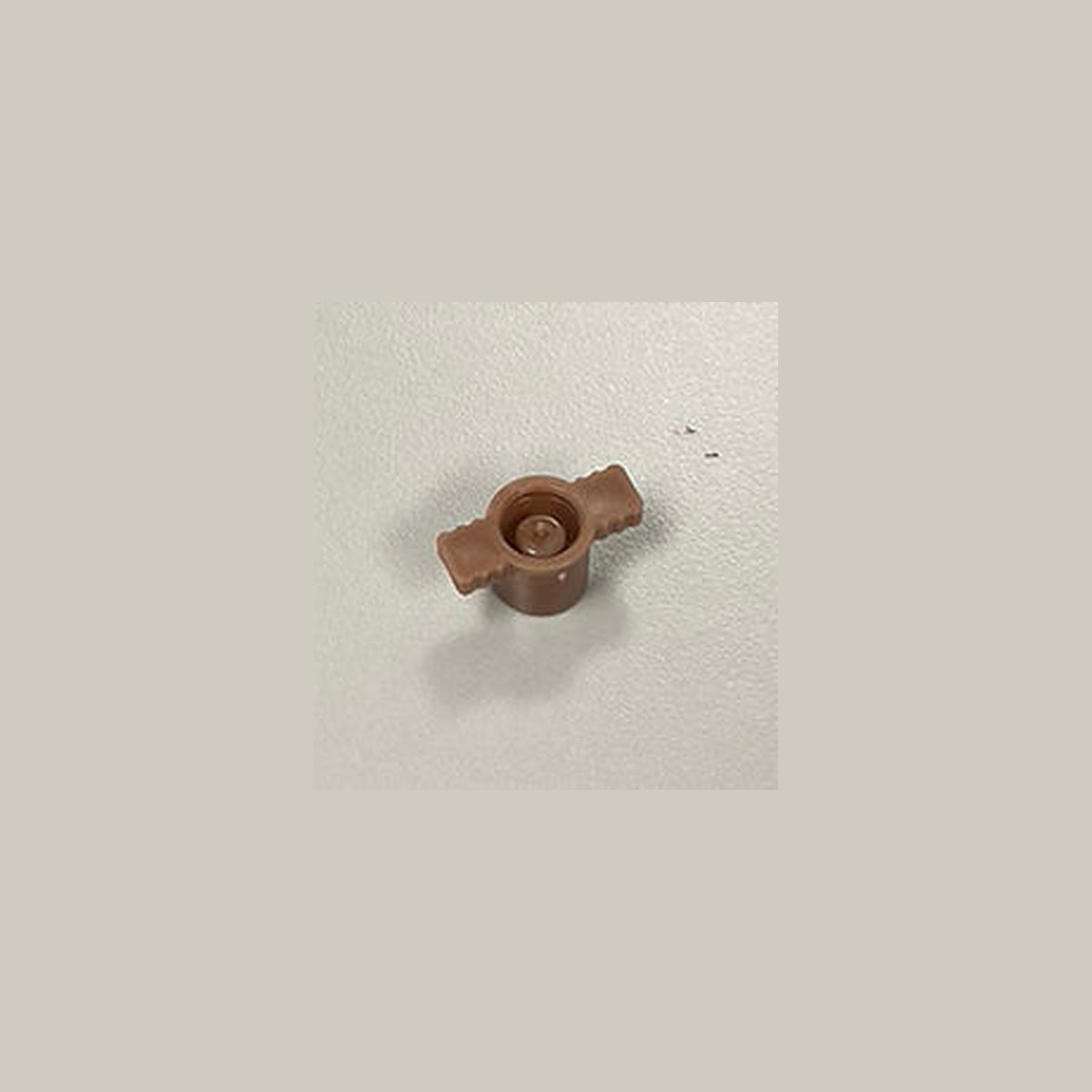

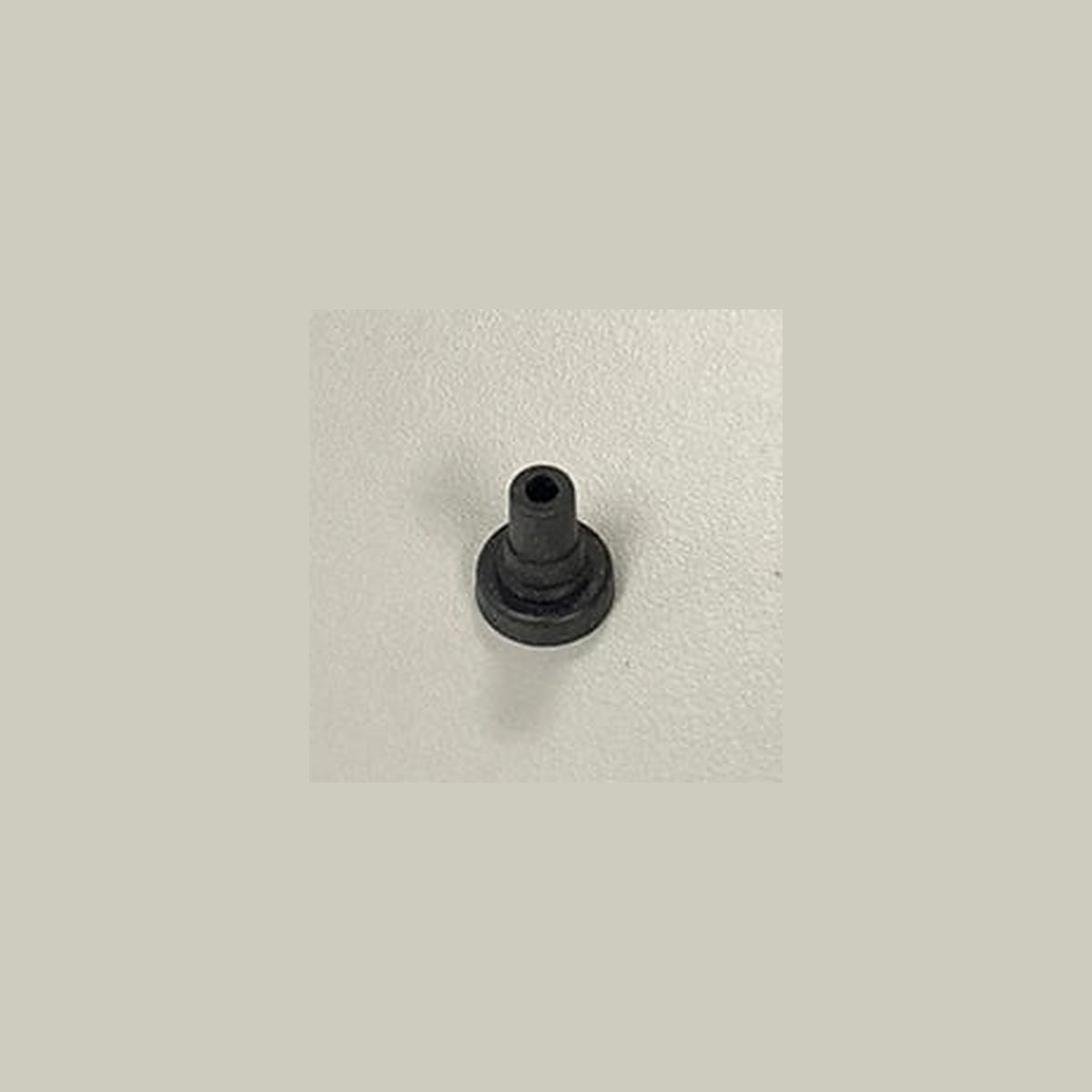

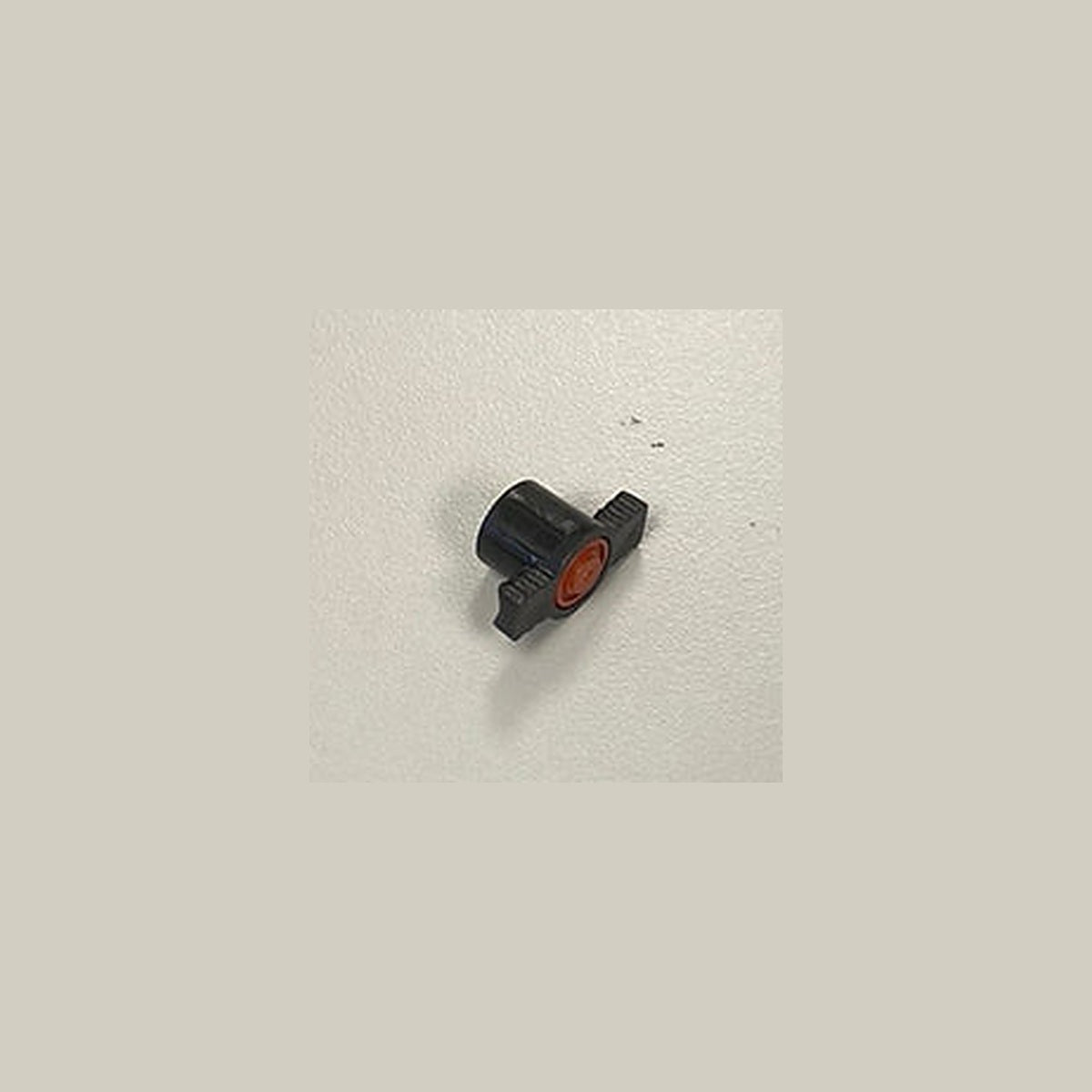

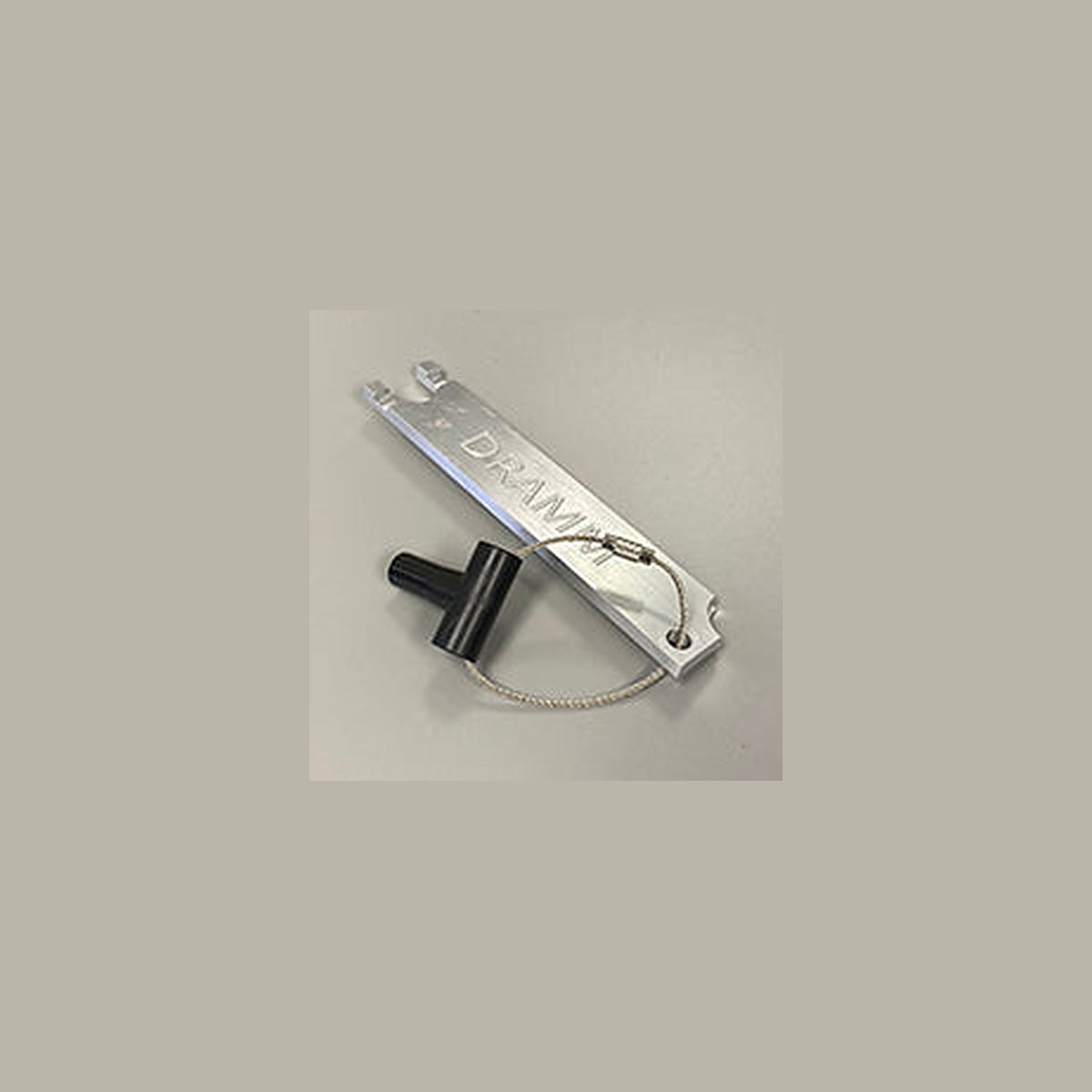

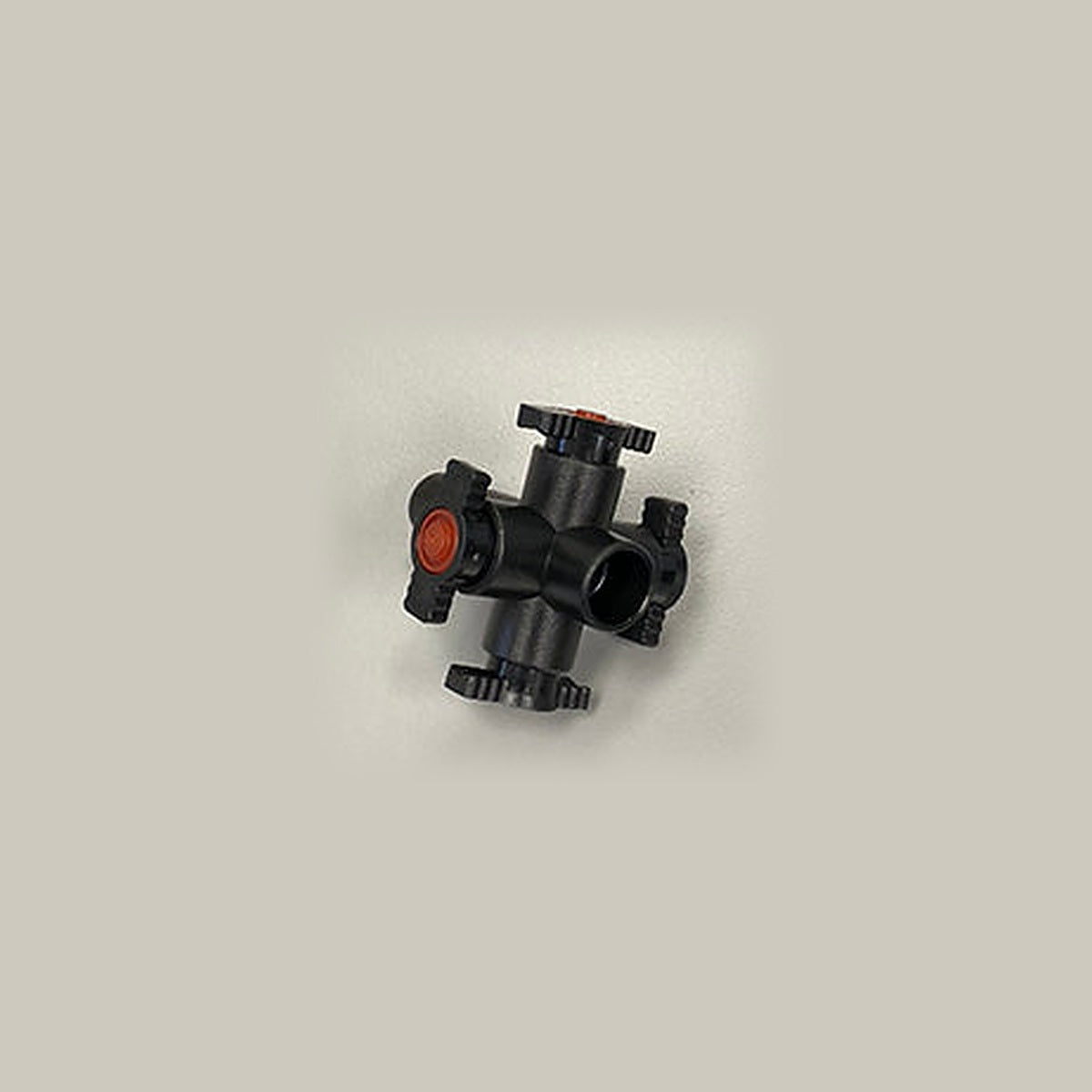

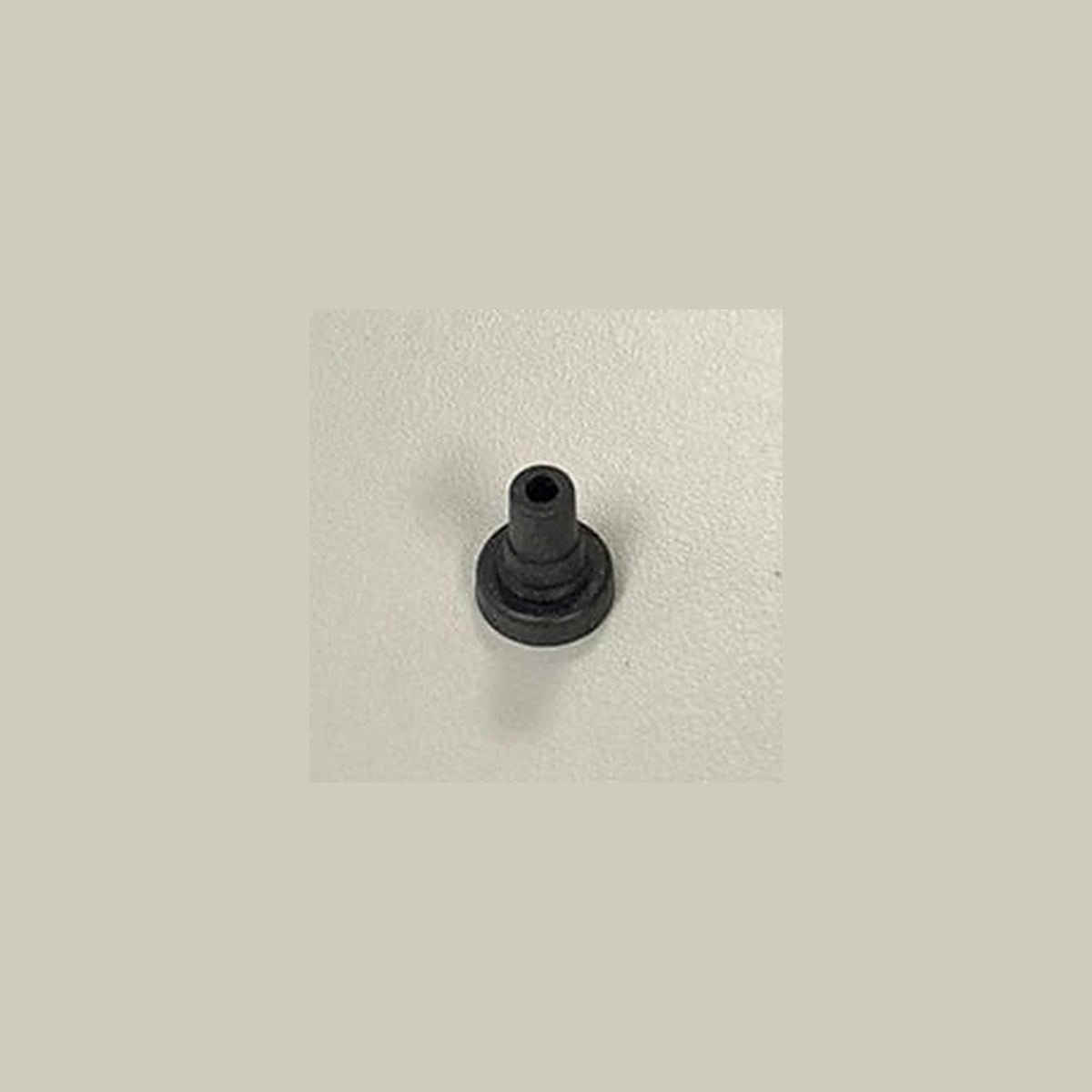

Pick by what has failed or what you are building. Replacement Nozzle Tip - Grey is the press-fit tip assembly, the part to change when a tip plugs or wears; Dramm's JetFog manual notes that the red tip is not a removable or replaceable item while the tip assembly is, so this is the tip you can actually service with. Blank Nozzle Tip is a solid press-fit plug that stops spray from an outlet you do not want running, which is how a multi-outlet body gets trimmed down without swapping the body. Silicone Check Valve Diaphragm is the anti-drip part: if a nozzle drips when the system is off, this is what has debris under it or has hardened. The 2-Way Tee Manifold and 4-Way Cross Manifold are press-fit manifolds that turn a single nozzle point into a two or four outlet one. Wrench and Seat Tool Combo Set is the pair of tools Dramm specifies for taking a nozzle apart and reseating a new diaphragm - without it the diaphragm is difficult to seat correctly. Nozzle Service Kit is the stocking option, and is the sensible buy if you are maintaining a house rather than fixing one nozzle.

Specifications

Configurations

Key Features

• Nozzle tip and check valve diaphragm are both replaceable, so nozzles are serviced rather than scrapped
• Blank tips shut off individual outlets on a multi-outlet body
• Press-fit manifolds change a nozzle's outlet count without changing the nozzle body
• Wrench and seat tool combo is the set Dramm specifies for reseating a diaphragm
• Service kit bundles the wear parts and tools for maintaining a whole house
• All press-fit, so servicing needs no glue and no cutting of the line

Ideal Applications

• Clearing and replacing plugged JetFog nozzle tips
• Fixing a JetFog nozzle that drips when the system is off
• Trimming the output of a multi-outlet nozzle by blanking outlets
• Converting a single JetFog point into a two or four outlet one
• Pre-season service of a fogging or barn cooling line
• Maintenance shop spares for a greenhouse or livestock building

These fit Dramm's JetFog low pressure fog nozzles, sold separately in one, two, four and five outlet bodies with barbed or threaded inlets.
