Dramm - Irrigation Assembly Fittings
Brand: Dramm
Irrigation Assembly Fittings
Three small assembly parts used when building nozzle drops and micro tubing runs on Dramm irrigation systems: a two piece white weight for a hanging nozzle drop, a 4mm x 7mm barbed connector for joining micro tube, and a swivel adaptor taking a 1 in swivel thread to 25mm insert tubing. They are build-list items rather than catalogue products. Dramm publishes a spec sheet for none of the three, and only the swivel adaptor is identifiable in Dramm's own literature.
These are unrelated parts sold together, so pick by the job rather than by comparison. The swivel adaptor is the one with a documented place in a Dramm system: it appears as a listed component in the PolyRail parts guide inside Dramm's JetFog and JetRain grower manuals, and its 25mm insert half matches Dramm's 25mm (3/4 in) PE irrigation tubing and the 25mm PolyRail extrusion, which is the higher flow, better supported of Dramm's two rail sizes. The hanging nozzle weight and the barbed connector are supplied as described - a white two piece weight and a 4mm x 7mm barb -. Dramm publishes no dimensions, materials or ratings for either, so nothing further is claimed here.
Specifications
| Swivel adaptor | 1 in swivel thread to 25mm insert; listed by Dramm as a PolyRail component in the JetFog and JetRain grower manuals |
| Tubing the swivel adaptor suits | Dramm PE irrigation tubing is supplied in 16mm and 25mm (3/4 in); 25mm is the higher flow, better supported PolyRail size |
| Hanging nozzle weight | White, two piece |
| Barbed connector | 4mm x 7mm barb |
| Published data | Dramm publishes no dimensions, material, thread standard or pressure rating for any of the three |
Configurations
| Part | Part number |
|---|---|

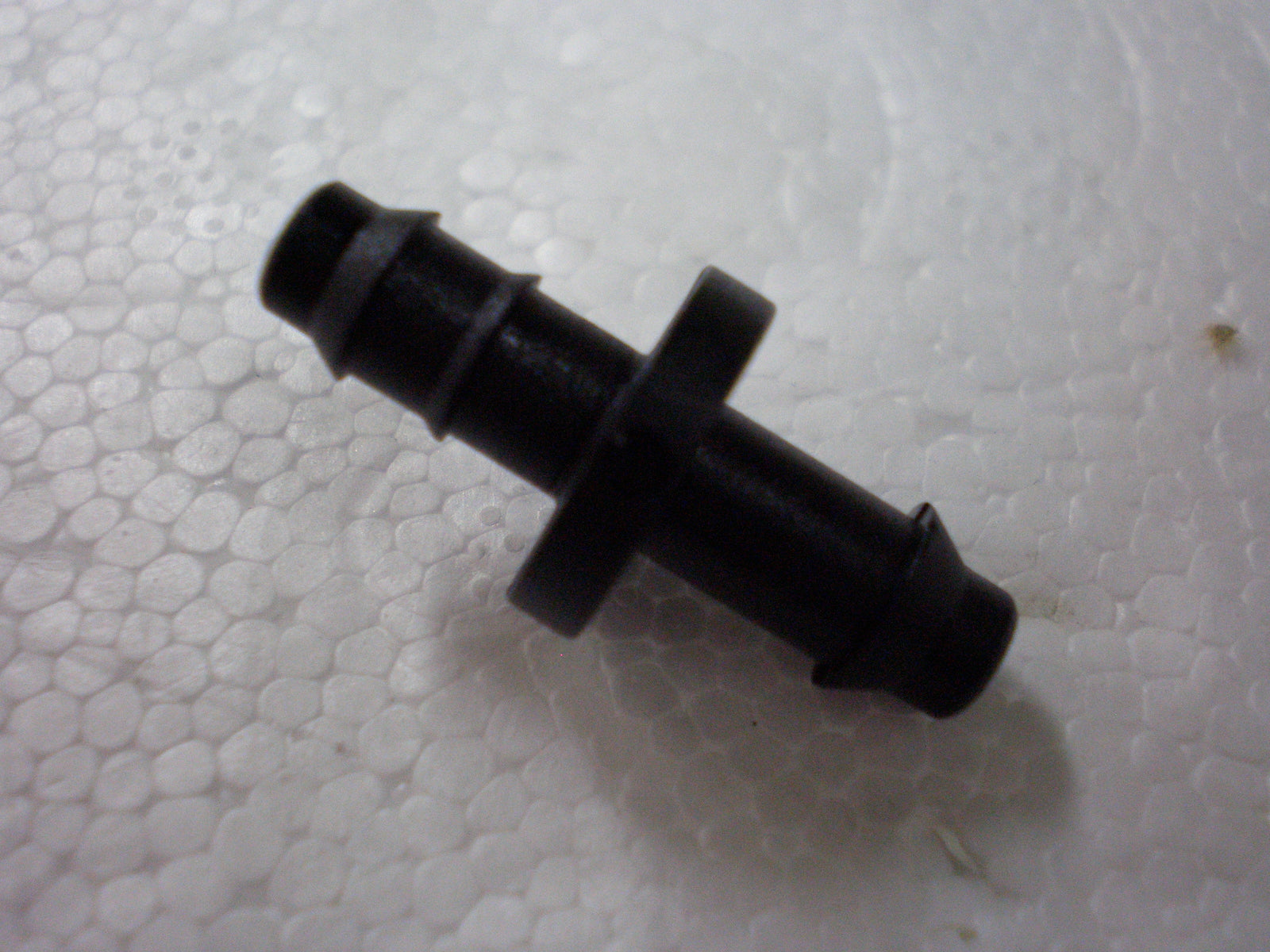

| Barbed Connector - 4mm x 7mm | 11897035 |
| Hanging Nozzle Weight - White - 2 Piece | 11897052 |

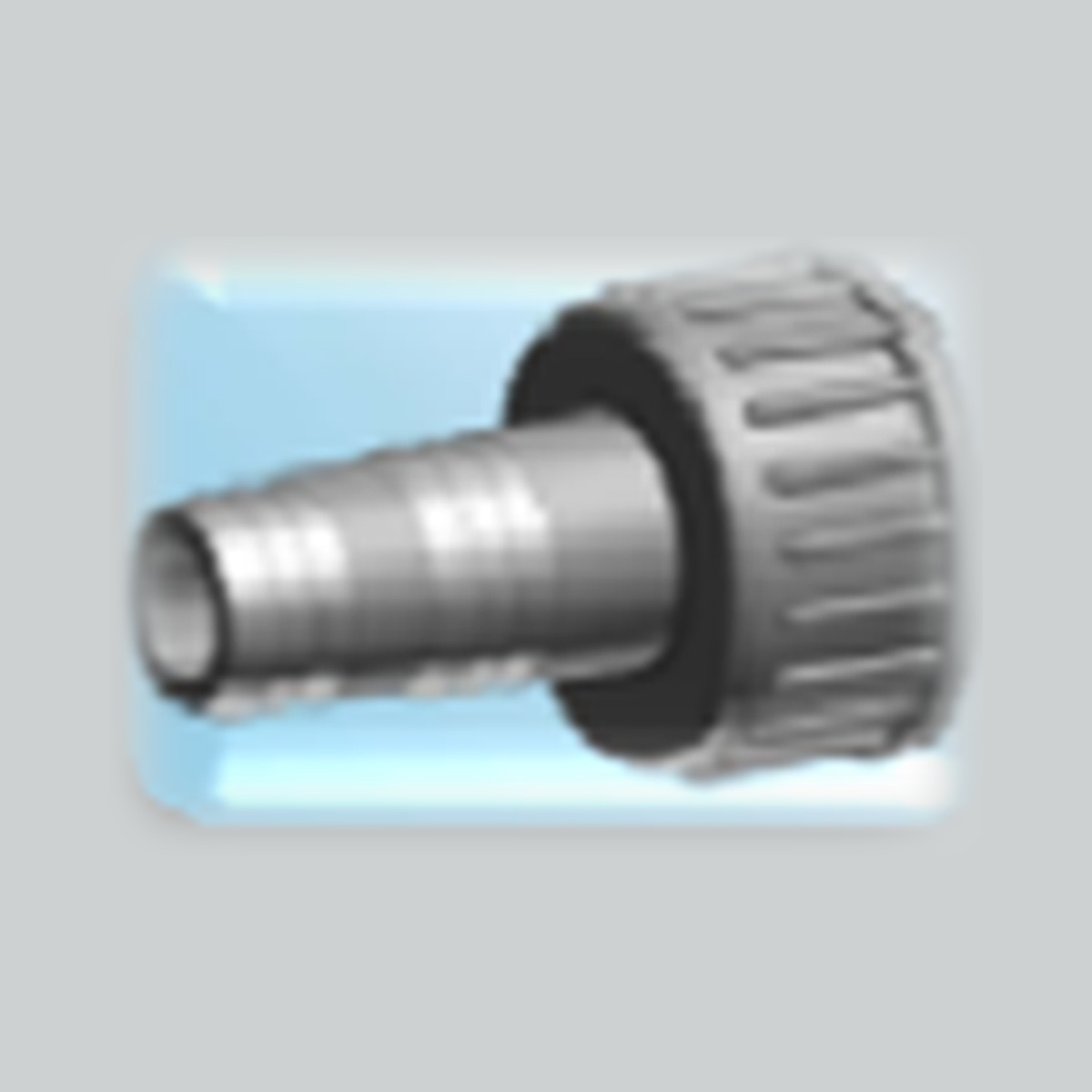

| Swivel Adaptor - 1 in Swivel x 25mm Insert | VSWIA125 |
Key Features
- The swivel adaptor is one of the components Dramm names in the PolyRail parts guide of its JetFog and JetRain grower manuals
- Its 25mm insert half matches Dramm's 25mm PE tubing and 25mm PolyRail extrusion
- The two piece weight and the barbed connector are stocked as individual service parts rather than only inside system kits
- Nothing is claimed here beyond what Dramm publishes, which for two of the three parts is the description and the size alone
Ideal Applications
- PolyRail installations running JetFog and JetRain nozzles
- Joining and extending micro tube runs
- Weighting a hanging nozzle drop
- Adapting 1 in swivel thread to 25mm insert tubing at the end of a line
Sits with Dramm's PolyRail extrusion, PE irrigation tubing and JetFog and JetRain nozzles; for a complete factory-built drop, Dramm's Pin-Perfect hanging nozzle assemblies are the published alternative.
